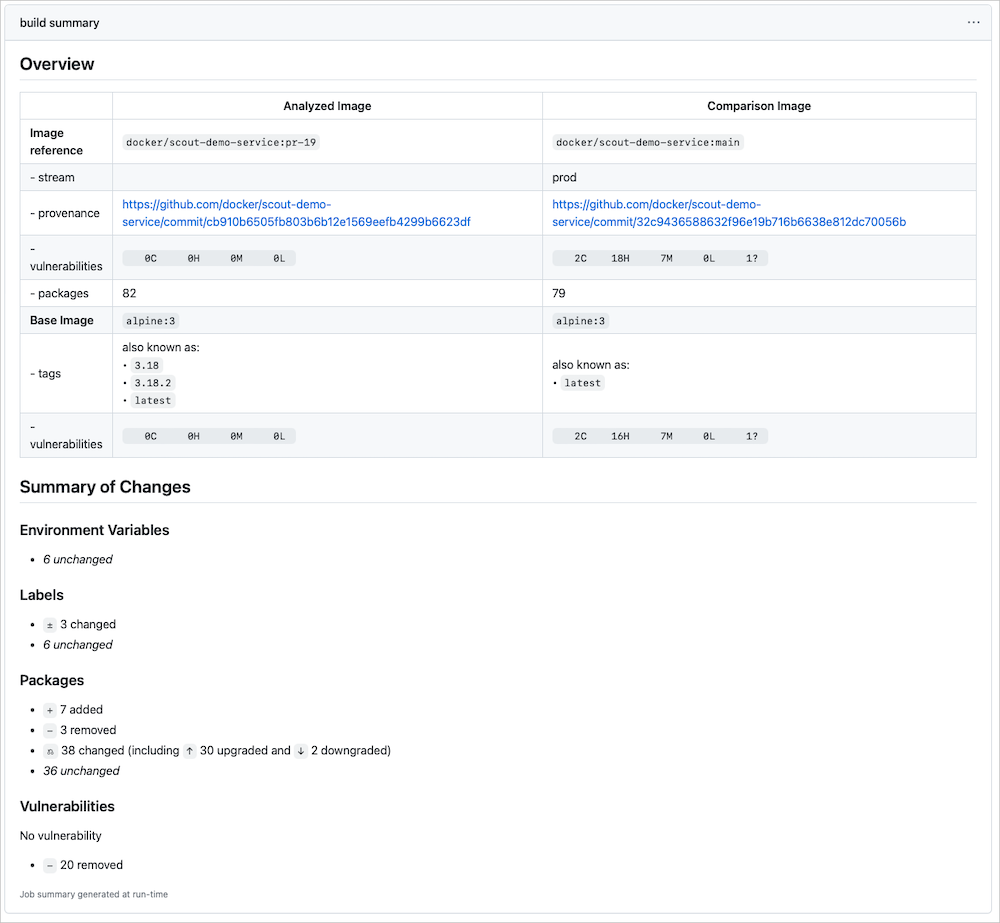

--- description: How to setup Docker Scout in continuous integration pipelines keywords: scanning, vulnerabilities, Hub, supply chain, security, ci, continuous integration, github actions, gitlab title: Using Docker Scout in continuous integration --- {% include scout-early-access.md %} You can analyze Docker images in continuous integration pipelines as you build them using a GitHub action or the Docker Scout CLI plugin. ## GitHub Actions You can use [the Docker Scout GitHub action](https://github.com/docker/scout-action) to run Docker Scout CLI commands as part of a workflow. The following example works in a repository containing a Docker image's definition and contents. Triggered by a pull request, the action builds the image and uses Docker Scout to compare the new version to the current published version. First, set up the rest of the workflow. There's a lot that's not specific to Docker Scout but needed to create the images to compare. For more details on those actions and using GitHub Actions with Docker in general, see [the GitHub Actions documentation](../build/ci/github-actions/index.md). Add the following to a GitHub Actions YAML file: {% raw %} ```yaml name: Docker on: push: tags: ["*"] branches: - "main" pull_request: branches: ["**"] env: # Use docker.io for Docker Hub if empty REGISTRY: docker.io IMAGE_NAME: ${{ github.repository }} SHA: ${{ github.event.pull_request.head.sha || github.event.after }} jobs: build: runs-on: ubuntu-latest permissions: contents: read packages: write ``` {% endraw %} This sets up the workflow to run on pull requests and pushes to the `main` branch, and sets up environment variables available to all workflow steps. It then defines a job called `build` that runs on the latest Ubuntu image and sets the permissions available to the job. Add the following to the YAML file: {% raw %} ```yaml steps: - name: Checkout repository uses: actions/checkout@v3 with: ref: ${{ env.SHA }} - name: Setup Docker buildx uses: docker/setup-buildx-action@v2.5.0 # Login against a Docker registry except on PR # https://github.com/docker/login-action - name: Log into registry ${{ env.REGISTRY }} uses: docker/login-action@v2.1.0 with: registry: ${{ env.REGISTRY }} username: ${{ secrets.DOCKER_USER }} password: ${{ secrets.DOCKER_PAT }} # Extract metadata (tags, labels) for Docker # https://github.com/docker/metadata-action - name: Extract Docker metadata id: meta uses: docker/metadata-action@v4.4.0 with: images: ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }} labels: | org.opencontainers.image.revision=${{ env.SHA }} tags: | type=edge,branch=$repo.default_branch type=semver,pattern=v{{version}} type=sha,prefix=,suffix=,format=short ``` {% endraw %} This creates workflow steps to checkout the repository, set up Docker buildx, log into the Docker registry, and extract metadata from Git reference and GitHub events to use in later steps. Add the following to the YAML file: {% raw %} ```yaml # Build and push Docker image with Buildx (don't push on PR) # https://github.com/docker/build-push-action - name: Build and push Docker image id: build-and-push uses: docker/build-push-action@v4.0.0 with: context: . push: true tags: ${{ steps.meta.outputs.tags }} labels: ${{ steps.meta.outputs.labels }} cache-from: type=gha cache-to: type=gha,mode=max ``` {% endraw %} This uses the extracted metadata from the previous step to build and push the Docker image to Docker Hub. GitHub Actions skips this step on pull requests and only runs when a pull request is merged. Add the following to the YAML file: {% raw %} ```yaml - name: Docker Scout id: docker-scout if: ${{ github.event_name == 'pull_request' }} uses: docker/scout-action@dd36f5b0295baffa006aa6623371f226cc03e506 with: command: compare image: ${{ steps.meta.outputs.tags }} to: ${{ env.REGISTRY }}/${{ env.IMAGE_NAME }}:edge ignore-unchanged: true only-severities: critical,high token: ${{ secrets.DOCKER_PAT }} ``` {% endraw %} This final step uses the Docker Scout CLI to run [the `compare` command](../engine/reference/commandline/scout_compare.md), comparing the new image to the published one. It only shows critical or high-severity vulnerabilities and ignores vulnerabilities that haven't changed since the last analysis. The GitHub Action outputs the comparison results as a table and a summary in the action output. ![A screenshot showing the results of Docker Scout output in a GitHub Action](./images/gha-output.png) ## GitLab The following examples runs in GitLab CI in a repository containing a Docker image's definition and contents. Triggered by a commit, the pipeline builds the image. If the commit was to the default branch, it uses Docker Scout to get a CVE report. If the commit was to a different branch, it uses Docker Scout to compare the new version to the current published version. First, set up the rest of the workflow. There's a lot that's not specific to Docker Scout but needed to create the images to compare. Add the following to a _.gitlab-ci.yml_ file at the root of your repository. ```yaml docker-build: image: docker:latest stage: build services: - docker:dind before_script: - docker login -u "$CI_REGISTRY_USER" -p "$CI_REGISTRY_PASSWORD" $CI_REGISTRY # Install curl and the Docker Scout CLI - | apk add --update curl curl -sSfL https://raw.githubusercontent.com/docker/scout-cli/main/install.sh | sh -s -- apk del curl rm -rf /var/cache/apk/* # Login to Docker Hub required for Docker Scout CLI - docker login -u "$DOCKER_HUB_USER" -p "$DOCKER_HUB_PAT" ``` This sets up the workflow to build Docker images with GitLab's "Docker-in-Docker" mode to run Docker inside a container. It then downloads curl and the Docker CLI and logs into the GitLab CI registry and the Docker registry using environment variables defined in your repository's settings. Add the following to the YAML file: {% raw %} ```yaml script: - | if [[ "$CI_COMMIT_BRANCH" == "$CI_DEFAULT_BRANCH" ]]; then tag="" echo "Running on default branch '$CI_DEFAULT_BRANCH': tag = 'latest'" else tag=":$CI_COMMIT_REF_SLUG" echo "Running on branch '$CI_COMMIT_BRANCH': tag = $tag" fi - docker build --pull -t "$CI_REGISTRY_IMAGE${tag}" . - | if [[ "$CI_COMMIT_BRANCH" == "$CI_DEFAULT_BRANCH" ]]; then # Get a CVE report for the built image and fail the pipeline when critical or high CVEs are detected docker scout cves "$CI_REGISTRY_IMAGE${tag}" --exit-code --only-severity critical,high else # Compare image from branch with latest image from the default branch and fail if new critical or high CVEs are detected docker scout compare "$CI_REGISTRY_IMAGE${tag}" --to "$CI_REGISTRY_IMAGE:latest" --exit-code --only-severity critical,high --ignore-unchanged fi - docker push "$CI_REGISTRY_IMAGE${tag}" ``` {% endraw %} This creates the flow mentioned previously. If the commit was to the default branch, Docker Scout generates a CVE report. If the commit was to a different branch, Docker Scout compares the new version to the current published version. It only shows critical or high-severity vulnerabilities and ignores vulnerabilities that haven't changed since the last analysis. Add the following to the YAML file: ```yaml rules: - if: $CI_COMMIT_BRANCH exists: - Dockerfile ``` These final lines ensure that the pipeline only runs if the commit contains a Dockerfile and if the commit was to the CI branch. _The following is a video walkthrough of the process of setting up the workflow with GitLab._
## Microsoft Azure DevOps Pipelines The following examples runs in an Azure DevOps-connected repository containing a Docker image's definition and contents. Triggered by a commit to the main branch, the pipeline builds the image and uses Docker Scout to create a CVE report. First, set up the rest of the workflow and set up the variables available to all pipeline steps. Add the following to an _azure-pipelines.yml_ file: ```yaml trigger: - main resources: - repo: self variables: tag: "$(Build.BuildId)" image: "vonwig/nodejs-service" ``` This sets up the workflow to use a particular container image for the application and tag each new image build with the build ID. Add the following to the YAML file: ```yaml stages: - stage: Build displayName: Build image jobs: - job: Build displayName: Build pool: vmImage: ubuntu-latest steps: - task: Docker@2 displayName: Build an image inputs: command: build dockerfile: "$(Build.SourcesDirectory)/Dockerfile" repository: $(image) tags: | $(tag) - task: CmdLine@2 displayName: Find CVEs on image inputs: script: | # Install the Docker Scout CLI curl -sSfL https://raw.githubusercontent.com/docker/scout-cli/main/install.sh | sh -s -- # Login to Docker Hub required for Docker Scout CLI docker login -u $(DOCKER_HUB_USER) -p $(DOCKER_HUB_PAT) # Get a CVE report for the built image and fail the pipeline when critical or high CVEs are detected docker scout cves $(image):$(tag) --exit-code --only-severity critical,high ``` This creates the flow mentioned previously. It builds and tags the image using the checked-out Dockerfile, downloads the Docker Scout CLI, and then runs the `cves` command against the new tag to generate a CVE report. It only shows critical or high-severity vulnerabilities. ## CircleCI The following examples runs when triggered in CircleCI. When triggered, it checks out the "docker/scout-demo-service:latest" image and tag and then uses Docker Scout to create a CVE report. Add the following to a _.circleci/config.yml_ file. First, set up the rest of the workflow. Add the following to the YAML file: ```yaml version: 2.1 jobs: build: docker: - image: cimg/base:stable environment: IMAGE_TAG: docker/scout-demo-service:latest ``` This defines the container image the workflow uses and an environment variable for the image. Add the following to the YAML file to define the steps for the workflow: ```yaml steps: # Checkout the repository files - checkout # Set up a separate Docker environment to run `docker` commands in - setup_remote_docker: version: 20.10.24 # Install Docker Scout and login to Docker Hub - run: name: Install Docker Scout command: | env curl -sSfL https://raw.githubusercontent.com/docker/scout-cli/main/install.sh | sh -s -- -b /home/circleci/bin echo $DOCKER_HUB_PAT | docker login -u $DOCKER_HUB_USER --password-stdin # Build the Docker image - run: name: Build Docker image command: docker build -t $IMAGE_TAG . # Run Docker Scout - run: name: Scan image for CVEs command: | docker-scout cves $IMAGE_TAG --exit-code --only-severity critical,high ``` This checks out the repository files and then sets up a separate Docker environment to run commands in. It installs Docker Scout, logs into Docker Hub, builds the Docker image, and then runs Docker Scout to generate a CVE report. It only shows critical or high-severity vulnerabilities. Finally, add a name for the workflow and the workflow's jobs: ```yaml workflows: build-docker-image: jobs: - build ``` ## Jenkins You can add the following stage and steps definition to a `Jenkinsfile` to run Docker Scout as part of a Jenkins pipeline. The pipeline needs two secrets defined to authenticate with Docker Hub: `DOCKER_HUB_USER` and `DOCKER_HUB_PAT` It also needs an environment variable defined for the image and tag. ```groovy … stage('Analyze image') { steps { // Install Docker Scout sh 'curl -sSfL https://raw.githubusercontent.com/docker/scout-cli/main/install.sh | sh -s -- -b /usr/local/bin' // Log into Docker Hub sh 'echo $DOCKER_HUB_PAT | docker login -u $DOCKER_HUB_USER --password-stdin' // Analyze and fail on critical or high vulnerabilities sh 'docker-scout cves $IMAGE_TAG --exit-code --only-serverity critical,high' } } ``` This installs Docker Scout, logs into Docker Hub, and then runs Docker Scout to generate a CVE report for an image and tag. It only shows critical or high-severity vulnerabilities.
