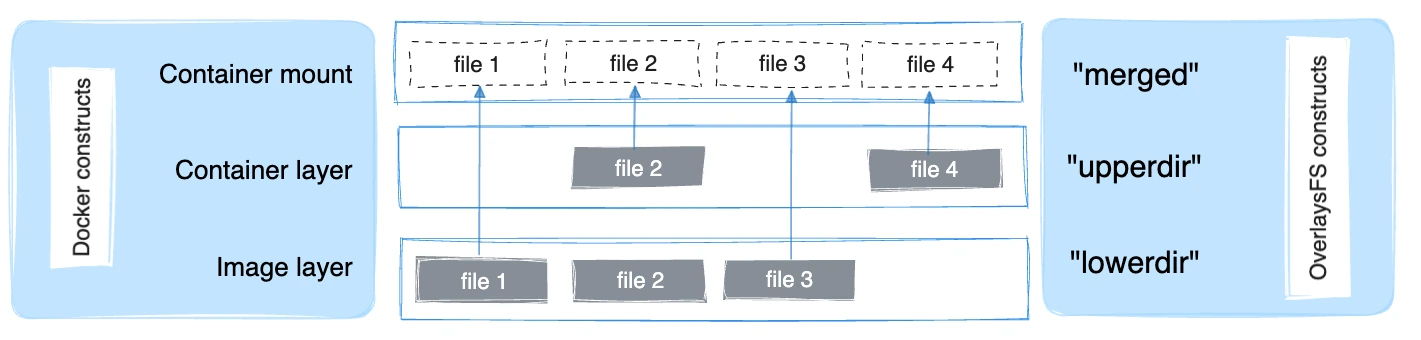

--- description: Learn how to optimize your use of OverlayFS driver. keywords: container, storage, driver, OverlayFS, overlay2, overlay title: OverlayFS storage driver aliases: - /storage/storagedriver/overlayfs-driver/ --- OverlayFS is a union filesystem. This page refers to the Linux kernel driver as `OverlayFS` and to the Docker storage driver as `overlay2`. > [!NOTE] > > For `fuse-overlayfs` driver, check [Rootless mode documentation](/manuals/engine/security/rootless.md). ## Prerequisites OverlayFS is the recommended storage driver, and supported if you meet the following prerequisites: - Version 4.0 or higher of the Linux kernel, or RHEL or CentOS using version 3.10.0-514 of the kernel or higher. - The `overlay2` driver is supported on `xfs` backing filesystems, but only with `d_type=true` enabled. Use `xfs_info` to verify that the `ftype` option is set to `1`. To format an `xfs` filesystem correctly, use the flag `-n ftype=1`. - Changing the storage driver makes existing containers and images inaccessible on the local system. Use `docker save` to save any images you have built or push them to Docker Hub or a private registry before changing the storage driver, so that you don't need to re-create them later. ## Configure Docker with the `overlay2` storage driver Before following this procedure, you must first meet all the [prerequisites](#prerequisites). The following steps outline how to configure the `overlay2` storage driver. 1. Stop Docker. ```console $ sudo systemctl stop docker ``` 2. Copy the contents of `/var/lib/docker` to a temporary location. ```console $ cp -au /var/lib/docker /var/lib/docker.bk ``` 3. If you want to use a separate backing filesystem from the one used by `/var/lib/`, format the filesystem and mount it into `/var/lib/docker`. Make sure to add this mount to `/etc/fstab` to make it permanent. 4. Edit `/etc/docker/daemon.json`. If it doesn't yet exist, create it. Assuming that the file was empty, add the following contents. ```json { "storage-driver": "overlay2" } ``` Docker doesn't start if the `daemon.json` file contains invalid JSON. 5. Start Docker. ```console $ sudo systemctl start docker ``` 6. Verify that the daemon is using the `overlay2` storage driver. Use the `docker info` command and look for `Storage Driver` and `Backing filesystem`. ```console $ docker info Containers: 0 Images: 0 Storage Driver: overlay2 Backing Filesystem: xfs Supports d_type: true Native Overlay Diff: true <...> ``` Docker is now using the `overlay2` storage driver and has automatically created the overlay mount with the required `lowerdir`, `upperdir`, `merged`, and `workdir` constructs. Continue reading for details about how OverlayFS works within your Docker containers, as well as performance advice and information about limitations of its compatibility with different backing filesystems. ## How the `overlay2` driver works OverlayFS layers two directories on a single Linux host and presents them as a single directory. These directories are called layers, and the unification process is referred to as a union mount. OverlayFS refers to the lower directory as `lowerdir` and the upper directory as `upperdir`. The unified view is exposed through its own directory called `merged`. The `overlay2` driver natively supports up to 128 lower OverlayFS layers. This capability provides better performance for layer-related Docker commands such as `docker build` and `docker commit`, and consumes fewer inodes on the backing filesystem. ### Image and container layers on-disk After downloading a five-layer image using `docker pull ubuntu`, you can see six directories under `/var/lib/docker/overlay2`. > [!WARNING] > > Don't directly manipulate any files or directories within > `/var/lib/docker/`. These files and directories are managed by Docker. ```console $ ls -l /var/lib/docker/overlay2 total 24 drwx------ 5 root root 4096 Jun 20 07:36 223c2864175491657d238e2664251df13b63adb8d050924fd1bfcdb278b866f7 drwx------ 3 root root 4096 Jun 20 07:36 3a36935c9df35472229c57f4a27105a136f5e4dbef0f87905b2e506e494e348b drwx------ 5 root root 4096 Jun 20 07:36 4e9fa83caff3e8f4cc83693fa407a4a9fac9573deaf481506c102d484dd1e6a1 drwx------ 5 root root 4096 Jun 20 07:36 e8876a226237217ec61c4baf238a32992291d059fdac95ed6303bdff3f59cff5 drwx------ 5 root root 4096 Jun 20 07:36 eca1e4e1694283e001f200a667bb3cb40853cf2d1b12c29feda7422fed78afed drwx------ 2 root root 4096 Jun 20 07:36 l ``` The new `l` (lowercase `L`) directory contains shortened layer identifiers as symbolic links. These identifiers are used to avoid hitting the page size limitation on arguments to the `mount` command. ```console $ ls -l /var/lib/docker/overlay2/l total 20 lrwxrwxrwx 1 root root 72 Jun 20 07:36 6Y5IM2XC7TSNIJZZFLJCS6I4I4 -> ../3a36935c9df35472229c57f4a27105a136f5e4dbef0f87905b2e506e494e348b/diff lrwxrwxrwx 1 root root 72 Jun 20 07:36 B3WWEFKBG3PLLV737KZFIASSW7 -> ../4e9fa83caff3e8f4cc83693fa407a4a9fac9573deaf481506c102d484dd1e6a1/diff lrwxrwxrwx 1 root root 72 Jun 20 07:36 JEYMODZYFCZFYSDABYXD5MF6YO -> ../eca1e4e1694283e001f200a667bb3cb40853cf2d1b12c29feda7422fed78afed/diff lrwxrwxrwx 1 root root 72 Jun 20 07:36 NFYKDW6APBCCUCTOUSYDH4DXAT -> ../223c2864175491657d238e2664251df13b63adb8d050924fd1bfcdb278b866f7/diff lrwxrwxrwx 1 root root 72 Jun 20 07:36 UL2MW33MSE3Q5VYIKBRN4ZAGQP -> ../e8876a226237217ec61c4baf238a32992291d059fdac95ed6303bdff3f59cff5/diff ``` The lowest layer contains a file called `link`, which contains the name of the shortened identifier, and a directory called `diff` which contains the layer's contents. ```console $ ls /var/lib/docker/overlay2/3a36935c9df35472229c57f4a27105a136f5e4dbef0f87905b2e506e494e348b/ diff link $ cat /var/lib/docker/overlay2/3a36935c9df35472229c57f4a27105a136f5e4dbef0f87905b2e506e494e348b/link 6Y5IM2XC7TSNIJZZFLJCS6I4I4 $ ls /var/lib/docker/overlay2/3a36935c9df35472229c57f4a27105a136f5e4dbef0f87905b2e506e494e348b/diff bin boot dev etc home lib lib64 media mnt opt proc root run sbin srv sys tmp usr var ``` The second-lowest layer, and each higher layer, contain a file called `lower`, which denotes its parent, and a directory called `diff` which contains its contents. It also contains a `merged` directory, which contains the unified contents of its parent layer and itself, and a `work` directory which is used internally by OverlayFS. ```console $ ls /var/lib/docker/overlay2/223c2864175491657d238e2664251df13b63adb8d050924fd1bfcdb278b866f7 diff link lower merged work $ cat /var/lib/docker/overlay2/223c2864175491657d238e2664251df13b63adb8d050924fd1bfcdb278b866f7/lower l/6Y5IM2XC7TSNIJZZFLJCS6I4I4 $ ls /var/lib/docker/overlay2/223c2864175491657d238e2664251df13b63adb8d050924fd1bfcdb278b866f7/diff/ etc sbin usr var ``` To view the mounts which exist when you use the `overlay` storage driver with Docker, use the `mount` command. The output below is truncated for readability. ```console $ mount | grep overlay overlay on /var/lib/docker/overlay2/9186877cdf386d0a3b016149cf30c208f326dca307529e646afce5b3f83f5304/merged type overlay (rw,relatime, lowerdir=l/DJA75GUWHWG7EWICFYX54FIOVT:l/B3WWEFKBG3PLLV737KZFIASSW7:l/JEYMODZYFCZFYSDABYXD5MF6YO:l/UL2MW33MSE3Q5VYIKBRN4ZAGQP:l/NFYKDW6APBCCUCTOUSYDH4DXAT:l/6Y5IM2XC7TSNIJZZFLJCS6I4I4, upperdir=9186877cdf386d0a3b016149cf30c208f326dca307529e646afce5b3f83f5304/diff, workdir=9186877cdf386d0a3b016149cf30c208f326dca307529e646afce5b3f83f5304/work) ``` The `rw` on the second line shows that the `overlay` mount is read-write. The following diagram shows how a Docker image and a Docker container are layered. The image layer is the `lowerdir` and the container layer is the `upperdir`. If the image has multiple layers, multiple `lowerdir` directories are used. The unified view is exposed through a directory called `merged` which is effectively the containers mount point. ![How Docker constructs map to OverlayFS constructs](images/overlay_constructs.webp) Where the image layer and the container layer contain the same files, the container layer (`upperdir`) takes precedence and obscures the existence of the same files in the image layer. To create a container, the `overlay2` driver combines the directory representing the image's top layer plus a new directory for the container. The image's layers are the `lowerdirs` in the overlay and are read-only. The new directory for the container is the `upperdir` and is writable. ### Image and container layers on-disk The following `docker pull` command shows a Docker host downloading a Docker image comprising five layers. ```console $ docker pull ubuntu Using default tag: latest latest: Pulling from library/ubuntu 5ba4f30e5bea: Pull complete 9d7d19c9dc56: Pull complete ac6ad7efd0f9: Pull complete e7491a747824: Pull complete a3ed95caeb02: Pull complete Digest: sha256:46fb5d001b88ad904c5c732b086b596b92cfb4a4840a3abd0e35dbb6870585e4 Status: Downloaded newer image for ubuntu:latest ``` #### The image layers Each image layer has its own directory within `/var/lib/docker/overlay/`, which contains its contents, as shown in the following example. The image layer IDs don't correspond to the directory IDs. > [!WARNING] > > Don't directly manipulate any files or directories within > `/var/lib/docker/`. These files and directories are managed by Docker. ```console $ ls -l /var/lib/docker/overlay/ total 20 drwx------ 3 root root 4096 Jun 20 16:11 38f3ed2eac129654acef11c32670b534670c3a06e483fce313d72e3e0a15baa8 drwx------ 3 root root 4096 Jun 20 16:11 55f1e14c361b90570df46371b20ce6d480c434981cbda5fd68c6ff61aa0a5358 drwx------ 3 root root 4096 Jun 20 16:11 824c8a961a4f5e8fe4f4243dab57c5be798e7fd195f6d88ab06aea92ba931654 drwx------ 3 root root 4096 Jun 20 16:11 ad0fe55125ebf599da124da175174a4b8c1878afe6907bf7c78570341f308461 drwx------ 3 root root 4096 Jun 20 16:11 edab9b5e5bf73f2997524eebeac1de4cf9c8b904fa8ad3ec43b3504196aa3801 ``` The image layer directories contain the files unique to that layer as well as hard links to the data shared with lower layers. This allows for efficient use of disk space. ```console $ ls -i /var/lib/docker/overlay2/38f3ed2eac129654acef11c32670b534670c3a06e483fce313d72e3e0a15baa8/root/bin/ls 19793696 /var/lib/docker/overlay2/38f3ed2eac129654acef11c32670b534670c3a06e483fce313d72e3e0a15baa8/root/bin/ls $ ls -i /var/lib/docker/overlay2/55f1e14c361b90570df46371b20ce6d480c434981cbda5fd68c6ff61aa0a5358/root/bin/ls 19793696 /var/lib/docker/overlay2/55f1e14c361b90570df46371b20ce6d480c434981cbda5fd68c6ff61aa0a5358/root/bin/ls ``` #### The container layer Containers also exist on-disk in the Docker host's filesystem under `/var/lib/docker/overlay/`. If you list a running container's subdirectory using the `ls -l` command, three directories and one file exist: ```console $ ls -l /var/lib/docker/overlay2/ total 16 -rw-r--r-- 1 root root 64 Jun 20 16:39 lower-id drwxr-xr-x 1 root root 4096 Jun 20 16:39 merged drwxr-xr-x 4 root root 4096 Jun 20 16:39 upper drwx------ 3 root root 4096 Jun 20 16:39 work ``` The `lower-id` file contains the ID of the top layer of the image the container is based on, which is the OverlayFS `lowerdir`. ```console $ cat /var/lib/docker/overlay2/ec444863a55a9f1ca2df72223d459c5d940a721b2288ff86a3f27be28b53be6c/lower-id 55f1e14c361b90570df46371b20ce6d480c434981cbda5fd68c6ff61aa0a5358 ``` The `upper` directory contains the contents of the container's read-write layer, which corresponds to the OverlayFS `upperdir`. The `merged` directory is the union mount of the `lowerdir` and `upperdirs`, which comprises the view of the filesystem from within the running container. The `work` directory is internal to OverlayFS. To view the mounts which exist when you use the `overlay2` storage driver with Docker, use the `mount` command. The following output is truncated for readability. ```console $ mount | grep overlay overlay on /var/lib/docker/overlay2/l/ec444863a55a.../merged type overlay (rw,relatime,lowerdir=/var/lib/docker/overlay2/l/55f1e14c361b.../root, upperdir=/var/lib/docker/overlay2/l/ec444863a55a.../upper, workdir=/var/lib/docker/overlay2/l/ec444863a55a.../work) ``` The `rw` on the second line shows that the `overlay` mount is read-write. ## How container reads and writes work with `overlay2` ### Reading files Consider three scenarios where a container opens a file for read access with overlay. #### The file does not exist in the container layer If a container opens a file for read access and the file does not already exist in the container (`upperdir`) it is read from the image (`lowerdir`). This incurs very little performance overhead. #### The file only exists in the container layer If a container opens a file for read access and the file exists in the container (`upperdir`) and not in the image (`lowerdir`), it's read directly from the container. #### The file exists in both the container layer and the image layer If a container opens a file for read access and the file exists in the image layer and the container layer, the file's version in the container layer is read. Files in the container layer (`upperdir`) obscure files with the same name in the image layer (`lowerdir`). ### Modifying files or directories Consider some scenarios where files in a container are modified. #### Writing to a file for the first time The first time a container writes to an existing file, that file does not exist in the container (`upperdir`). The `overlay2` driver performs a `copy_up` operation to copy the file from the image (`lowerdir`) to the container (`upperdir`). The container then writes the changes to the new copy of the file in the container layer. However, OverlayFS works at the file level rather than the block level. This means that all OverlayFS `copy_up` operations copy the entire file, even if the file is large and only a small part of it's being modified. This can have a noticeable impact on container write performance. However, two things are worth noting: - The `copy_up` operation only occurs the first time a given file is written to. Subsequent writes to the same file operate against the copy of the file already copied up to the container. - OverlayFS works with multiple layers. This means that performance can be impacted when searching for files in images with many layers. #### Deleting files and directories - When a _file_ is deleted within a container, a _whiteout_ file is created in the container (`upperdir`). The version of the file in the image layer (`lowerdir`) is not deleted (because the `lowerdir` is read-only). However, the whiteout file prevents it from being available to the container. - When a _directory_ is deleted within a container, an _opaque directory_ is created within the container (`upperdir`). This works in the same way as a whiteout file and effectively prevents the directory from being accessed, even though it still exists in the image (`lowerdir`). #### Renaming directories Calling `rename(2)` for a directory is allowed only when both the source and the destination path are on the top layer. Otherwise, it returns `EXDEV` error ("cross-device link not permitted"). Your application needs to be designed to handle `EXDEV` and fall back to a "copy and unlink" strategy. ## OverlayFS and Docker Performance `overlay2` may perform better than `btrfs`. However, be aware of the following details: ### Page caching OverlayFS supports page cache sharing. Multiple containers accessing the same file share a single page cache entry for that file. This makes the `overlay2` drivers efficient with memory and a good option for high-density use cases such as PaaS. ### Copyup As with other copy-on-write filesystems, OverlayFS performs copy-up operations whenever a container writes to a file for the first time. This can add latency into the write operation, especially for large files. However, once the file has been copied up, all subsequent writes to that file occur in the upper layer, without the need for further copy-up operations. ### Performance best practices The following generic performance best practices apply to OverlayFS. #### Use fast storage Solid-state drives (SSDs) provide faster reads and writes than spinning disks. #### Use volumes for write-heavy workloads Volumes provide the best and most predictable performance for write-heavy workloads. This is because they bypass the storage driver and don't incur any of the potential overheads introduced by thin provisioning and copy-on-write. Volumes have other benefits, such as allowing you to share data among containers and persisting your data even if no running container is using them. ## Limitations on OverlayFS compatibility To summarize the OverlayFS's aspect which is incompatible with other filesystems: [`open(2)`](https://linux.die.net/man/2/open) : OverlayFS only implements a subset of the POSIX standards. This can result in certain OverlayFS operations breaking POSIX standards. One such operation is the copy-up operation. Suppose that your application calls `fd1=open("foo", O_RDONLY)` and then `fd2=open("foo", O_RDWR)`. In this case, your application expects `fd1` and `fd2` to refer to the same file. However, due to a copy-up operation that occurs after the second calling to `open(2)`, the descriptors refer to different files. The `fd1` continues to reference the file in the image (`lowerdir`) and the `fd2` references the file in the container (`upperdir`). A workaround for this is to `touch` the files which causes the copy-up operation to happen. All subsequent `open(2)` operations regardless of read-only or read-write access mode reference the file in the container (`upperdir`). `yum` is known to be affected unless the `yum-plugin-ovl` package is installed. If the `yum-plugin-ovl` package is not available in your distribution such as RHEL/CentOS prior to 6.8 or 7.2, you may need to run `touch /var/lib/rpm/*` before running `yum install`. This package implements the `touch` workaround referenced above for `yum`. [`rename(2)`](https://linux.die.net/man/2/rename) : OverlayFS does not fully support the `rename(2)` system call. Your application needs to detect its failure and fall back to a "copy and unlink" strategy.
