karmada/docs/proposals/service-discovery

title	authors	reviewers	approvers	creation-date	update-date
Service discovery with native Kubernetes naming and resolution	@bivas @XiShanYongYe-Chang @jwcesign	@RainbowMango @GitHubxsy @Rains6 @chaunceyjiang	@RainbowMango	2023-06-22	2023-08-19

Service discovery with native Kubernetes naming and resolution

Summary

In multi-cluster scenarios, there is a need to access services across clusters. Currently, Karmada support this by creating derived service(with derived- prefix, ) in other clusters to access the service.

This Proposal propose a method for multi-cluster service discovery using Kubernetes native Service, to modify the current implementation of Karmada's MCS. This approach does not add a derived- prefix when accessing services across clusters.

Motivation

Having a derived- prefix for Service resources seems counterintuitive when thinking about service discovery:

• Assuming the pod is exported as the service foo
• Another pod that wishes to access it on the same cluster will simply call foo and Kubernetes will bind to the correct one
• If that pod is scheduled to another cluster, the original service discovery will fail as there's no service by the name foo
• To find the original pod, the other pod is required to know it is in another cluster and use derived-foo to work properly

If Karmada supports service discovery using native Kubernetes naming and resolution (without the derived- prefix), users can access the service using its original name without needing to modify their code to accommodate services with the derived- prefix.

Goals

• Remove the "derived-" prefix from the service
• User-friendly and native service discovery

Non-Goals

• Multi cluster connectivity

Proposal

Following are flows to support the service import proposal:

1. Deployment and Service are created on cluster member1 and the Service imported to cluster member2 using MultiClusterService (described below as user story 1)
2. Deployment and Service are created on cluster member1 and both propagated to cluster member2. Service from cluster member1 is imported to cluster member2 using MultiClusterService (described below as user story 2)

The proposal for this flow is what can be referred to as local-and-remote service discovery. In the process handling, it can be simply distinguished into the following scenarios:

1. Local only - In case there's a local service by the name foo Karmada never attempts to import the remote service and doesn't create an EndPointSlice
2. Local and Remote - Users accessing the foo service will reach either member1 or member2
3. Remote only - in case there's a local service by the name foo Karmada will remove the local EndPointSlice and will create an EndPointSlice pointing to the other cluster (e.g. instead of resolving member2 cluster is will reach member1)

Based on the above three scenarios, we think there is two reasonable strategies(Users can utilize PP to propagate the Service and implement the Local scenario, it's not necessary to implement it with MultiClusterService):

• RemoteAndLocal - When accessing Service, the traffic will be evenly distributed between the local cluster and remote cluster's Service.
• LocalFirst - When accessing Services, if the local cluster Service can provide services, it will directly access the Service of the local cluster. If a failure occurs in the Service on the local cluster, it will access the Service on remote clusters.

Note: How can we detect the failure? Maybe we need to watch the EndpointSlices resources of the relevant Services in the member cluster. If the EndpointSlices resource becomes non-existent or the statue become not ready, we need to synchronize it with other clusters.

This proposal suggests using the MultiClusterService API to enable cross-cluster service discovery.

This proposal focuses on the RemoteAndLocal strategy, and we will subsequently iterate on the LocalFirst strategy.

User Stories (Optional)

Story 1

As a user of a Kubernetes cluster, I want to be able to access a service whose corresponding pods are located in another cluster. I hope to communicate with the service using its original name.

Scenario:

1. Given that the Service named foo exists on cluster member1
2. When I try to access the service inside member2, I can access the service using the name foo.myspace.svc.cluster.local

Story 2

As a user of a Kubernetes cluster, I want to access a service that has pods located in both this cluster and another. I expect to communicate with the service using its original name, and have the requests routed to the appropriate pods across clusters.

Scenario:

1. Given that the Service named foo exists on cluster member1
2. And there is already a conflicting Service named foo on cluster member2
3. When I attempt to access the service in cluster member2 using foo.myspace.svc.cluster.local
4. Then the requests round-robin between the local foo service and the imported foo service (member1 and member2)

Notes/Constraints/Caveats (Optional)

Risks and Mitigations

Adding a Service that resolve to a remote cluster will add a network latency of communication between clusters.

Design Details

API changes

This proposal proposes two new fields ServiceProvisionClusters and ServiceConsumptionClusters in MultiClusterService API.

type MultiClusterServiceSpec struct {
	...

	// ServiceProvisionClusters specifies the clusters which will provision the service backend.
	// If leave it empty, we will collect the backend endpoints from all clusters and sync
	// them to the ServiceConsumptionClusters.
	// +optional
	ServiceProvisionClusters []string `json:"serviceProvisionClusters,omitempty"`

	// ServiceConsumptionClusters specifies the clusters where the service will be exposed, for clients.
	// If leave it empty, the service will be exposed to all clusters.
	// +optional
	ServiceConsumptionClusters []string `json:"serviceConsumptionClusters,omitempty"`
}

With this API, we will:

• Use ServiceProvisionClusters to specify the member clusters which will provision the service backend, if leave it empty, we will collect the backend endpoints from all clusters and sync them to the ServiceConsumptionClusters.
• Use ServiceConsumptionClusters to specify the clusters where the service will be exposed. If leave it empty, the service will be exposed to all clusters.

For example, if we want access `foo`` service which are located in member2 from member3 , we can use the following yaml:

apiVersion: v1
kind: Service
metadata:
  name: foo
spec:
  ports:
  - port: 80
    targetPort: 8080
  selector:
    app: foo
---
apiVersion: networking.karmada.io/v1alpha1
kind: MultiClusterService
metadata:
   name: foo
spec:
   types:
      - CrossCluster
    serviceProvisionClusters:
      - member2
    serviceConsumptionClusters:
      - member3

Implementation workflow

Service propagation

The process of propagating Service from Karmada control plane to member clusters is as follows:

1. multiclusterservice controller will list&watch Service and MultiClusterService resources from Karmada control plane.
2. Once there is same name MultiClusterService and Service, multiclusterservice will create the Work(corresponding to Service), the target cluster namespace is all the clusters in filed spec.serviceProvisionClusters and spec.serviceConsumptionClusters.
3. The Work will be synchronized with the member clusters. After synchronization, EndpointSlice will be created in member clusters.

EndpointSlice synchronization

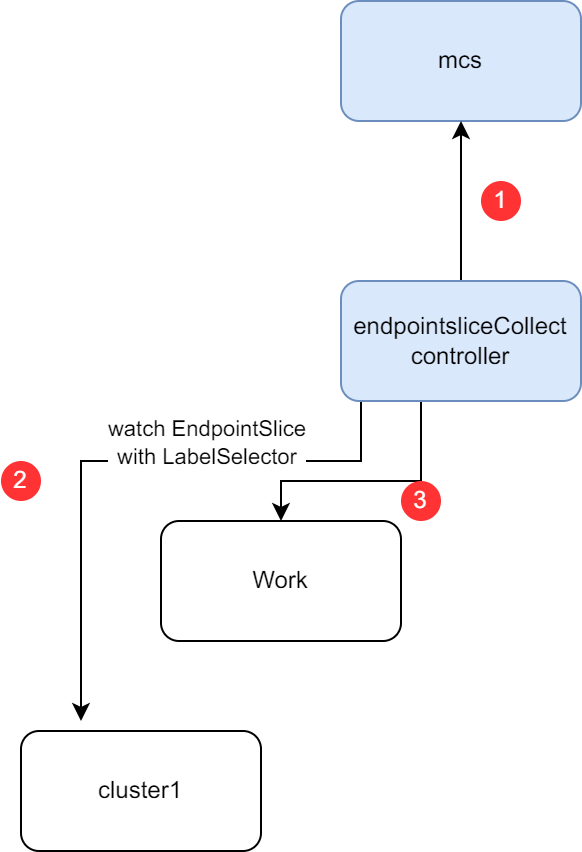

The process of synchronizing EndpointSlice from ServiceProvisionClusters to ServiceConsumptionClusters is as follows:

1. endpointsliceCollect controller will list&watch MultiClusterService.
2. endpointsliceCollect controller will build the informer to list&watch the target service's EndpointSlice from ServiceProvisionClusters.
3. endpointsliceCollect controller will create the corresponding Work for each EndpointSlice in the cluster namespace. When creating the Work, in order to delete the corresponding work when MultiClusterService deletion, we should add following labels:
   • endpointslice.karmada.io/name: the service name of the original EndpointSlice.
   • endpointslice.karmada.io/namespace: the service namespace of the original EndpointSlice.

1. endpointsliceDispatch controller will list&watch MultiClusterService.
2. endpointsliceDispatch controller will list&watch EndpointSlice from MultiClusterService's spec.serviceProvisionClusters.
3. endpointsliceDispatch controller will create the corresponding Work for each EndpointSlice in the cluster namespace of MultiClusterService's spec.serviceConsumptionClusters. When creating the Work, in order to facilitate problem investigation, we should add following annotation to record the original EndpointSlice information:
   • endpointslice.karmada.io/work-provision-cluster: the cluster name of the original EndpointSlice. Also, we should add the following annotation to the synced EndpointSlice record the original information:
   • endpointslice.karmada.io/endpointslice-generation: the resource generation of the EndpointSlice, it could be used to check whether the EndpointSlice is the newest version.
   • endpointslice.karmada.io/provision-cluster: the cluster location of the original EndpointSlice.
4. Karmada will sync the EndpointSlice's work to the member clusters.

But, there is one point to note that, assume I have following configuration:

apiVersion: v1
kind: Service
metadata:
  name: foo
spec:
  ports:
  - port: 80
    targetPort: 8080
  selector:
    app: foo
---
apiVersion: networking.karmada.io/v1alpha1
kind: MultiClusterService
metadata:
   name: foo
spec:
  types:
    - CrossCluster
  serviceProvisionClusters:
    - member1
    - member2
  serviceConsumptionClusters:
    - member2

When create the corresponding Work, Karmada should only sync the exists EndpointSlice in member1 to member2.

Components change

karmada-controller

• Add multiclusterservice controller to support reconcile MultiClusterService and Clusters, including creation/deletion/updating.
• Add endpointsliceCollect controller to support reconcile MultiClusterService and Clusters, collect EndpointSlice from ServerClusters as work.
• Add endpointsliceDispatch controller to support reconcile MultiClusterService and Clusters, dispatch EndpointSlice work from serviceProvisionClusters to serviceConsumptionClusters.

Status Record

We should have following Condition in MultiClusterService:

	MCSServiceAppliedConditionType          = "ServiceApplied"

	MCSEndpointSliceCollectedConditionType = "EndpointSliceCollected"

	MCSEndpointSliceAppliedConditionType = "EndpointSliceApplied"

MCSServiceAppliedConditionType is used to record the status of Service propagation, for example:

status:
  conditions:
  - lastTransitionTime: "2023-11-20T02:30:49Z"
    message: Service is propagated to target clusters.
    reason: ServiceAppliedSuccess
    status: "True"
    type: ServiceApplied

MCSEndpointSliceCollectedConditionType is used to record the status of EndpointSlice collection, for example:

status:
  conditions:
  - lastTransitionTime: "2023-11-20T02:30:49Z"
    message: Failed to list&watch EndpointSlice in member3.
    reason: EndpointSliceCollectedFailed
    status: "False"
    type: EndpointSliceCollected

MCSEndpointSliceAppliedConditionType is used to record the status of EndpointSlice synchronization, for example:

status:
  conditions:
  - lastTransitionTime: "2023-11-20T02:30:49Z"
    message: EndpointSlices are propagated to target clusters.
    reason: EndpointSliceAppliedSuccess
    status: "True"
    type: EndpointSliceApplied

Metrics Record

For better monitoring, we should have following metrics:

• mcs_sync_svc_duration_seconds - The duration of syncing Service from Karmada control plane to member clusters.
• mcs_sync_eps_duration_seconds - The time it takes from detecting the EndpointSlice to creating/updating the corresponding Work in a specific namespace.

Development Plan

• API definition, including API files, CRD files, and generated code. (1d)
• For multiclusterservice controller, List&watch mcs and service, reconcile the work in execution namespace. (5d)
• For multiclusterservice controller, List&watch cluster creation/deletion, reconcile the work in corresponding cluster execution namespace. (10)
• For endpointsliceCollect controller, List&watch mcs, collect the corresponding EndpointSlice from serviceProvisionClusters, and endpointsliceDispatch controller should sync the corresponding Work. (5d)
• For endpointsliceCollect controller, List&watch cluster creation/deletion, reconcile the EndpointSlice's work in corresponding cluster execution namespace. (10d)
• If cluster gets unhealthy, mcs-eps-controller should delete the EndpointSlice from all the cluster execution namespace. (5d)

Test Plan

• UT cover for new add code
• E2E cover for new add case

Alternatives

One alternative approach to service discovery with native Kubernetes naming and resolution is to rely on external DNS-based service discovery mechanisms. However, this approach may require additional configuration and management overhead, as well as potential inconsistencies between different DNS implementations. By leveraging the native Kubernetes naming and resolution capabilities, the proposed solution simplifies service discovery and provides a consistent user experience.

Another alternative approach could be to enforce a strict naming convention for imported services, where a specific prefix or suffix is added to the service name to differentiate it from local services. However, this approach may introduce complexity for users and require manual handling of naming collisions. The proposed solution aims to provide a more user-friendly experience by removing the "derived-" prefix and allowing services to be accessed using their original names.
