+# Debugging Knative Eventing
+
+This is an evolving document on how to debug a non-working Knative Eventing setup.
+## Audience
+
+This document is intended for people that are familiar with [Knative Eventing](../README.md)'s object model. You don't need to be an expert, but do need to know roughly how things fit together.
+
+## Version
+This document works with [Eventing 0.3](https://github.com/knative/eventing/releases/tag/v0.3.0) and [Eventing Sources 0.3](https://github.com/knative/eventing-sources/releases/tag/v0.3.0).
+
+## Prerequisites
+
+1. Setup
+   [Knative Eventing and Eventing-Sources](../README.md).
+
+## Example
+

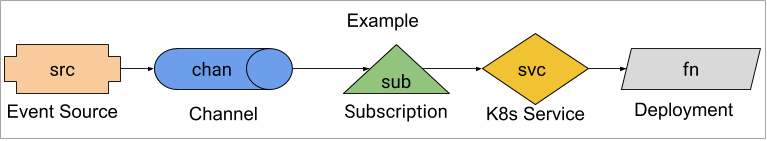

+This guide uses an example consisting of an Event Source sending events to a function.
+
+![src -> chan -> sub -> svc -> fn](ExampleModel.png)
+
+See [example.yaml](example.yaml) for the entire YAML. For any commands in this guide to work, you must apply [example.yaml](example.yaml):
+
+```shell
+kubectl apply -f example.yaml
+```
+
+## Triggering Events
+
+Knative events will occur whenever a Kubernetes [`Event`](https://kubernetes.io/docs/reference/generated/kubernetes-api/v1.11/#event-v1-core) occurs in the `knative-debug` namespace. We can cause this to occur with the following commands:
+
+```shell
+kubectl -n knative-debug run to-be-deleted --image=image-that-doesnt-exist --restart=Never
+# 5 seconds is arbitrary. We want K8s to notice that the Pod needs to be scheduled and generate at least one event.
+sleep 5
+kubectl -n knative-debug delete pod to-be-deleted
+```
+
+Then we can see the Kubernetes `Event`s (note that these are not Knative events!):
+
+```shell
+kubectl -n knative-debug get events
+```
+
+This should produce output along the lines of:
+
+```shell
+LAST SEEN   FIRST SEEN   COUNT     NAME                             KIND      SUBOBJECT                        TYPE      REASON                   SOURCE                                         MESSAGE
+20s         20s          1         to-be-deleted.157aadb9f376fc4e   Pod                                        Normal    Scheduled                default-scheduler                              Successfully assigned knative-debug/to-be-deleted to gke-kn24-default-pool-c12ac83b-pjf2
+```
+
+## Where are my events?
+
+You've applied [example.yaml](example.yaml) and you are inspecting `fn`'s logs:
+
+```shell
+kubectl -n knative-debug logs -l app=fn -c user-container
+```
+
+But you don't see any events arrive. Where is the problem?
+
+### Control Plane
+
+We will first check the control plane, to ensure everything should be working properly.
+
+#### Resources
+
+The first thing to check are all the created resources, do their statuses contain `ready` true?
+
+We will attempt to determine why from the most basic pieces out:
+
+1. `fn` - The `Deployment` has no dependencies inside Knative.
+1. `svc` - The `Service` has no dependencies inside Knative.
+1. `chan` - The `Channel` depends on its backing `ClusterChannelProvisioner` and somewhat depends on `sub`.
+1. `src` - The `Source` depends on `chan`.
+1. `sub` - The `Subscription` depends on both `chan` and `svc`.
+
+##### `fn`
+
+```shell
+kubectl -n knative-debug get deployment fn -o jsonpath='{.status.availableReplicas}'
+```
+
+We want to see '1'. If you don't, then you need to debug the `Deployment`. Is there anything obviously wrong mentioned in the `status`?
+
+```shell
+kubectl -n knative-debug get deployment fn -o yaml
+```
+
+If it is not obvious what is wrong, then you need to debug the `Deployment`, which is out of scope of this document.
+
+Verify that the `Pod` is `Ready`:
+
+```shell
+kubectl -n knative-debug get pod -l app=fn -o jsonpath='{.items[*].status.conditions[?(@.type == "Ready")].status}'
+```
+
+This should return `True`. If it doesn't, then try to debug the `Deployment`, which is out of scope of this document.
+
+
+##### `svc`
+
+```shell
+kubectl -n knative-debug get service svc
+```
+
+We just want to ensure this exists and has the correct name. If it doesn't exist, then you probably need to re-apply [example.yaml](example.yaml).
+
+Verify it points at the expected pod.
+
+```shell
+svcLabels=$(kubectl -n knative-debug get service svc -o go-template='{{range $k, $v := .spec.selector}}{{ $k }}={{ $v }},{{ end }}' | sed 's/.$//' )
+kubectl -n knative-debug get pods -l $svcLabels
+```
+
+This should return a single Pod, which if you inspect is the one generated by `fn`.
+
+##### `chan`
+
+`chan` uses the [`in-memory-channel`](https://github.com/knative/eventing/tree/master/config/provisioners/in-memory-channel) as its `ClusterChannelProvisioner`. This is a very basic provisioner and has few failure modes that will be exhibited in `chan`'s `status`.
+
+```shell
+kubectl -n knative-debug get channel chan -o jsonpath='{.status.conditions[?(@.type == "Ready")].status}'
+```
+
+This should return `True`. If it doesn't, get the full resource:
+
+```shell
+kubectl -n knative-debug get channel chan -o yaml
+```
+
+If `status` is completely missing, it implies that something is wrong with the `in-memory-channel` controller. See [Channel Controller](#channel-controller).
+
+Next verify that `chan` is addressable:
+
+```shell
+kubectl -n knative-debug get channel chan -o jsonpath='{.status.address.hostname}'
+```
+
+This should return a URI, likely ending in '.cluster.local'. If it doesn't, then it implies that something went wrong during reconcilation. See [Channel Controller](#channel-controller).
+
+We will verify that the two resources that the `chan` creates exist and are `Ready`.
+
+###### `Service`
+
+`chan` creates a K8s `Service`.
+
+```shell
+kubectl -n knative-debug get service -l provisioner=in-memory-channel,channel=chan
+```
+
+It's spec is completely unimportant, as Istio will ignore it. It just needs to exist so that `src` can send events to it. If it doesn't exist, it implies that something went wrong during `chan` reconciliation. See [Channel Controller](#channel-controller).
+
+###### `VirtualService`
+
+`chan` creates a `VirtualService` which redirects its hostname to the `in-memory-channel` dispatcher.
+
+```shell
+kubectl -n knative-debug get virtualservice -l provisioner=in-memory-channel,channel=chan -o custom-columns='HOST:.spec.hosts[0],DESTINATION:.spec.http[0].route[0].destination.host'
+```
+
+Verify that
+
+1. 'HOST' is the same as the hostname returned by in `chan`'s `status.address.hostname`.
+1. 'DESTINATION' is 'in-memory-channel-dispatcher.knative-eventing.svc.cluster.local'.
+
+If either of those is not accurate, then it implies that something went wrong during `chan` reconciliation. See [Channel Controller](#channel-controller).
+
+##### `src`
+
+`src` is a [`KubernetesEventSource`](https://github.com/knative/eventing-sources/blob/master/pkg/apis/sources/v1alpha1/kuberneteseventsource_types.go), which creates an underlying [`ContainerSource`](https://github.com/knative/eventing-sources/blob/master/pkg/apis/sources/v1alpha1/containersource_types.go).
+
+First we will verify that `src` is writing to `chan`.
+
+```shell
+kubectl -n knative-debug get kuberneteseventsource src -o jsonpath='{.spec.sink}'
+```
+
+Which should return `map[apiVersion:eventing.knative.dev/v1alpha1 kind:Channel name:chan]`. If it doesn't, then `src` was setup incorrectly and its `spec` needs to be fixed. Fixing should be as simple as updating its `spec` to have the correct `sink` (see [example.yaml](example.yaml)).
+
+Now that we know `src` is sending to `chan`, let's verify that it is `Ready`.
+
+```shell
+kubectl -n knative-debug get kuberneteseventsource src -o jsonpath='{.status.conditions[?(.type == "Ready")].status}'
+```
+
+This should return `True`. If it doesn't, then we need to investigate why. First we will look at the owned `ContainerSource` that underlies `src`, and if that is not fruitful, look at the [Source Controller](#source-controller).
+
+##### ContainerSource
+
+`src` is backed by a `ContainerSource` resource.
+
+
+
+Is the `ContainerSource` `Ready`?
+
+```shell
+srcUID=$(kubectl -n knative-debug get kuberneteseventsource src -o jsonpath='{.metadata.uid}')
+kubectl -n knative-debug get containersource -o jsonpath="{.items[?(.metadata.ownerReferences[0].uid == '$srcUID')].status.conditions[?(.type == 'Ready')].status}"
+```
+
+That should be `True`. If it is, but `src` is not `Ready`, then that implies the problem is in the [Source Controller](#source-controller).
+
+If `ContainerSource` is not `Ready`, then we need to look at its entire `status`:
+
+```shell
+srcUID=$(kubectl -n knative-debug get kuberneteseventsource src -o jsonpath='{.metadata.uid}')
+containerSourceName=$(kubectl -n knative-debug get containersource -o jsonpath="{.items[?(.metadata.ownerReferences[*].uid == '$srcUID')].metadata.name}")
+kubectl -n knative-debug get containersource $containerSourceName -o yaml
+```
+
+The most useful condition (when `Ready` is not `True`), is `Deployed`.
+
+```shell
+srcUID=$(kubectl -n knative-debug get kuberneteseventsource src -o jsonpath='{.metadata.uid}')
+containerSourceName=$(kubectl -n knative-debug get containersource -o jsonpath="{.items[?(.metadata.ownerReferences[*].uid == '$srcUID')].metadata.name}")
+kubectl -n knative-debug get containersource $containerSourceName -o jsonpath='{.status.conditions[?(.type == "Deployed")].message}'
+```
+
+You should see something like `Updated deployment src-xz59f-hmtkp`. Let's see the health of the `Deployment` that `ContainerSource` created (named in the message, but we will get it directly in the following command):
+
+```shell
+srcUID=$(kubectl -n knative-debug get kuberneteseventsource src -o jsonpath='{.metadata.uid}')
+containerSourceUID=$(kubectl -n knative-debug get containersource -o jsonpath="{.items[?(.metadata.ownerReferences[*].uid == '$srcUID')].metadata.uid}")
+deploymentName=$(kubectl -n knative-debug get deployment -o jsonpath="{.items[?(.metadata.ownerReferences[*].uid == '$containerSourceUID')].metadata.name}")
+kubectl -n knative-debug get deployment $deploymentName -o yaml
+```
+
+If this is unhealthy, then it should tell you why. E.g. `'pods "src-xz59f-hmtkp-7bd4bc6964-" is forbidden: error looking up service account knative-debug/events-sa: serviceaccount "events-sa" not found'`. Fix any errors so that it the `Deployment` is healthy.
+
+If the `Deployment` is healthy, but the `ContainerSource` isn't, that implies something went wrong in [ContainerSource Controller](#containersource-controller).
+
+#### `sub`
+
+`sub` is a `Subscription` from `chan` to `fn`.
+
+Verify that `sub` is `Ready`:
+
+```shell
+kubectl -n knative-debug get subscription sub -o jsonpath='{.status.conditions[?(.type == "Ready")].status}'
+```
+
+This should return `True`. If it doesn't then, look at all the status entries.
+
+```shell
+kubectl -n knative-debug get subscription sub -o yaml
+```
+
+#### Controllers
+
+Each of the resources has a Controller that is watching it. As of today, they tend to do a poor job of writing failure status messages and events, so we need to look at the Controller's logs.
+
+##### Deployment Controller
+
+The Kubernetes Deployment Controller, controlling `fn`, is out of scope for this document.
+
+##### Service Controller
+
+The Kubernetes Service Controller, controlling `svc`, is out of scope for this document.
+
+##### Channel Controller
+
+There is not a single `Channel` Controller. Instead, there is a single Controller for each `ClusterChannelProvisioner`. `chan` uses the `in-memory-channel` `ClusterChannelProvisioner`, whose Controller is:
+
+```shell
+kubectl -n knative-eventing get pod -l clusterChannelProvisioner=in-memory-channel,role=controller -o yaml
+```
+
+See its logs with:
+
+```shell
+kubectl -n knative-eventing logs -l clusterChannelProvisioner=in-memory-channel,role=controller
+```
+
+Pay particular attention to any lines that have a logging level of `warning` or `error`.
+
+##### Source Controller
+
+Each Source will have its own Controller. `src` is a `KubernetesEventSource`, so its Controller is:
+
+```shell
+kubectl -n knative-sources get pod -l control-plane=controller-manager
+```
+
+This is actually a single binary that runs multiple Source Controllers, importantly including [ContainerSource Controller](#containersource-controller).
+
+The `KubernetesEventSource` is fairly simple, as it delegates all functionality to an underlying [ContainerSource](#containersource), so there is likely no useful information in its logs. Instead more useful information is likely in the [ContainerSource Controller](#containersource-controller)'s logs. If you want to look at `KubernetesEventSource` Controller's logs anyway, they can be see with:
+
+```shell
+kubectl -n knative-sources logs -l control-plane=controller-manager
+```
+
+###### ContainerSource Controller
+
+The `ContainerSource` Controller is run in the same binary as some other Source Controllers. It is:
+
+```shell
+kubectl -n knative-sources get pod -l control-plane=controller-manager
+```
+
+View its logs with:
+
+```shell
+kubectl -n knative-sources logs -l control-plane=controller-manager
+```
+
+Pay particular attention to any lines that have a logging level of `warning` or `error`.
+
+##### Subscription Controller
+
+The `Subscription` Controller controls `sub`. It attempts to resolve the addresses that a `Channel` should send events to, and once resolved, inject those into the `Channel`'s `spec.subscribable`.
+
+```shell
+kubectl -n knative-eventing get pod -l app=eventing-controller
+```
+
+View its logs with:
+
+```shell
+kubectl -n knative-eventing logs -l app=eventing-controller
+```
+
+Pay particular attention to any lines that have a logging level of `warning` or `error`.
+
+### Data Plane
+
+The entire [Control Plane](#control-plane) looks healthy, but we're still not getting any events. Now we need to investigate the data plane.
+
+The Knative event takes the following path:
+
+1. Event is generated by `src`.
+    - In this case, it is caused by having a Kubernetes `Event` trigger it, but as far as Knative is concerned, the `Source` is generating the event denovo (from nothing).
+
+1. `src` is POSTing the event to `chan`'s address, `chan-channel-45k5h.knative-debug.svc.cluster.local`.
+
+1. `src`'s Istio proxy is intercepting the request, seeing that the Host matches a `VirtualService`. The request's Host is rewritten to `chan.knative-debug.channels.cluster.local` and sent to the [Channel Dispatcher](#channel-dispatcher), `in-memory-channel-dispatcher.knative-eventing.svc.cluster.local`.
+
+1. The Channel Dispatcher receives the request and introspects the Host header to determine which `Channel` it corresponds to. It sees that it corresponds to `knative-debug/chan` so forwards the request to the subscribers defined in `sub`, in particular `svc`, which is backed by `fn`.
+
+1. `fn` receives the request and logs it.
+
+We will investigate components in the order in which events should travel.
+
+#### `src`
+
+Events should be generated at `src`. First let's look at the `Pod`s logs:
+
+```shell
+srcUID=$(kubectl -n knative-debug get kuberneteseventsource src -o jsonpath='{.metadata.uid}')
+containerSourceName=$(kubectl -n knative-debug get containersource -o jsonpath="{.items[?(.metadata.ownerReferences[*].uid == '$srcUID')].metadata.name}")
+kubectl -n knative-debug logs -l source=$containerSourceName -c source
+```
+
+Note that a few log lines within the first ~15 seconds of the `Pod` starting like the following are fine. They represent the time waiting for the Istio proxy to start. If you see these more than a few seconds after the `Pod` starts, then something is wrong.
+
+```shell
+E0116 23:59:40.033667       1 reflector.go:205] github.com/knative/eventing-sources/pkg/adapter/kubernetesevents/adapter.go:73: Failed to list *v1.Event: Get https://10.51.240.1:443/api/v1/namespaces/kna tive-debug/events?limit=500&resourceVersion=0: dial tcp 10.51.240.1:443: connect: connection refused
+E0116 23:59:41.034572       1 reflector.go:205] github.com/knative/eventing-sources/pkg/adapter/kubernetesevents/adapter.go:73: Failed to list *v1.Event: Get https://10.51.240.1:443/api/v1/namespaces/kna tive-debug/events?limit=500&resourceVersion=0: dial tcp 10.51.240.1:443: connect: connection refused
+```
+
+The success message is `debug` level, so we don't expect to see anything. If you see lines with a logging level of `error`, look at their `msg`. For example:
+
+```shell
+"msg":"[404] unexpected response \"\""
+```
+
+Which means that `src` correctly got the Kubernetes `Event` and tried to send it to `chan`, but failed to do so. In this case, the response code was a 404. We will look at the Istio proxy's logs to see if we can get any further information:
+
+```shell
+srcUID=$(kubectl -n knative-debug get kuberneteseventsource src -o jsonpath='{.metadata.uid}')
+containerSourceName=$(kubectl -n knative-debug get containersource -o jsonpath="{.items[?(.metadata.ownerReferences[*].uid == '$srcUID')].metadata.name}")
+kubectl -n knative-debug logs -l source=$containerSourceName -c istio-proxy
+```
+
+We see lines like:
+
+```shell
+[2019-01-17T17:16:11.898Z] "POST / HTTP/1.1" 404 NR 0 0 0 - "-" "Go-http-client/1.1" "4702a818-11e3-9e15-b523-277b94598101" "chan-channel-45k5h.knative-debug.svc.cluster.local" "-"
+```
+
+These are lines emitted by [Envoy](https://www.envoyproxy.io). The line is documented as Envoy's [Access Logging](https://www.envoyproxy.io/docs/envoy/latest/configuration/access_log). That's odd, we already verified that there is a [`VirtualService`](#virtualservice) for `chan`. In fact, we don't expect to see `chan-channel-45k5h.knative-debug.svc.cluster.local` at all, it should be replaced with `chan.knative-debug.channels.cluster.local`. We keep looking in the same Istio proxy logs and see:
+
+```shell
+ [2019-01-16 23:59:41.408][23][warning][config] bazel-out/k8-opt/bin/external/envoy/source/common/config/_virtual_includes/grpc_mux_subscription_lib/common/config/grpc_mux_subscription_impl.h:70] gRPC     config for type.googleapis.com/envoy.api.v2.RouteConfiguration rejected: Only unique values for domains are permitted. Duplicate entry of domain chan.knative-debug.channels.cluster.local
+ ```
+
+This shows that the [`VirtualService`](#virtualservice) created for `chan`, which tries to map two hosts, `chan-channel-45k5h.knative-debug.svc.cluster.local` and `chan.knative-debug.channels.cluster.local`, is not working. The most likely cause is duplicate `VirtualService`s that all try to rewrite those hosts. Look at all the `VirtualService`s in the namespace and see what hosts they rewrite:
+
+```shell
+kubectl -n knative-debug get virtualservice -o custom-columns='NAME:.metadata.name,HOST:.spec.hosts[*]'
+```
+
+In this case, we see:
+
+```shell
+NAME                 HOST
+chan-channel-38x5a   chan-channel-45k5h.knative-debug.svc.cluster.local,chan.knative-debug.channels.cluster.local
+chan-channel-8dc2x   chan-channel-45k5h.knative-debug.svc.cluster.local,chan.knative-debug.channels.cluster.local
+```
+
+```
+Note: This shouldn't happen normally. It only happened here because I had local edits to the Channel controller and created a bug. If you see this with any released Channel Controllers, open a bug with all relevant information (Channel Controller info and YAML of all the VirtualServices).
+```
+
+Both are owned by `chan`. Deleting both, causes the [Channel Controller](#channel-controller) to recreate the correct one. After deleting both, a single new one is created (same command as above):
+
+```shell
+NAME                 HOST
+chan-channel-9kbr8   chan-channel-45k5h.knative-debug.svc.cluster.local,chan.knative-debug.channels.cluster.local
+```
+
+After [forcing a Kubernetes event to occur](#triggering-events), the Istio proxy logs now have:
+
+```shell
+[2019-01-17T18:04:07.571Z] "POST / HTTP/1.1" 202 - 795 0 1 1 "-" "Go-http-client/1.1" "ba36be7e-4fc4-9f26-83bd-b1438db730b0" "chan.knative-debug.channels.cluster.local" "10.48.1.94:8080"
+```
+
+Which looks correct. Most importantly, the return code is now 202 Accepted. In addition, the request's Host is being correctly rewritten to `chan.knative-debug.channels.cluster.local`.
+
+#### Channel Dispatcher
+
+The Channel Dispatcher is the component that receives POSTs pushing events into `Channel`s and then POSTs to subscribers of those `Channel`s when an event is received. For the `in-memory-channel` used in this example, there is a single binary that handles both the receiving and dispatching sides for all `in-memory-channel` `Channel`s.
+
+First we will inspect the Dispatcher's logs to see if it is anything obvious:
+
+```shell
+kubectl -n knative-eventing logs -l clusterChannelProvisioner=in-memory-channel,role=dispatcher -c dispatcher
+```
+
+Ideally we will see lines like:
+
+```shell
+{"level":"info","ts":1547752472.9581263,"caller":"provisioners/message_receiver.go:116","msg":"Received request for chan.knative-debug.channels.cluster.local"}
+{"level":"info","ts":1547752472.9582398,"caller":"provisioners/message_dispatcher.go:106","msg":"Dispatching message to http://svc.knative-debug.svc.cluster.local/"}
+```
+
+Which shows that the request is being received and then sent to `svc`, which is returning a 2XX response code (likely 200, 202, or 204).
+
+However if we see something like:
+
+```shell
+{"level":"info","ts":1547752478.5898774,"caller":"provisioners/message_receiver.go:116","msg":"Received request for chan.knative-debug.channels.cluster.local"}
+{"level":"info","ts":1547752478.58999,"caller":"provisioners/message_dispatcher.go:106","msg":"Dispatching message to http://svc.knative-debug.svc.cluster.local/"}
+{"level":"error","ts":1547752478.6035335,"caller":"fanout/fanout_handler.go:108","msg":"Fanout had an error","error":"Unable to complete request Post http://svc.knative-debug.svc.cluster.local/: EOF","stacktrace":"github.com/knative/eventing/pkg/sidecar/fanout.(*Handler).dispatch\n\t/usr/local/google/home/harwayne/go/src/github.com/knative/eventing/pkg/sidecar/fanout/fanout_handler.go:108\ngithub.com/knative/eventing/pkg/sidecar/fanout.createReceiverFunction.func1\n\t/usr/local/google/home/harwayne/go/src/github.com/knative/eventing/pkg/sidecar/fanout/fanout_handler.go:86\ngithub.com/knative/eventing/pkg/provisioners.(*MessageReceiver).HandleRequest\n\t/usr/local/google/home/harwayne/go/src/github.com/knative/eventing/pkg/provisioners/message_receiver.go:132\ngithub.com/knative/eventing/pkg/sidecar/fanout.(*Handler).ServeHTTP\n\t/usr/local/google/home/harwayne/go/src/github.com/knative/eventing/pkg/sidecar/fanout/fanout_handler.go:91\ngithub.com/knative/eventing/pkg/sidecar/multichannelfanout.(*Handler).ServeHTTP\n\t/usr/local/google/home/harwayne/go/src/github.com/knative/eventing/pkg/sidecar/multichannelfanout/multi_channel_fanout_handler.go:128\ngithub.com/knative/eventing/pkg/sidecar/swappable.(*Handler).ServeHTTP\n\t/usr/local/google/home/harwayne/go/src/github.com/knative/eventing/pkg/sidecar/swappable/swappable.go:105\nnet/http.serverHandler.ServeHTTP\n\t/usr/lib/google-golang/src/net/http/server.go:2740\nnet/http.(*conn).serve\n\t/usr/lib/google-golang/src/net/http/server.go:1846"}
+```
+
+Then we know there was a problem posting to `http://svc.knative-debug.svc.cluster.local/`.
+
+TODO Finish this section. Especially after the Channel Dispatcher emits K8s events about failures.
+
+#### `fn`
+
+TODO Fill in this section.
+
+See `fn`'s Istio proxy logs:
+
+```shell
+kubectl -n knative-debug logs -l app=fn -c istio-proxy
+```
+
+# TODO Finish the guide.
--- a/eventing/debugging/example.yaml
+++ b/eventing/debugging/example.yaml
@ -0,0 +1,159 @@
+# This is a simple example that creates a source and sends events to a function.
+
+# The namespace the example lives in.
+
+apiVersion: v1
+kind: Namespace
+metadata:
+  name: knative-debug
+
+---
+
+# The event source.
+
+apiVersion: sources.eventing.knative.dev/v1alpha1
+kind: KubernetesEventSource
+metadata:
+  name: src
+  namespace: knative-debug
+spec:
+  namespace: knative-debug
+  serviceAccountName: service-account
+  sink:
+    apiVersion: eventing.knative.dev/v1alpha1
+    kind: Channel
+    name: chan
+
+---
+
+# The Channel events are sent to.
+
+apiVersion: eventing.knative.dev/v1alpha1
+kind: Channel
+metadata:
+  name: chan
+  namespace: knative-debug
+spec:
+  provisioner:
+    apiVersion: eventing.knative.dev/v1alpha1
+    kind: ClusterChannelProvisioner
+    name: in-memory-channel
+
+---
+
+# The Subscription to the Channel.
+
+apiVersion: eventing.knative.dev/v1alpha1
+kind: Subscription
+metadata:
+  name: sub
+  namespace: knative-debug
+spec:
+  channel:
+    apiVersion: eventing.knative.dev/v1alpha1
+    kind: Channel
+    name: chan
+  subscriber:
+    ref:
+      apiVersion: v1
+      kind: Service
+      name: svc
+
+---
+
+# K8s Service which points at the Deployment below.
+
+apiVersion: v1
+kind: Service
+metadata:
+  name: svc
+  namespace: knative-debug
+spec:
+  selector:
+    app: fn
+  ports:
+    - protocol: TCP
+      port: 80
+      targetPort: 8080
+
+---
+
+# K8s Deployment that simply writes input requests to its log.
+
+apiVersion: apps/v1
+kind: Deployment
+metadata:
+  name: fn
+  namespace: knative-debug
+spec:
+  replicas: 1
+  selector:
+    matchLabels:
+      app: fn
+  template:
+    metadata:
+      annotations:
+        sidecar.istio.io/inject: "true"
+      labels:
+        app: fn
+    spec:
+      containers:
+        - name: user-container
+          # This corresponds to
+          # https://github.com/knative/eventing-sources/blob/v0.2.1/cmd/message_dumper/dumper.go.
+          image: gcr.io/knative-releases/github.com/knative/eventing-sources/cmd/message_dumper@sha256:ab5391755f11a5821e7263686564b3c3cd5348522f5b31509963afb269ddcd63
+          ports:
+            - containerPort: 8080
+
+---
+
+# Everything after this is just structure for the above.
+
+---
+
+# K8s Service Account that runs `src`'s container.
+
+apiVersion: v1
+kind: ServiceAccount
+metadata:
+  name: service-account
+  namespace: knative-debug
+
+---
+
+# The permissions that `src` needs.
+
+apiVersion: rbac.authorization.k8s.io/v1
+kind: Role
+metadata:
+  creationTimestamp: null
+  name: event-watcher
+  namespace: knative-debug
+rules:
+  - apiGroups:
+      - ""
+    resources:
+      - events
+    verbs:
+      - get
+      - list
+      - watch
+
+---
+
+# Give `src`'s service account the necessary permissions.
+
+apiVersion: rbac.authorization.k8s.io/v1
+kind: RoleBinding
+metadata:
+  creationTimestamp: null
+  name: k8s-ra-event-watcher
+  namespace: knative-debug
+roleRef:
+  apiGroup: rbac.authorization.k8s.io
+  kind: Role
+  name: event-watcher
+subjects:
+  - kind: ServiceAccount
+    name: service-account
+    namespace: knative-debug
