Compile, deploy and run Kubeflow Pipeline using Github Actions.

This tutorial will go through how to use Github Actions togheter with kubeflow for MLOps. The goal with this set up is to improve set up speed, simplify deployments, improve versioning and reproducibility.

The tutorial will be based upon this Github Action.

Initial setup

Before starting with this tutorial the following things have to be in place:

• A GCP account.
• Kubeflow set up on GKE using IAP.
• A service account with access to your Kubeflow deployment, see here section "Setup and configuration" for example and needed accesses.
• The source code in a GitHub repository

Add secrets to Github repository

In order for the Github action to have access to the kubeflow deployment, secrets to github has to be added.

The following secrets has to be added:

• KUBEFLOW_URL - The url to your kubeflow deployment
• ENCODED_GOOGLE_APPLICATION_CREDENTIALS - Service account with access to kubeflow and rights to deploy, see here for example, the credentials needs to be bas64 encode:

cat path-to-key.json | base64

• CLIENT_ID - The IAP client id secret.

Here you can find how to add secrets.

Github action

To run the github action a github workflow has to be added to the following folder from the root of the repository:

.github/workflows/your_github_action_file.yml

This file should follow the convention of github workflows

The following is an example of a workflow file(can also be found in the file: "example_workflow.py").

name: Compile, Deploy and Run on Kubeflow
on: [push]

# Set environmental variables

jobs:
  build:
    runs-on: ubuntu-18.04
    steps:
    - name: checkout files in repo
      uses: actions/checkout@master


    - name: Submit Kubeflow pipeline
      id: kubeflow
      uses: NikeNano/kubeflow-github-action@master
      with:
        KUBEFLOW_URL: ${{ secrets.KUBEFLOW_URL }}
        ENCODED_GOOGLE_APPLICATION_CREDENTIALS: ${{ secrets.GKE_KEY }}
        GOOGLE_APPLICATION_CREDENTIALS: /tmp/gcloud-sa.json
        CLIENT_ID: ${{ secrets.CLIENT_ID }}
        PIPELINE_CODE_PATH: "example_pipeline.py"
        PIPELINE_FUNCTION_NAME: "flipcoin_pipeline"
        PIPELINE_PARAMETERS_PATH: "parameters.yaml"
        EXPERIMENT_NAME: "Default"
        RUN_PIPELINE: True
        VERSION_GITHUB_SHA: False

Github workflows can be given names, and in the example the name is set to: "Compile, Deploy and Run on Kubeflow". This name will then be the name of the action when it runs on Github.

The ON arguments is replate to which actions on github should this workflow be triggered on. For more info see here

"Runs on" defines which type of machine should the workflow be executed on, in this case it dont matter since we will use a action(NikeNano/kubeflow-github-action@master) which are containerize.

A Github workflow is splitted to steps,. where each step can run a command (python, bash, or whatever is installed on the machine) or a action. In this example the first step will check out the code. This is needed in order to access the source code from the repository. The firts step uses an action named "uses: actions/checkout@master", master here refers to the master branch of the repository where this action is open sourced.

The following step, named: "Submit Kubeflow pipeline" is the most interesting part for this tutorial. Within this step the connection to kubeflow is set up and depending on the user specified values. (see "with"). If you like to check the source code for the action used in this step you can find it here(you can find more info on how to build actions here).

For the action you need to specify the followng values in the "with" part:

• KUBEFLOW_URL: The URL to your kubeflow deployment
• GKE_KEY: Service account with access to kubeflow and rights to deploy, see here for example, the credentials needs to be bas64 encode:

cat path-to-key.json | base64

• GOOGLE_APPLICATION_CREDENTIALS: The path to where you like to store the secrets, which needs to be decoded from GKE_KEY
• CLIENT_ID: The IAP client secret
• PIPELINE_CODE_PATH: The full path to the python file containing the pipeline
• PIPELINE_FUNCTION_NAME: The name of the pipeline function the PIPELINE_CODE_PATH file
• PIPELINE_PARAMETERS_PATH: The pipeline parameters, path to yaml with the paramters, see file parameters.yaml for example.
• EXPERIMENT_NAME: The name of the kubeflow experiment within which the pipeline should run
• RUN_PIPELINE: If you like to also run the pipeline set "True"
• VERSION_GITHUB_SHA: If the pipeline containers are versioned with the github hash. Set to False. Will be update with example later.

Usage

If you use the github workflow defined above, the workflow will be triggered on a push. You can see the workflow running on the tab "Actions".

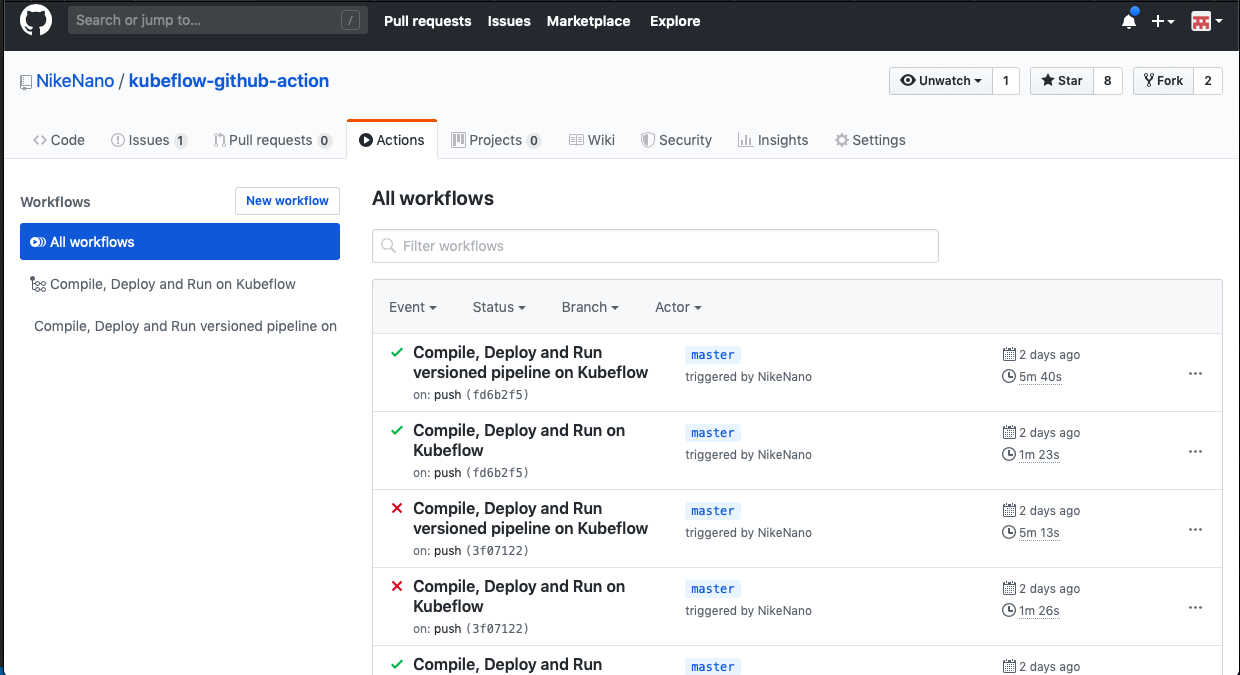

Figure 1

Figure 1 shows how the Github Actions view looks, here all historical and current runs are presented. A seperate run can be selected which will forward you as a user to the view presented in Figure 2.

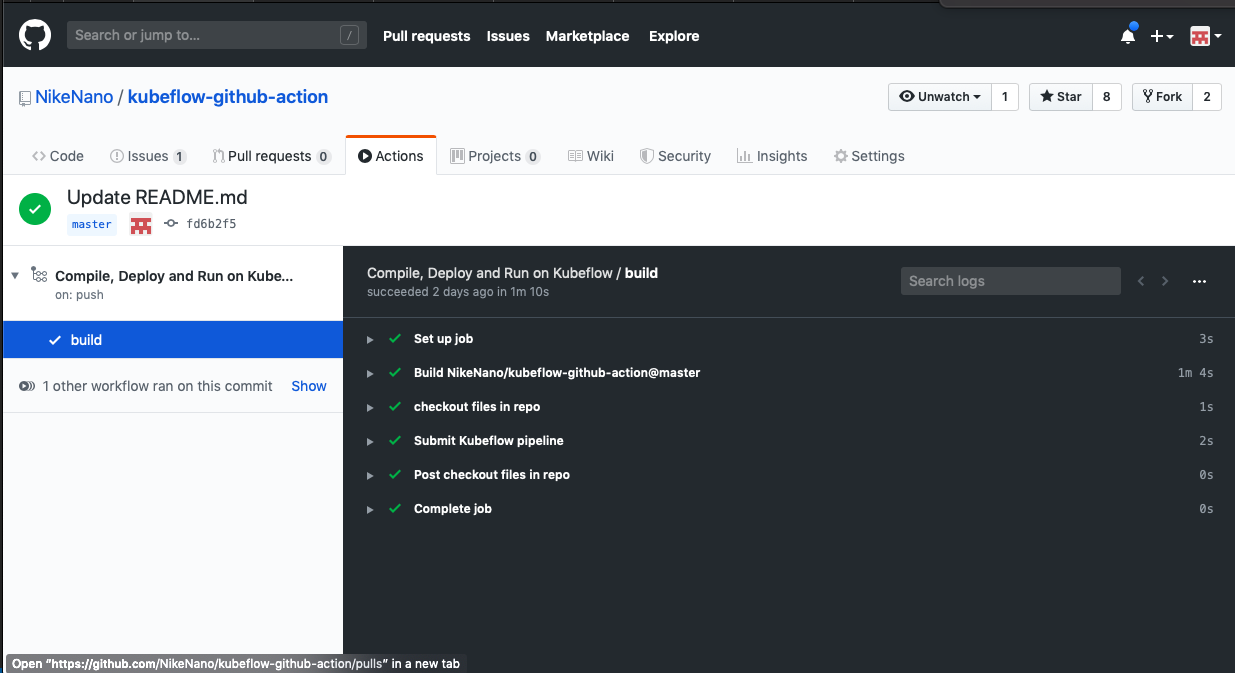

Figure 2

Figure 2 shows the steps in the action workflow and its execution, the green checkmarks indicates that it was succesfull. Each step in the workflow can be futher explored, see Figure 3 in which the "Submit Kubeflow Pipeline" step where selected.

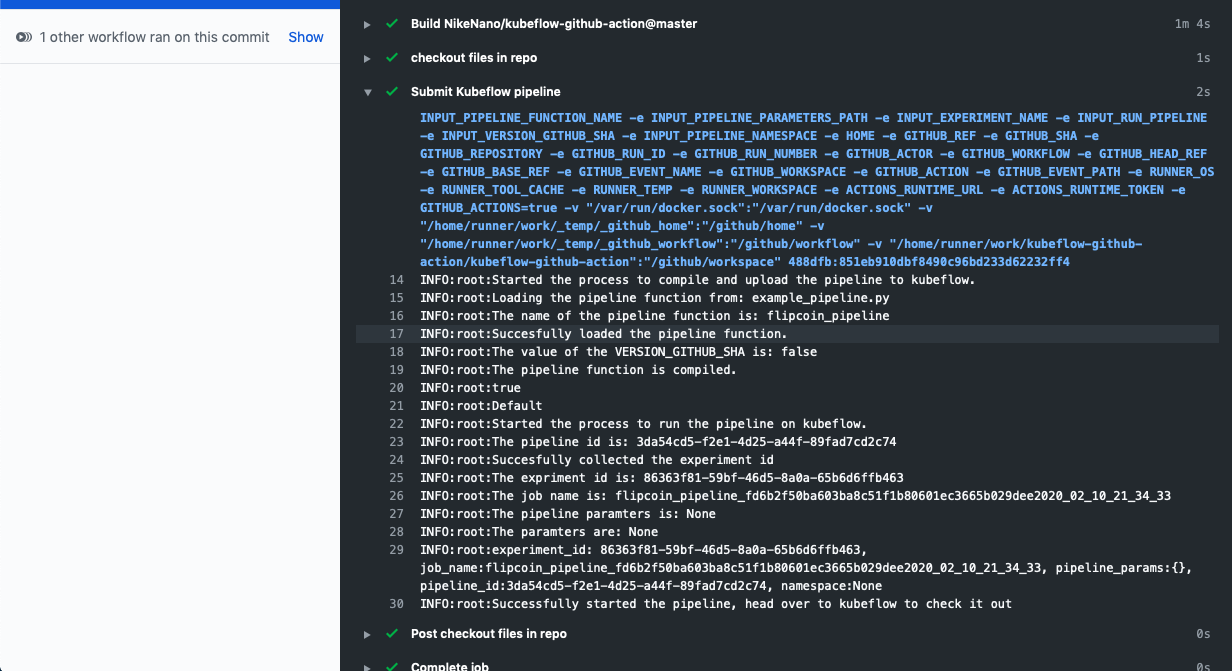

Figure 3

In step 3 the outputs from the step is presented. Here you can see some of the logging for the executed action.
