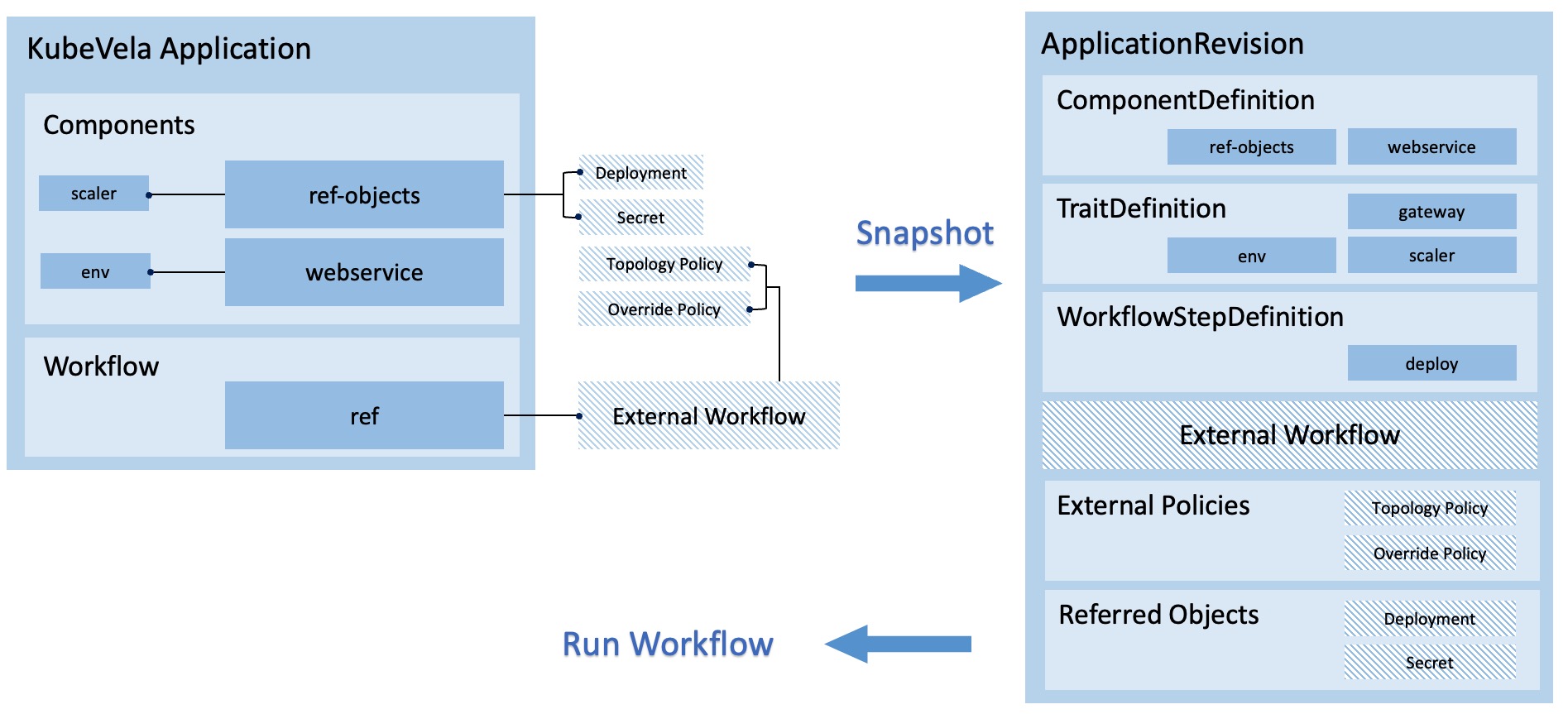

--- title: Application Version Control --- ## Introduction ![overall-arch](../resources/application-revision-arch.jpg) In KubeVela, ApplicationRevision keeps the snapshot of the application and all its runtime dependencies such as ComponentDefinition, external Policy or referred objects. This revision can be used to review the application changes and rollback to past configurations. In KubeVela v1.3+, for application which uses the `PublishVersion` feature, we support viewing the history revisions, checking the differences across revisions, rolling back to the latest succeeded revision and re-publishing past revisions. For application with the `app.oam.dev/publishVersion` annotation, the workflow runs are strictly controlled. The annotation, which is noted as *publishVersion* in the following paragraphs, is used to identify a static version of the application and its dependencies. When the annotation is updated to a new value, the application will generate a new revision no matter if the application spec or the dependencies are changed. It will then trigger a fresh new run of workflow after terminating the previous run. During the running of workflow, all related data are retrieved from the ApplicationRevision, which means the changes to the application spec or the dependencies will not take effects until a newer `publishVersion` is annotated. ## Use Guide Fo example, let's start with an application with external workflow and policies to deploy podinfo in managed clusters. :::tip We use reference of external workflow and policies, it works the same. You can refer to [Multi-cluster Application Delivery](../case-studies/multi-cluster.md) for more details. ::: ```yaml apiVersion: core.oam.dev/v1beta1 kind: Application metadata: name: podinfo namespace: examples annotations: app.oam.dev/publishVersion: alpha1 spec: components: - name: podinfo type: webservice properties: image: stefanprodan/podinfo:6.0.1 workflow: ref: make-release-in-hangzhou --- apiVersion: core.oam.dev/v1alpha1 kind: Policy metadata: name: override-high-availability namespace: examples type: override properties: components: - type: webservice traits: - type: scaler properties: replicas: 3 --- apiVersion: core.oam.dev/v1alpha1 kind: Policy metadata: name: topology-hangzhou-clusters namespace: examples type: topology properties: clusterLabelSelector: region: hangzhou --- apiVersion: core.oam.dev/v1alpha1 kind: Workflow metadata: name: make-release-in-hangzhou namespace: examples steps: - name: deploy-hangzhou type: deploy properties: policies: ["topology-hangzhou-clusters", "override-high-availability"] ``` You can check the application status by: ```shell vela status podinfo -n examples ```
expected output ``` About: Name: podinfo Namespace: examples Created at: 2022-04-13 19:32:02 +0800 CST Status: runningWorkflow Workflow: mode: DAG finished: false Suspend: false Terminated: false Steps - id:auqaxnbix2 name:deploy-hangzhou type:deploy phase:running message:wait healthy Services: - Name: podinfo Cluster: velad-003 Namespace: examples Type: webservice Unhealthy Ready:0/3 Traits: ✅ scaler - Name: podinfo Cluster: velad-002 Namespace: examples Type: webservice Unhealthy Ready:0/3 Traits: ✅ scaler ```
View all the related real-time resources by: ``` vela status podinfo -n examples --tree --detail ```
expected output ``` CLUSTER NAMESPACE RESOURCE STATUS APPLY_TIME DETAIL hangzhou1 ─── examples ─── Deployment/podinfo updated 2022-04-13 19:32:03 Ready: 3/3 Up-to-date: 3 Available: 3 Age: 4m16s hangzhou2 ─── examples ─── Deployment/podinfo updated 2022-04-13 19:32:03 Ready: 3/3 Up-to-date: 3 Available: 3 Age: 4m16s ```
This application should be successful after a while. Now if we edit the component image and set it to an invalid value, such as `stefanprodan/podinfo:6.0.xxx`. The application will not re-run the workflow to make this change take effect automatically. But the application spec changes, it means the next workflow run will update the deployment image. ### Inspect Changes across Revisions You can run `vela live-diff` to check revision difference: ``` vela live-diff podinfo -n examples ```
expected output ```yaml * Application (podinfo) has been modified(*) apiVersion: core.oam.dev/v1beta1 kind: Application metadata: annotations: app.oam.dev/publishVersion: alpha1 name: podinfo namespace: examples spec: components: - name: podinfo properties: - image: stefanprodan/podinfo:6.0.1 + image: stefanprodan/podinfo:6.0.xxx type: webservice workflow: ref: make-release-in-hangzhou status: {} * External Policy (topology-hangzhou-clusters) has no change * External Policy (override-high-availability) has no change * External Workflow (make-release-in-hangzhou) has no change ```
We can see all the changes of the application spec and the dependencies. Now let's make this change take effects. ### Publish a new app with specified revision There are two ways to publish an app with specified revision. You can choose any one of them. 1. Update the `publishVersion` annotation in the application to `alpha2` to trigger the re-run of workflow. ```yaml apiVersion: core.oam.dev/v1beta1 kind: Application metadata: name: podinfo namespace: examples annotations: - app.oam.dev/publishVersion: alpha1 + app.oam.dev/publishVersion: alpha2 ... ``` 2. Run `vela up --publish-version expected output ```bash NAME PUBLISH_VERSION SUCCEEDED HASH BEGIN_TIME STATUS SIZE podinfo-v1 alpha1 true 65844934c2d07288 2022-04-13 19:32:02 Succeeded 23.7 KiB podinfo-v2 alpha2 false 44124fb1a5146a4d 2022-04-13 19:46:50 Executing 23.7 KiB ``` ### Rollback to Last Successful Revision Before rolling back, we need to suspend the workflow of the application first. ``` vela workflow suspend podinfo -n examples ``` After the application workflow is suspended, run `vela workflow rollback podinfo -n examples`, the workflow will be rolled back and the application resources will restore to the succeeded state. ``` vela workflow rollback podinfo -n examples ```
expected output ```shell Find succeeded application revision podinfo-v1 (PublishVersion: alpha1) to rollback. Application spec rollback successfully. Application status rollback successfully. Application rollback completed. Application outdated revision cleaned up. ```
Now if we return back to see all the resources, we will find the resources have been turned back to use the valid image again. ```shell vela status podinfo -n examples --tree --detail --detail-format wide ```
expected output ``` CLUSTER NAMESPACE RESOURCE STATUS APPLY_TIME DETAIL hangzhou1 ─── examples ─── Deployment/podinfo updated 2022-04-13 19:32:03 Ready: 3/3 Up-to-date: 3 Available: 3 Age: 17m Containers: podinfo Images: stefanprodan/podinfo:6.0.1 Selector: app.oam.dev/component=podinfo hangzhou2 ─── examples ─── Deployment/podinfo updated 2022-04-13 19:32:03 Ready: 3/3 Up-to-date: 3 Available: 3 Age: 17m Containers: podinfo Images: stefanprodan/podinfo:6.0.1 Selector: app.oam.dev/component=podinfo ```
### Re-publish a History Revision :::note This feature is introduced after v1.3+. ::: Rolling back revision allows you to directly go back to the latest successful state. An alternative way is to re-publish an old revision, which will re-run the workflow but can go back to any revision that is still available. For example, you might have 2 successful revisions available to use. Let's list the history revision by: ```shell vela revision list podinfo -n examples ```
expected output ```shell NAME PUBLISH_VERSION SUCCEEDED HASH BEGIN_TIME STATUS SIZE podinfo-v1 alpha1 true 65844934c2d07288 2022-04-13 20:45:19 Succeeded 23.7 KiB podinfo-v2 alpha2 true 4acae1a66013283 2022-04-13 20:45:45 Succeeded 23.7 KiB podinfo-v3 alpha3 false 44124fb1a5146a4d 2022-04-13 20:46:28 Executing 23.7 KiB ```
Alternatively, you can directly run the following command to rollback to a specified revision: ``` vela up podinfo -n examples --revision podinfo-v1 --publish-version beta1 ``` This process will let the application to use the past revision and re-run the whole workflow. A new revision that is totally same with the specified one will be generated. ```shell NAME PUBLISH_VERSION SUCCEEDED HASH BEGIN_TIME STATUS SIZE podinfo-v1 alpha1 true 65844934c2d07288 2022-04-13 20:45:19 Succeeded 23.7 KiB podinfo-v2 alpha2 true 4acae1a66013283 2022-04-13 20:45:45 Succeeded 23.7 KiB podinfo-v3 alpha3 false 44124fb1a5146a4d 2022-04-13 20:46:28 Failed 23.7 KiB podinfo-v4 beta1 true 65844934c2d07288 2022-04-13 20:46:49 Succeeded 23.7 KiB ``` You can find that the *beta1* version shares the same hash with *alpha1* version. :::info By default, application will hold at most 10 revisions. If you want to modify this number, you can set it in the `--application-revision-limit` [bootstrap parameter](../platform-engineers/system-operation/bootstrap-parameters.md) of KubeVela controller. :::
