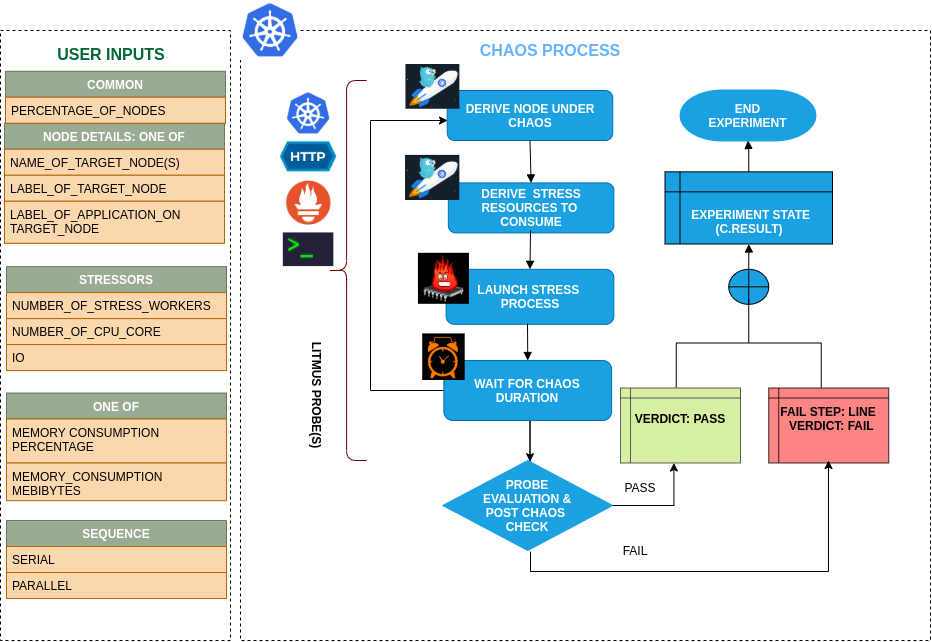

## Introduction - This experiment causes CPU resource exhaustion on the Kubernetes node. The experiment aims to verify resiliency of applications whose replicas may be evicted on account on nodes turning unschedulable (Not Ready) due to lack of CPU resources. - The CPU chaos is injected using a helper pod running the linux stress tool (a workload generator). The chaos is effected for a period equalling the TOTAL_CHAOS_DURATION Application implies services. Can be reframed as: Tests application resiliency upon replica evictions caused due to lack of CPU resources !!! tip "Scenario: Stress the CPU of node" ![Node CPU Hog](../../images/node-stress.png) ## Uses ??? info "View the uses of the experiment" coming soon ## Prerequisites ??? info "Verify the prerequisites" - Ensure that Kubernetes Version > 1.16 - Ensure that the Litmus Chaos Operator is running by executing kubectl get pods in operator namespace (typically, litmus).If not, install from here - Ensure that the node-cpu-hog experiment resource is available in the cluster by executing kubectl get chaosexperiments in the desired namespace. If not, install from here ## Default Validations ??? info "View the default validations" The target nodes should be in ready state before and after chaos injection. ## Minimal RBAC configuration example (optional) !!! tip "NOTE" If you are using this experiment as part of a litmus workflow scheduled constructed & executed from chaos-center, then you may be making use of the [litmus-admin](https://litmuschaos.github.io/litmus/litmus-admin-rbac.yaml) RBAC, which is pre installed in the cluster as part of the agent setup. ??? note "View the Minimal RBAC permissions" ```yaml --- apiVersion: v1 kind: ServiceAccount metadata: name: node-cpu-hog-sa namespace: default labels: name: node-cpu-hog-sa app.kubernetes.io/part-of: litmus --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: name: node-cpu-hog-sa labels: name: node-cpu-hog-sa app.kubernetes.io/part-of: litmus rules: # Create and monitor the experiment & helper pods - apiGroups: [""] resources: ["pods"] verbs: ["create","delete","get","list","patch","update", "deletecollection"] # Performs CRUD operations on the events inside chaosengine and chaosresult - apiGroups: [""] resources: ["events"] verbs: ["create","get","list","patch","update"] # Fetch configmaps details and mount it to the experiment pod (if specified) - apiGroups: [""] resources: ["configmaps"] verbs: ["get","list",] # Track and get the runner, experiment, and helper pods log - apiGroups: [""] resources: ["pods/log"] verbs: ["get","list","watch"] # for creating and managing to execute comands inside target container - apiGroups: [""] resources: ["pods/exec"] verbs: ["get","list","create"] # for configuring and monitor the experiment job by the chaos-runner pod - apiGroups: ["batch"] resources: ["jobs"] verbs: ["create","list","get","delete","deletecollection"] # for creation, status polling and deletion of litmus chaos resources used within a chaos workflow - apiGroups: ["litmuschaos.io"] resources: ["chaosengines","chaosexperiments","chaosresults"] verbs: ["create","list","get","patch","update","delete"] # for experiment to perform node status checks - apiGroups: [""] resources: ["nodes"] verbs: ["get","list"] --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: node-cpu-hog-sa labels: name: node-cpu-hog-sa app.kubernetes.io/part-of: litmus roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: node-cpu-hog-sa subjects: - kind: ServiceAccount name: node-cpu-hog-sa namespace: default ``` Use this sample RBAC manifest to create a chaosServiceAccount in the desired (app) namespace. This example consists of the minimum necessary role permissions to execute the experiment. ## Experiment tunables ??? info "check the experiment tunables"

Mandatory Fields

Variables Description Notes
TARGET_NODES Comma separated list of nodes, subjected to node cpu hog chaos
NODE_LABEL It contains node label, which will be used to filter the target nodes if TARGET_NODES ENV is not set It is mutually exclusive with the TARGET_NODES ENV. If both are provided then it will use the TARGET_NODES

Optional Fields

Variables Description Notes
TOTAL_CHAOS_DURATION The time duration for chaos insertion (seconds) Defaults to 60
LIB The chaos lib used to inject the chaos Defaults to litmus
LIB_IMAGE Image used to run the stress command Defaults to litmuschaos/go-runner:latest
RAMP_TIME Period to wait before & after injection of chaos in sec Optional
NODE_CPU_CORE Number of cores of node CPU to be consumed Defaults to 2
NODES_AFFECTED_PERC The Percentage of total nodes to target Defaults to 0 (corresponds to 1 node), provide numeric value only
SEQUENCE It defines sequence of chaos execution for multiple target pods Default value: parallel. Supported: serial, parallel
## Experiment Examples ### Common and Node specific tunables Refer the [common attributes](../common/common-tunables-for-all-experiments.md) and [Node specific tunable](common-tunables-for-node-experiments.md) to tune the common tunables for all experiments and node specific tunables. ### Node CPU Cores It contains number of cores of node CPU to be consumed. It can be tuned via `NODE_CPU_CORE` ENV. Use the following example to tune this: [embedmd]:# (https://raw.githubusercontent.com/litmuschaos/litmus/master/mkdocs/docs/experiments/categories/nodes/node-cpu-hog/node-cpu-core.yaml yaml) ```yaml # stress the cpu of the targeted nodes apiVersion: litmuschaos.io/v1alpha1 kind: ChaosEngine metadata: name: engine-nginx spec: engineState: "active" annotationCheck: "false" chaosServiceAccount: node-cpu-hog-sa experiments: - name: node-cpu-hog spec: components: env: # number of cpu cores to be stressed - name: NODE_CPU_CORE value: '2' - name: TOTAL_CHAOS_DURATION value: '60' ``` ### Node CPU Load It contains percentage of node CPU to be consumed. It can be tuned via `CPU_LOAD` ENV. Use the following example to tune this: [embedmd]:# (https://raw.githubusercontent.com/litmuschaos/litmus/master/mkdocs/docs/experiments/categories/nodes/node-cpu-hog/node-cpu-load.yaml yaml) ```yaml # stress the cpu of the targeted nodes by load percentage apiVersion: litmuschaos.io/v1alpha1 kind: ChaosEngine metadata: name: engine-nginx spec: engineState: "active" annotationCheck: "false" chaosServiceAccount: node-cpu-hog-sa experiments: - name: node-cpu-hog spec: components: env: # percentage of cpu to be stressed - name: CPU_LOAD value: "100" # node cpu core should be provided as 0 for cpu load # to work otherwise it will take cpu core as priority - name: NODE_CPU_CORE value: '0' - name: TOTAL_CHAOS_DURATION value: '60' ```
