Send HTTP Requests on Workflow

Chaos Mesh Workflow provides a Task node to support any workload, similar to Kubernetes Job. To make the user experience more convenient, Chaos Dashboard provides a template based on Task to create HTTP requests in WebUI.

Chaos Mesh Workflow provides a Task node to support any workload, which function is similar to the Job in Kubernetes. To provide a better user experience, Chaos Dashboard provides a template based on Task. With this template, you can easily create HTTP requests in WebUI. This document describes how to create an HTTP request through Chaos Dashboard.

:::note

Chaos Mesh does NOT have the workflow node of the type HTTPRequest. This feature is based on Task node, and you can send HTTP requests more conveniently by using the feature.

:::

:::note

This feature is currently an experimental feature, so it is not recommended to use this feature in the production environment. The configuration and behavior of the feature might change in the future.

:::

Create an HTTP request through Chaos Dashboard

You can create an HTTP request in Chaos Dashboard as the following steps that take sending a message through Slack Webhook as an example.

Step 1. Create a workflow node with the type HTTPRequest

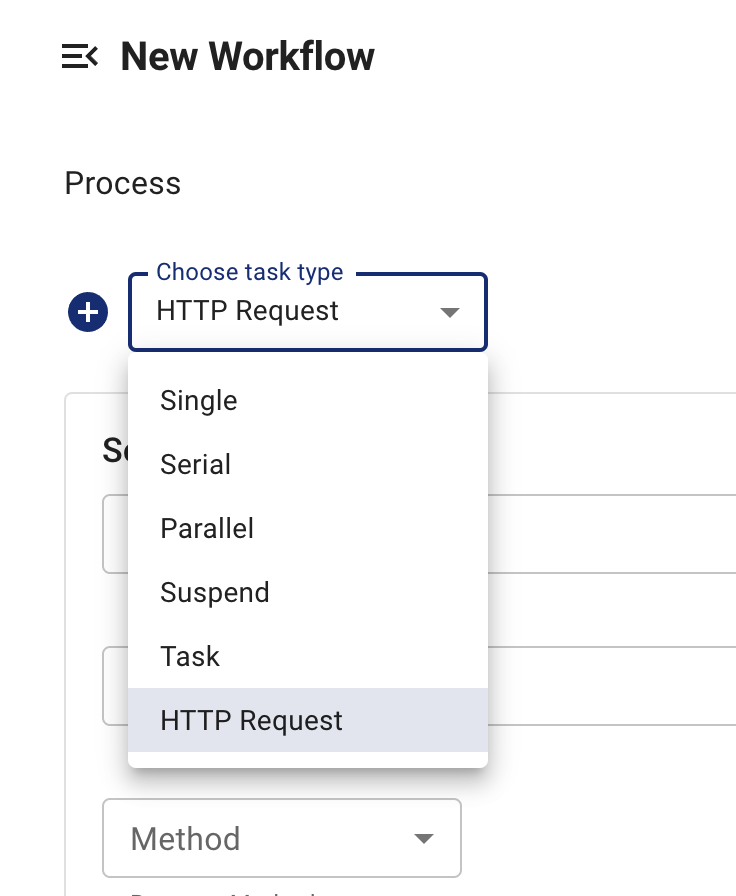

Select "HTTP Request" as the task type:

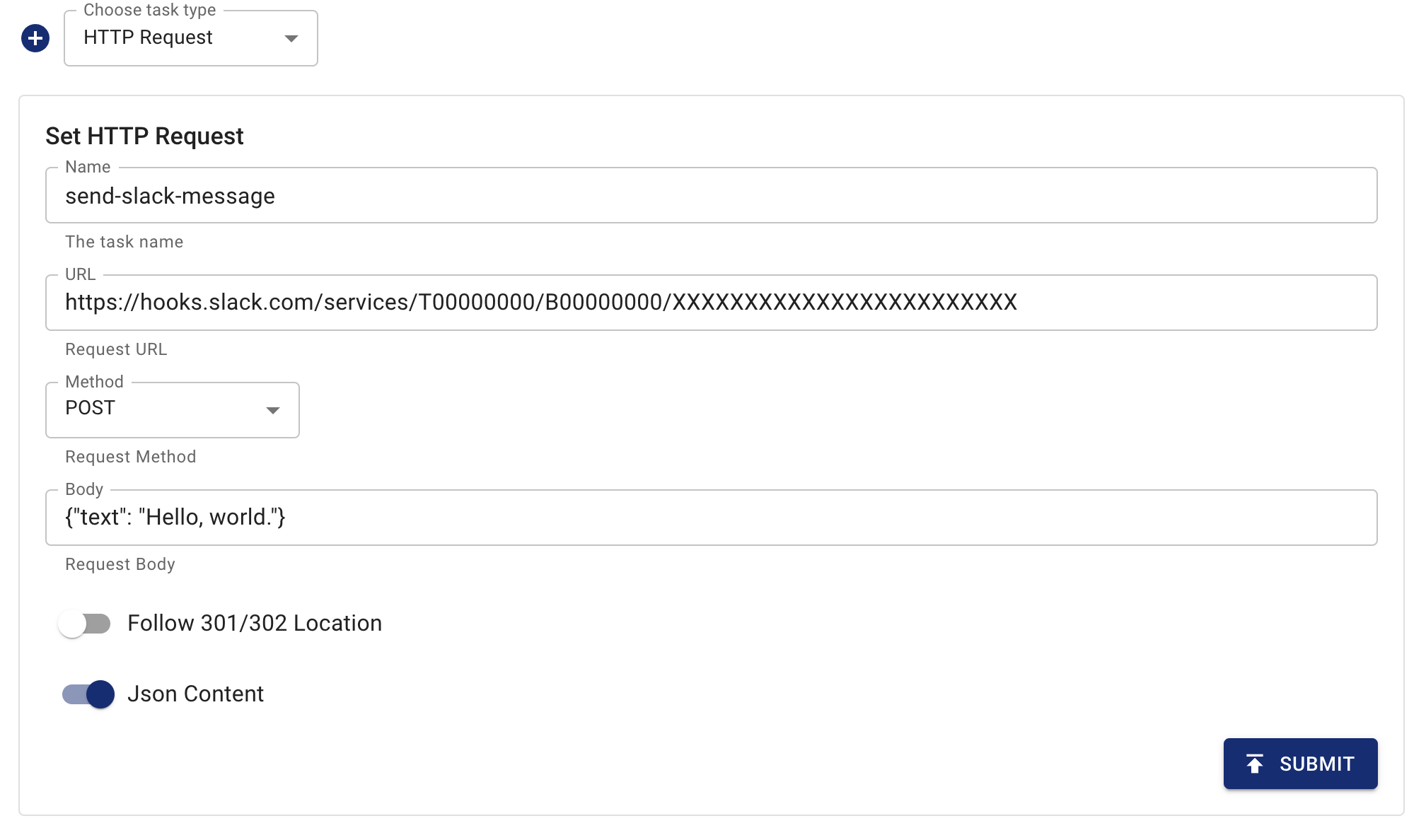

Step 2. Configure an HTTP request

Configure the followings:

• node name: send-slack-message
• request URL: https://hooks.slack.com/services/T00000000/B00000000/XXXXXXXXXXXXXXXXXXXXXXXX
• request method: POST
• request body: {"text": "Hello, world."} , then check "For JSON content".

Step 3. Submit the workflow node

Click the "Submit" button to see the task in the preview window:

Field description

Parameter	Type	Description	Default value	Required	Example
Name	string	Name of the workflow node		Yes	send-slack-message
URL	string	URL of an HTTP request		Yes	https://hooks.slack.com/services/T00000000/B00000000/XXXXXXXXXXXXXXXXXXXXXXXX
Method	string	Method of an HTTP request		Yes	POST
Body	string	Body of an HTTP request		No	{"text": "Hello, world."}
Follow 301/302 Location	boolean	The value of this parameter corresponds to the -L parameter of curl.	false	No	false
Json Content	boolean	The parameter appends Content-Type: application/json to the header of an HTTP request.	false	No	false

The value of the name field of the generated task node adds the suffix http-request to the end of "name".
