Examples
Table of Contents
Hello World Example
Description
This example uses two relay states. The "Hello" state statically injects the following JSON into its data input:
{
"result": "Hello"
}
which then becomes the data input of the transition "World" state.
The "World" state merges its data input with it's injected JSON and uses a filter to set its data output to the
value of the "result" property. Since it is an end state, it's data output becomes the workflow data output:
"Hello World!"
Workflow Definition
| JSON |
YAML |
{
"id": "helloworld",
"version": "1.0",
"name": "Hello World Workflow",
"description": "Static Hello World",
"startsAt": "Hello",
"states":[
{
"name":"Hello",
"type":"RELAY",
"inject": {
"result": "Hello"
},
"transition": {
"nextState": "World"
}
},
{
"name":"World",
"type":"RELAY",
"inject": {
"result": " World!"
},
"stateDataFilter": {
"dataOutputPath": "$.result"
},
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: helloworld
version: '1.0'
name: Hello World Workflow
description: Static Hello World
startsAt: Hello
states:
- name: Hello
type: RELAY
inject:
result: Hello
transition:
nextState: World
- name: World
type: RELAY
inject:
result: " World!"
stateDataFilter:
dataOutputPath: "$.result"
end:
type: DEFAULT
|
Workflow Diagram
Greeting Example
Description
This example shows a single Operation state with one action that calls the "greeting" function.
The workflow data input is assumed to be the name of the person to greet:
{
"greet": {
"name": "John"
}
}
The results of the action is assumed to be the full greeting for the provided persons name:
{
"payload": {
"greeting": "Welcome to Serverless Workflow, John!"
}
}
The states action data filter selects the greeting object from the function return to be placed into the state data.
Then the states state data filter selects only the greeting object to be returned as its data output, which
becomes the workflow data output (as it is an end state):
"Welcome to Serverless Workflow, John!"
Workflow Definition
| JSON |
YAML |
{
"id": "greeting",
"version": "1.0",
"name": "Greeting Workflow",
"description": "Greet Someone",
"startsAt": "Greet",
"functions": [
{
"name": "greetingFunction",
"resource": "functionResourse"
}
],
"states":[
{
"name":"Greet",
"type":"OPERATION",
"actionMode":"SEQUENTIAL",
"actions":[
{
"functionRef": {
"refName": "greetingFunction",
"parameters": {
"name": "$.greet.name"
}
},
"actionDataFilter": {
"dataResultsPath": "$.payload.greeting"
}
}
],
"stateDataFilter": {
"dataOutputPath": "$.greeting"
},
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: greeting
version: '1.0'
name: Greeting Workflow
description: Greet Someone
startsAt: Greet
functions:
- name: greetingFunction
resource: functionResourse
states:
- name: Greet
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: greetingFunction
parameters:
name: "$.greet.name"
actionDataFilter:
dataResultsPath: "$.payload.greeting"
stateDataFilter:
dataOutputPath: "$.greeting"
end:
type: DEFAULT
|
Workflow Diagram
Event Based Greeting Example
Description
This example shows a single Event state with one action that calls the "greeting" function.
The event state consumes cloud events of type "greetingEventType". When an even with this type
is consumed, the Event state performs a single action that calls the defined "greeting" function.
For the sake of the example we assume that the cloud event we will consume has the format:
{
"specversion" : "1.0",
"type" : "greetingEventType",
"source" : "greetingEventSource",
"data" : {
"greet": {
"name": "John"
}
}
}
The results of the action is assumed to be the full greeting for the provided persons name:
{
"payload": {
"greeting": "Welcome to Serverless Workflow, John!"
}
}
Note that in the workflow definition you can see two filters defined. The event data filter defined inside the consume element:
{
"eventDataFilter": {
"dataOutputPath": "$.data.greet"
}
}
which is triggered when the greeting event is consumed. It extracts its "data.greet" of the event and
merges it with the states data.
The second, a state data filter, which is defined on the event state itself:
{
"stateDataFilter": {
"dataOutputPath": "$.payload.greeting"
}
}
filters what is selected to be the state data output which then becomes the workflow data output (as it is an end state):
"Welcome to Serverless Workflow, John!"
Workflow Definition
| JSON |
YAML |
{
"id": "eventbasedgreeting",
"version": "1.0",
"name": "Event Based Greeting Workflow",
"description": "Event Based Greeting",
"startsAt": "Greet",
"events": [
{
"name": "GreetingEvent",
"type": "greetingEventType",
"source": "greetingEventSource"
}
],
"functions": [
{
"name": "greetingFunction",
"resource": "functionResourse"
}
],
"states":[
{
"name":"Greet",
"type":"EVENT",
"eventsActions": [{
"eventRefs": ["GreetingEvent"],
"eventDataFilter": {
"inputPath": "$.data.greet"
},
"actions":[
{
"functionRef": {
"refName": "greetingFunction",
"parameters": {
"name": "$.greet.name"
}
}
}
]
}],
"stateDataFilter": {
"dataOutputPath": "$.payload.greeting"
},
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: eventbasedgreeting
version: '1.0'
name: Event Based Greeting Workflow
description: Event Based Greeting
startsAt: Greet
events:
- name: GreetingEvent
type: greetingEventType
source: greetingEventSource
functions:
- name: greetingFunction
resource: functionResourse
states:
- name: Greet
type: EVENT
eventsActions:
- eventRefs:
- GreetingEvent
eventDataFilter:
inputPath: "$.data.greet"
actions:
- functionRef:
refName: greetingFunction
parameters:
name: "$.greet.name"
stateDataFilter:
dataOutputPath: "$.payload.greeting"
end:
type: DEFAULT
|
Workflow Diagram
Solving Math Problems Example
Description
In this example we show how to iterate over some data input using the ForEach state.
The state will iterate over a collection of simple math expressions which are
passed in as the workflow data input:
{
"expressions": ["2+2", "4-1", "10x3", "20/2"]
}
The ForEach state will execute a single defined operation state for each math expression. The operation
state contains an action which calls a serverless function which actually solves the expression
and returns its result.
Results of all math expressions are accumulated into the data output of the ForEach state which become the final
result of the workflow execution.
Workflow Definition
| JSON |
YAML |
{
"id": "solvemathproblems",
"version": "1.0",
"name": "Solve Math Problems Workflow",
"description": "Solve math problems",
"startsAt": "Solve",
"functions": [
{
"name": "solveMathExpressionFunction",
"resource": "functionResourse"
}
],
"states":[
{
"name":"Solve",
"type":"FOREACH",
"inputCollection": "$.expressions",
"inputParameter": "$.singleexpression",
"outputCollection": "$.results",
"startsAt": "GetResults",
"states": [
{
"name":"GetResults",
"type":"OPERATION",
"actionMode":"SEQUENTIAL",
"actions":[
{
"functionRef": {
"refName": "solveMathExpressionFunction",
"parameters": {
"expression": "$.singleexpression"
}
}
}
],
"end": {
"type": "DEFAULT"
}
}
],
"stateDataFilter": {
"dataOutputPath": "$.results"
},
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: solvemathproblems
version: '1.0'
name: Solve Math Problems Workflow
description: Solve math problems
startsAt: Solve
functions:
- name: solveMathExpressionFunction
resource: functionResourse
states:
- name: Solve
type: FOREACH
inputCollection: "$.expressions"
inputParameter: "$.singleexpression"
outputCollection: "$.results"
startsAt: GetResults
states:
- name: GetResults
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: solveMathExpressionFunction
parameters:
expression: "$.singleexpression"
end:
type: DEFAULT
stateDataFilter:
dataOutputPath: "$.results"
end:
type: DEFAULT
|
Workflow Diagram
Parallel Execution Example
Description
This example uses a parallel state to execute two branches (simple wait states) at the same time.
Note that the waitForCompletion flag is set to "false" so as soon as the "ShortDelay" delay state finishes,
the workflow complete execution. If waitForCompletion was set to true, the workflow would complete after both
of the branches are done.
Workflow Definition
| JSON |
YAML |
{
"id": "parallelexec",
"version": "1.0",
"name": "Parallel Execution Workflow",
"description": "Executes two branches in parallel",
"startsAt": "ParallelExec",
"states":[
{
"name":"ParallelExec",
"type":"PARALLEL",
"branches": [
{
"name": "Branch1",
"startsAt": "ShortDelay",
"states": [
{
"name":"ShortDelay",
"type":"DELAY",
"timeDelay": "PT15S",
"end": {
"type": "DEFAULT"
}
}
],
"waitForCompletion": false
},
{
"name": "Branch2",
"startsAt": "LongDelay",
"states": [
{
"name":"LongDelay",
"type":"DELAY",
"timeDelay": "PT2M",
"end": {
"type": "DEFAULT"
}
}
],
"waitForCompletion": false
}
],
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: parallelexec
version: '1.0'
name: Parallel Execution Workflow
description: Executes two branches in parallel
startsAt: ParallelExec
states:
- name: ParallelExec
type: PARALLEL
branches:
- name: Branch1
startsAt: ShortDelay
states:
- name: ShortDelay
type: DELAY
timeDelay: PT15S
end:
type: DEFAULT
waitForCompletion: false
- name: Branch2
startsAt: LongDelay
states:
- name: LongDelay
type: DELAY
timeDelay: PT2M
end:
type: DEFAULT
waitForCompletion: false
end:
type: DEFAULT
|
Workflow Diagram
Applicant Request Decision Example
Description
This example shows off the switch state and the subflow state. The workflow is started with application information data as input:
{
"applicant": {
"fname": "John",
"lname": "Stockton",
"age": 22,
"email": "js@something.com"
}
}
We use the switch state with two choices to determine if the application should be made based on the applicants age.
If the applicants age is over 18 we start the application (subflow state). Otherwise the workflow notifies the
applicant of the rejection.
Workflow Definition
| JSON |
YAML |
{
"id": "applicantrequest",
"version": "1.0",
"name": "Applicant Request Decision Workflow",
"description": "Determine if applicant request is valid",
"startsAt": "CheckApplication",
"functions": [
{
"name": "sendRejectionEmailFunction",
"resource": "functionResourse"
}
],
"states":[
{
"name":"CheckApplication",
"type":"SWITCH",
"choices": [
{
"path": "$.applicant.age",
"value": "18",
"operator": "GreaterThanEquals",
"transition": {
"nextState": "StartApplication"
}
},
{
"path": "$.applicant.age",
"value": "18",
"operator": "LessThan",
"transition": {
"nextState": "RejectApplication"
}
}
],
"default": {
"nextState": "RejectApplication"
}
},
{
"name": "StartApplication",
"type": "SUBFLOW",
"workflowId": "startApplicationWorkflowId",
"end": {
"type": "DEFAULT"
}
},
{
"name":"RejectApplication",
"type":"OPERATION",
"actionMode":"SEQUENTIAL",
"actions":[
{
"functionRef": {
"refName": "sendRejectionEmailFunction",
"parameters": {
"applicant": "$.applicant"
}
}
}
],
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: applicantrequest
version: '1.0'
name: Applicant Request Decision Workflow
description: Determine if applicant request is valid
startsAt: CheckApplication
functions:
- name: sendRejectionEmailFunction
resource: functionResourse
states:
- name: CheckApplication
type: SWITCH
choices:
- path: "$.applicant.age"
value: '18'
operator: GreaterThanEquals
transition:
nextState: StartApplication
- path: "$.applicant.age"
value: '18'
operator: LessThan
transition:
nextState: RejectApplication
default:
nextState: RejectApplication
- name: StartApplication
type: SUBFLOW
workflowId: startApplicationWorkflowId
end:
type: DEFAULT
- name: RejectApplication
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: sendRejectionEmailFunction
parameters:
applicant: "$.applicant"
end:
type: DEFAULT
|
Workflow Diagram
Provision Orders Example
Description
In this example we show off the states error handling capability. The workflow data input that's passed in contains
missing order information that causes the function in the "ProvisionOrder" state to throw a runtime exception. With the "onError" expression we
can transition the workflow to different error handling states depending on the error thrown. Each type of error
in this example is handled by simple delay states, each including an error data filter which sets the exception info as their
data output. If no error is caught the workflow can transition to the "ApplyOrder" state.
Workflow data is assumed to me:
{
"order": {
"id": "",
"item": "laptop",
"quantity": "10"
}
}
The data output of the workflow contains the information of the exception caught during workflow execution.
Workflow Definition
| JSON |
YAML |
{
"id": "provisionorders",
"version": "1.0",
"name": "Provision Orders",
"description": "Provision Orders and handle errors thrown",
"startsAt": "ProvisionOrder",
"functions": [
{
"name": "provisionOrderFunction",
"resource": "functionResourse"
}
],
"states":[
{
"name":"ProvisionOrder",
"type":"OPERATION",
"actionMode":"SEQUENTIAL",
"actions":[
{
"functionRef": {
"refName": "provisionOrderFunction",
"parameters": {
"order": "$.order"
}
}
}
],
"onError": [
{
"expression": {
"language": "spel",
"body": "name eq 'MissingOrderIdException'"
},
"transition": {
"nextState": "MissingId"
}
},
{
"expression": {
"language": "spel",
"body": "name eq 'MissingOrderItemException'"
},
"transition": {
"nextState": "MissingItem"
}
},
{
"expression": {
"language": "spel",
"body": "name eq 'MissingOrderQuantityException'"
},
"transition": {
"nextState": "MissingQuantity"
}
}
],
"stateDataFilter": {
"dataOutputPath": "$.exception"
},
"transition": {
"nextState":"ApplyOrder"
}
},
{
"name": "MissingId",
"type": "SUBFLOW",
"workflowId": "handleMissingIdExceptionWorkflow",
"end": {
"type": "DEFAULT"
}
},
{
"name": "MissingItem",
"type": "SUBFLOW",
"workflowId": "handleMissingItemExceptionWorkflow",
"end": {
"type": "DEFAULT"
}
},
{
"name": "MissingQuantity",
"type": "SUBFLOW",
"workflowId": "handleMissingQuantityExceptionWorkflow",
"end": {
"type": "DEFAULT"
}
},
{
"name": "ApplyOrder",
"type": "SUBFLOW",
"workflowId": "applyOrderWorkflowId",
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: provisionorders
version: '1.0'
name: Provision Orders
description: Provision Orders and handle errors thrown
startsAt: ProvisionOrder
functions:
- name: provisionOrderFunction
resource: functionResourse
states:
- name: ProvisionOrder
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: provisionOrderFunction
parameters:
order: "$.order"
onError:
- expression:
language: spel
body: name eq 'MissingOrderIdException'
transition:
nextState: MissingId
- expression:
language: spel
body: name eq 'MissingOrderItemException'
transition:
nextState: MissingItem
- expression:
language: spel
body: name eq 'MissingOrderQuantityException'
transition:
nextState: MissingQuantity
stateDataFilter:
dataOutputPath: "$.exception"
transition:
nextState: ApplyOrder
- name: MissingId
type: SUBFLOW
workflowId: handleMissingIdExceptionWorkflow
end:
type: DEFAULT
- name: MissingItem
type: SUBFLOW
workflowId: handleMissingItemExceptionWorkflow
end:
type: DEFAULT
- name: MissingQuantity
type: SUBFLOW
workflowId: handleMissingQuantityExceptionWorkflow
end:
type: DEFAULT
- name: ApplyOrder
type: SUBFLOW
workflowId: applyOrderWorkflowId
end:
type: DEFAULT
|
Workflow Diagram
Monitor Job Example
Description
In this example we submit a job via an operation state action (serverless function call). It is assumed that it takes some time for
the submitted job to complete and that it's completion can be checked via another separate serverless function call.
To check for completion we first wait 5 seconds and then get the results of the "CheckJob" serverless function.
Depending on the results of this we either return the results or transition back to waiting and checking the job completion.
This is done until the job submission returns "SUCCEEDED" or "FAILED" and the job submission results are reported before workflow
finishes execution.
In the case job submission raises a runtime error, we transition to a SubFlow state which handles the job submission issue.
Workflow Definition
| JSON |
YAML |
{
"id": "jobmonitoring",
"version": "1.0",
"name": "Job Monitoring",
"description": "Monitor finished execution of a submitted job",
"startsAt": "SubmitJob",
"functions": [
{
"name": "submitJob",
"resource": "submitJobResource"
},
{
"name": "checkJobStatus",
"resource": "checkJobStatusResource"
},
{
"name": "reportJobSuceeded",
"resource": "reportJobSuceededResource"
},
{
"name": "reportJobFailed",
"resource": "reportJobFailedResource"
}
],
"states":[
{
"name":"SubmitJob",
"type":"OPERATION",
"actionMode":"SEQUENTIAL",
"actions":[
{
"functionRef": {
"refName": "submitJob",
"parameters": {
"name": "$.job.name"
}
},
"actionDataFilter": {
"dataResultsPath": "$.jobuid"
}
}
],
"onError": [
{
"expression": {
"language": "spel",
"body": "$.exception != null"
},
"errorDataFilter": {
"dataOutputPath": "$.exception"
},
"transition": {
"nextState": "SubmitError"
}
}
],
"stateDataFilter": {
"dataOutputPath": "$.jobuid"
},
"transition": {
"nextState":"WaitForCompletion"
}
},
{
"name": "SubmitError",
"type": "SUBFLOW",
"workflowId": "handleJobSubmissionErrorWorkflow",
"end": {
"type": "DEFAULT"
}
},
{
"name": "WaitForCompletion",
"type": "DELAY",
"timeDelay": "PT5S",
"transition": {
"nextState":"GetJobStatus"
}
},
{
"name":"GetJobStatus",
"type":"OPERATION",
"actionMode":"SEQUENTIAL",
"actions":[
{
"functionRef": {
"refName": "checkJobStatus",
"parameters": {
"name": "$.jobuid"
}
},
"actionDataFilter": {
"dataResultsPath": "$.jobstatus"
}
}
],
"stateDataFilter": {
"dataOutputPath": "$.jobstatus"
},
"transition": {
"nextState":"DetermineCompletion"
}
},
{
"name":"DetermineCompletion",
"type":"SWITCH",
"choices": [
{
"path": "$.jobstatus",
"value": "SUCCEEDED",
"operator": "Equals",
"transition": {
"nextState": "JobSucceeded"
}
},
{
"path": "$.jobstatus",
"value": "FAILED",
"operator": "Equals",
"transition": {
"nextState": "JobFailed"
}
}
],
"default": {
"nextState": "WaitForCompletion"
}
},
{
"name":"JobSucceeded",
"type":"OPERATION",
"actionMode":"SEQUENTIAL",
"actions":[
{
"functionRef": {
"refName": "reportJobSuceeded",
"parameters": {
"name": "$.jobuid"
}
}
}
],
"end": {
"type": "DEFAULT"
}
},
{
"name":"JobFailed",
"type":"OPERATION",
"actionMode":"SEQUENTIAL",
"actions":[
{
"functionRef": {
"refName": "reportJobFailed",
"parameters": {
"name": "$.jobuid"
}
}
}
],
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: jobmonitoring
version: '1.0'
name: Job Monitoring
description: Monitor finished execution of a submitted job
startsAt: SubmitJob
functions:
- name: submitJob
resource: submitJobResource
- name: checkJobStatus
resource: checkJobStatusResource
- name: reportJobSuceeded
resource: reportJobSuceededResource
- name: reportJobFailed
resource: reportJobFailedResource
states:
- name: SubmitJob
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: submitJob
parameters:
name: "$.job.name"
actionDataFilter:
dataResultsPath: "$.jobuid"
onError:
- expression:
language: spel
body: name != null
transition:
nextState: SubmitError
stateDataFilter:
dataOutputPath: "$.jobuid"
transition:
nextState: WaitForCompletion
- name: SubmitError
type: SUBFLOW
workflowId: handleJobSubmissionErrorWorkflow
end:
type: DEFAULT
- name: WaitForCompletion
type: DELAY
timeDelay: PT5S
transition:
nextState: GetJobStatus
- name: GetJobStatus
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: checkJobStatus
parameters:
name: "$.jobuid"
actionDataFilter:
dataResultsPath: "$.jobstatus"
stateDataFilter:
dataOutputPath: "$.jobstatus"
transition:
nextState: DetermineCompletion
- name: DetermineCompletion
type: SWITCH
choices:
- path: "$.jobstatus"
value: SUCCEEDED
operator: Equals
transition:
nextState: JobSucceeded
- path: "$.jobstatus"
value: FAILED
operator: Equals
transition:
nextState: JobFailed
default:
nextState: WaitForCompletion
- name: JobSucceeded
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: reportJobSuceeded
parameters:
name: "$.jobuid"
end:
type: DEFAULT
- name: JobFailed
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: reportJobFailed
parameters:
name: "$.jobuid"
end:
type: DEFAULT
|
Workflow Diagram

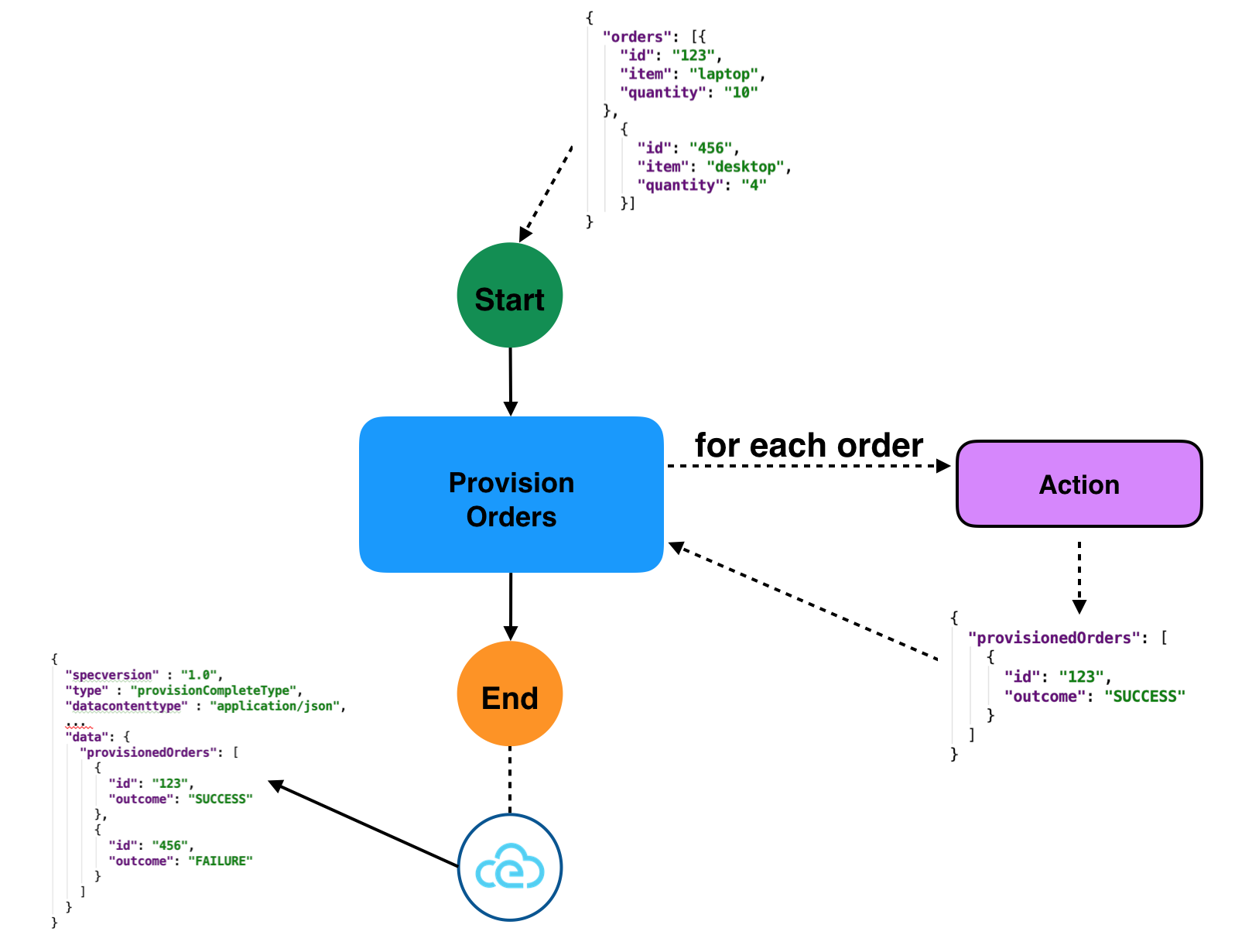

Send CloudEvent On Workfow Completion Example
Description
This example shows how we can produce a CloudEvent on completion of a workflow. Let's say we have the following
workflow data:
{
"orders": [{
"id": "123",
"item": "laptop",
"quantity": "10"
},
{
"id": "456",
"item": "desktop",
"quantity": "4"
}]
}
Our workflow in this example uses a ForEach state to provision the orders in parallel. The "provisionOrder" function
used is assumed to have the following results:
{
"provisionedOrders": [
{
"id": "123",
"outcome": "SUCCESS"
}
]
}
After orders have been provisioned the ForEach states defines the end property which stops workflow execution.
It defines its end definition to be of type "EVENT" in which case a CloudEvent will be produced which can be consumed
by other orchestration workflows or other interested consumers.
Note that we define the event to be produced in the workflows "events" property.
The data attached to the event contains the information on provisioned orders by this workflow. So the produced
CloudEvent upon completion of the workflow could look like:
{
"specversion" : "1.0",
"type" : "provisionCompleteType",
"datacontenttype" : "application/json",
...
"data": {
"provisionedOrders": [
{
"id": "123",
"outcome": "SUCCESS"
},
{
"id": "456",
"outcome": "FAILURE"
}
]
}
}
Workflow Definition
| JSON |
YAML |
{
"id": "sendcloudeventonprovision",
"version": "1.0",
"name": "Send CloudEvent on provision completion",
"startsAt": "ProvisionOrdersState",
"events": [
{
"name": "provisioningCompleteEvent",
"type": "provisionCompleteType",
"source": "provisionCompleteSource"
}
],
"functions": [
{
"name": "provisionOrderFunction",
"resource": "functionResourse"
}
],
"states": [
{
"name": "ProvisionOrdersState",
"type": "FOREACH",
"inputCollection": "$.orders",
"inputParameter": "$.singleorder",
"outputCollection": "$.results",
"startsAt": "DoProvision",
"states": [
{
"name": "DoProvision",
"type": "OPERATION",
"actionMode": "SEQUENTIAL",
"actions": [
{
"functionRef": {
"refName": "provisionOrderFunction",
"parameters": {
"order": "$.order"
}
}
}
],
"end": {
"type": "DEFAULT"
}
}
],
"stateDataFilter": {
"dataOutputPath": "$.provisionedOrders"
},
"end": {
"type": "EVENT",
"produceEvent": {
"nameRef": "provisioningCompleteEvent",
"data": "$.provisionedOrders"
}
}
}
]
}
|
id: sendcloudeventonprovision
version: '1.0'
name: Send CloudEvent on provision completion
startsAt: ProvisionOrdersState
events:
- name: provisioningCompleteEvent
type: provisionCompleteType
source: provisionCompleteSource
functions:
- name: provisionOrderFunction
resource: functionResourse
states:
- name: ProvisionOrdersState
type: FOREACH
inputCollection: "$.orders"
inputParameter: "$.singleorder"
outputCollection: "$.results"
startsAt: DoProvision
states:
- name: DoProvision
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: provisionOrderFunction
parameters:
order: "$.order"
end:
type: DEFAULT
stateDataFilter:
dataOutputPath: "$.provisionedOrders"
end:
type: EVENT
produceEvent:
nameRef: provisioningCompleteEvent
data: "$.provisionedOrders"
|
Workflow Diagram
Monitor Patient Vital Signs Example
Description
In this example a hospital patient is monitored by a Vial Sign Monitoring system. This device can produce three different Cloud Events, namely
"High Body Temperature", "High Blood Pressure", and "High Respiration Rate".
Our workflow which needs to take proper actions depending on the event the Vital Sign Monitor produces needs to start
if any of these events occur. For each of these events a new instance of the workflow is started.
Since the hospital may include many patients that are being monitored it is assumed that all events include a patientId context attribute in the event
message. We can use the value of this context attribute to associate the incoming events with the same patient as well as
use the patient id to pass as parameter to the functions called by event activities. Here is an example of such event:
{
"specversion" : "1.0",
"type" : "org.monitor.highBodyTemp",
"source" : "monitoringSource",
"subject" : "BodyTemperatureReading",
"id" : "A234-1234-1234",
"time" : "2020-01-05T17:31:00Z",
"patientId" : "PID-12345",
"data" : {
"value": "98.6F"
}
}
As you can see the "patientId" context attribute of the event includes our correlation key which is the unique
patient id. If we set it to be the correlation key in our events definition, all events that are considered must
have the matching patient id.
Workflow Definition
| JSON |
YAML |
{
"id": "patientVitalsWorkflow",
"name": "Monitor Patient Vitals",
"version": "1.0",
"startsAt": "MonitorVitals",
"events": [
{
"name": "HighBodyTemperature",
"type": "org.monitor.highBodyTemp",
"source": "monitoringSource",
"correlationToken": "patientId"
},
{
"name": "HighBloodPressure",
"type": "org.monitor.highBloodPressure",
"source": "monitoringSource",
"correlationToken": "patientId"
},
{
"name": "HighRespirationRate",
"type": "org.monitor.highRespirationRate",
"source": "monitoringSource",
"correlationToken": "patientId"
}
],
"functions": [
{
"name": "callPulmonologist",
"type": "function",
"resource": "callPulmonologistResource"
},
{
"name": "sendTylenolOrder",
"type": "function",
"resource": "sendTylenolOrderFunction"
},
{
"name": "callNurse",
"type": "function",
"resource": "callNurseResource"
}
],
"states": [
{
"name": "MonitorVitals",
"type": "EVENT",
"exclusive": true,
"eventsActions": [{
"eventRefs": ["HighBodyTemperature"],
"actions": [{
"functionRef": {
"refName": "sendTylenolOrder",
"parameters": {
"patientid": "$.patientId"
}
}
}]
},
{
"eventRefs": ["HighBloodPressure"],
"actions": [{
"functionRef": {
"refName": "callNurse",
"parameters": {
"patientid": "$.patientId"
}
}
}]
},
{
"eventRefs": ["HighRespirationRate"],
"actions": [{
"functionRef": {
"refName": "callPulmonologist",
"parameters": {
"patientid": "$.patientId"
}
}
}]
}
],
"end": {
"type": "TERMINATE"
}
}]
}
|
id: patientVitalsWorkflow
name: Monitor Patient Vitals
version: '1.0'
startsAt: MonitorVitals
events:
- name: HighBodyTemperature
type: org.monitor.highBodyTemp
source: monitoringSource
correlationToken: patientId
- name: HighBloodPressure
type: org.monitor.highBloodPressure
source: monitoringSource
correlationToken: patientId
- name: HighRespirationRate
type: org.monitor.highRespirationRate
source: monitoringSource
correlationToken: patientId
functions:
- name: callPulmonologist
type: function
resource: callPulmonologistResource
- name: sendTylenolOrder
type: function
resource: sendTylenolOrderFunction
- name: callNurse
type: function
resource: callNurseResource
states:
- name: MonitorVitals
type: EVENT
exclusive: true
eventsActions:
- eventRefs:
- HighBodyTemperature
actions:
- functionRef:
refName: sendTylenolOrder
parameters:
patientid: "$.patientId"
- eventRefs:
- HighBloodPressure
actions:
- functionRef:
refName: callNurse
parameters:
patientid: "$.patientId"
- eventRefs:
- HighRespirationRate
actions:
- functionRef:
refName: callPulmonologist
parameters:
patientid: "$.patientId"
end:
type: TERMINATE
|
Workflow Diagram
Finalize College Application Example
Description
In this example our workflow is instantiated when all requirements of a college application are completed.
These requirements include a student submitting an application, the college receiving the students SAT scores, as well
as a student recommendation letter from a former teacher.
We assume three Cloud Events "ApplicationSubmitted", "SATScoresReceived" and "RecommendationLetterReceived".
Each include the applicant id in their "applicantId" context attribute, so we can use it to associate these events with an individual applicant.
Our workflow is instantiated and performs the actions to finalize the college application for a student only
when all three of these events happened (in no particular order).
Workflow Definition
| JSON |
YAML |
{
"id": "finalizeCollegeApplication",
"name": "Finalize College Application",
"version": "1.0",
"startsAt": "FinalizeApplication",
"events": [
{
"name": "ApplicationSubmitted",
"type": "org.application.submitted",
"source": "applicationsource",
"correlationToken": "applicantId"
},
{
"name": "SATScoresReceived",
"type": "org.application.satscores",
"source": "applicationsource",
"correlationToken": "applicantId"
},
{
"name": "RecommendationLetterReceived",
"type": "org.application.recommendationLetter",
"source": "applicationsource",
"correlationToken": "applicantId"
}
],
"functions": [
{
"name": "finalizeApplicationFunction",
"type": "function",
"resource": "finalizeApplicationResource"
}
],
"states": [
{
"name": "FinalizeApplication",
"type": "EVENT",
"exclusive": false,
"eventsActions": [
{
"eventRefs": [
"ApplicationSubmitted",
"SATScoresReceived",
"RecommendationLetterReceived"
],
"actions": [
{
"functionRef": {
"refName": "finalizeApplicationFunction",
"parameters": {
"student": "$.applicantId"
}
}
}
]
}
],
"end": {
"type": "TERMINATE"
}
}
]
}
|
id: finalizeCollegeApplication
name: Finalize College Application
version: '1.0'
startsAt: FinalizeApplication
events:
- name: ApplicationSubmitted
type: org.application.submitted
source: applicationsource
correlationToken: applicantId
- name: SATScoresReceived
type: org.application.satscores
source: applicationsource
correlationToken: applicantId
- name: RecommendationLetterReceived
type: org.application.recommendationLetter
source: applicationsource
correlationToken: applicantId
functions:
- name: finalizeApplicationFunction
type: function
resource: finalizeApplicationResource
states:
- name: FinalizeApplication
type: EVENT
exclusive: false
eventsActions:
- eventRefs:
- ApplicationSubmitted
- SATScoresReceived
- RecommendationLetterReceived
actions:
- functionRef:
refName: finalizeApplicationFunction
parameters:
student: "$.applicantId"
end:
type: TERMINATE
|
Workflow Diagram
Perform Customer Credit Check Example
Description
In this example our serverless workflow needs to integrate with an external microservice to perform
a credit check. We assume that this external microservice notifies a human actor which has to make
the approval decision based on customer information. Once this decision is made the service emits a CloudEvent which
includes the decision information as part of its payload.
The workflow waits for this callback event and then triggers workflow transitions based on the
credit check decision results.
The workflow data input is assumed to be:
{
"customer": {
"id": "customer123",
"name": "John Doe",
"SSN": 123456,
"yearlyIncome": 50000,
"address": "123 MyLane, MyCity, MyCountry",
"employer": "MyCompany"
}
}
The callback event that our workflow will wait on is assumed to have the following formats.
For approved credit check, for example:
{
"specversion" : "1.0",
"type" : "creditCheckCompleteType",
"datacontenttype" : "application/json",
...
"data": {
"creditCheck": [
{
"id": "customer123",
"score": 700,
"decision": "Approved",
"reason": "Good credit score"
}
]
}
}
And for denied credit check, for example:
{
"specversion" : "1.0",
"type" : "creditCheckCompleteType",
"datacontenttype" : "application/json",
...
"data": {
"creditCheck": [
{
"id": "customer123",
"score": 580,
"decision": "Denied",
"reason": "Low credit score. Recent late payments"
}
]
}
}
Workflow Definition
| JSON |
YAML |
{
"id": "customercreditcheck",
"version": "1.0",
"name": "Customer Credit Check Workflow",
"description": "Perform Customer Credit Check",
"startsAt": "CheckCredit",
"functions": [
{
"name": "callCreditCheckMicroservice",
"resource": "creditCheckResource",
"type": "microservice"
},
{
"name": "sendRejectionEmailFunction",
"resource": "rejectEmailResource"
}
],
"events": [
{
"name": "CreditCheckCompletedEvent",
"type": "creditCheckCompleteType",
"source": "creditCheckSource",
"correlationToken": "customerId"
}
],
"states": [
{
"name": "CheckCredit",
"type": "CALLBACK",
"action": {
"functionRef": {
"refName": "callCreditCheckMicroservice",
"parameters": {
"customer": "$.customer"
}
}
},
"eventRef": "CreditCheckCompletedEvent",
"timeout": "PT15M",
"transition": {
"nextState": "EvaluateDecision"
}
},
{
"name": "EvaluateDecision",
"type": "SWITCH",
"choices": [
{
"path": "$.creditCheck.decision",
"value": "Approved",
"operator": "Equals",
"transition": {
"nextState": "StartApplication"
}
},
{
"path": "$.creditCheck.decision",
"value": "Denied",
"operator": "Equals",
"transition": {
"nextState": "RejectApplication"
}
}
],
"default": {
"nextState": "RejectApplication"
}
},
{
"name": "StartApplication",
"type": "SUBFLOW",
"workflowId": "startApplicationWorkflowId",
"end": {
"type": "DEFAULT"
}
},
{
"name": "RejectApplication",
"type": "OPERATION",
"actionMode": "SEQUENTIAL",
"actions": [
{
"functionRef": {
"refName": "sendRejectionEmailFunction",
"parameters": {
"applicant": "$.customer"
}
}
}
],
"end": {
"type": "DEFAULT"
}
}
]
}
|
id: customercreditcheck
version: '1.0'
name: Customer Credit Check Workflow
description: Perform Customer Credit Check
startsAt: CheckCredit
functions:
- name: callCreditCheckMicroservice
resource: creditCheckResource
type: microservice
- name: sendRejectionEmailFunction
resource: rejectEmailResource
events:
- name: CreditCheckCompletedEvent
type: creditCheckCompleteType
source: creditCheckSource
correlationToken: customerId
states:
- name: CheckCredit
type: CALLBACK
action:
functionRef:
refName: callCreditCheckMicroservice
parameters:
customer: "$.customer"
eventRef: CreditCheckCompletedEvent
timeout: PT15M
transition:
nextState: EvaluateDecision
- name: EvaluateDecision
type: SWITCH
choices:
- path: "$.creditCheck.decision"
value: Approved
operator: Equals
transition:
nextState: StartApplication
- path: "$.creditCheck.decision"
value: Denied
operator: Equals
transition:
nextState: RejectApplication
default:
nextState: RejectApplication
- name: StartApplication
type: SUBFLOW
workflowId: startApplicationWorkflowId
end:
type: DEFAULT
- name: RejectApplication
type: OPERATION
actionMode: SEQUENTIAL
actions:
- functionRef:
refName: sendRejectionEmailFunction
parameters:
applicant: "$.customer"
end:
type: DEFAULT
|
Workflow Diagram
