Introduction

Like Docker Cloud applications, Kubernetes applications are defined in YAML files and can run on public cloud infrastructure. Important Kubernetes concepts are:

  • The Kubernetes cluster
  • The Kubernetes application

Kubernetes cluster

A Kubernetes cluster is made up of masters and nodes. These can be cloud instances or VMs in your data center.

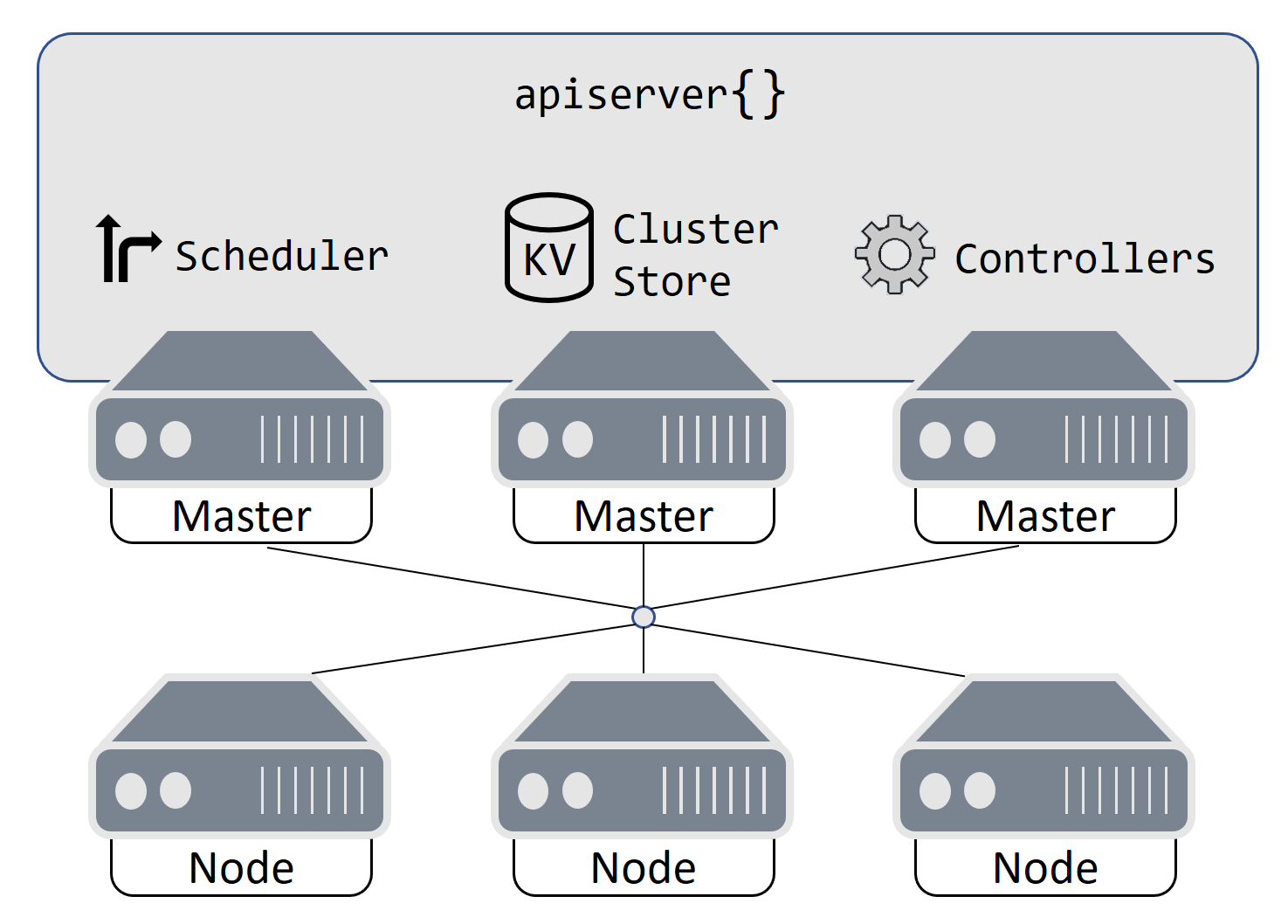

The diagram below shows a Kubernetes cluster with three masters and three nodes.

Kubernetes cluster{:width="400px"}

Masters

Masters run the control plane services and also issue work to nodes. They are the equivalent to managers in a Docker Cloud or Docker Swarm cluster. They handle:

  • Exposing the main Kubernetes API
  • The cluster store
  • The scheduler
  • All of the controllers (such as Deployments)
  • Assigning jobs to nodes

Nodes

Nodes receive and execute work assigned by masters. They are equivalent to workers in a Docker Cloud or Docker Swarm cluster.

You should run all of your work on nodes and not on masters. This may differ from Docker Cloud where you may have run some work on manager nodes.

Hosted services

You can run a Kubernetes cluster on-premises where you manage everything yourself -- masters (control plane) and nodes. But Control plane high availability (HA) can be difficult to configure.

Cloud providers such as Microsoft Azure{: target="blank" class=""}, Google Cloud Platform (GCP){: target="blank" class=""}, and Amazon Web Services (AWS){: target="blank" class=""}, provide hosted Kubernetes services:

  • Azure Container Service (AKS)
  • Google Kubernetes Engine (GKE)
  • Amazon Elastic Container Service for Kubernetes (EKS)

Each provides the Kubernetes control plane as a managed service, meaning the platform takes care of things such as control plane high availability (HA) and control plane upgrades. In fact, you have no access to the control plane (masters).

The managed control plane service is usually free but worker nodes are not.

Kubernetes application

A Kubernetes app is any containerized application defined in a Kubernetes manifest file.

Manifest

The manifest file (usually written in YAML) tells Kubernetes everything it needs to know about the application, as well as how to deploy and manage it. For example:

  • Images and containers to run
  • Network ports to publish
  • How to scale the app (up or down as demand requires)
  • How to perform rolling updates
  • How to perform rollbacks

Pods and Services

In the Docker world, the atomic unit of deployment is the Docker container. In the Kubernetes world, it is the Pod. If you already understand containers, you can think of a Pod{: target="blank" class=""} as one or more related containers. For the most part, Pods have a single container and are almost analogous to a container.

A Kubernetes Service{: target="blank" class=""} is an object abstraction that sits in front of a set of Pods and provides a static virtual IP (VIP) address and DNS name. The main purpose of a Kubernetes Service is to provide stable networking for groups of Pods.

Kubernetes Services can also be used to provision cloud-native load balancers and provide load balancing of requests coming in to the cluster from external sources. Examples include integration with native load balancers on AWS, Azure, and GCP.

Deployments

Docker has a higher level construct called a Docker service (different from a Kubernetes Service) that wraps around a container and adds things such as scalability and rolling updates. Kubernetes also has a higher level construct called a Deployment. A Kubernetes Deployment{: target="blank" class=""} is a "controller" that wraps around a set of Pods and adds things such as scalability, rolling updates, and simple rollbacks.

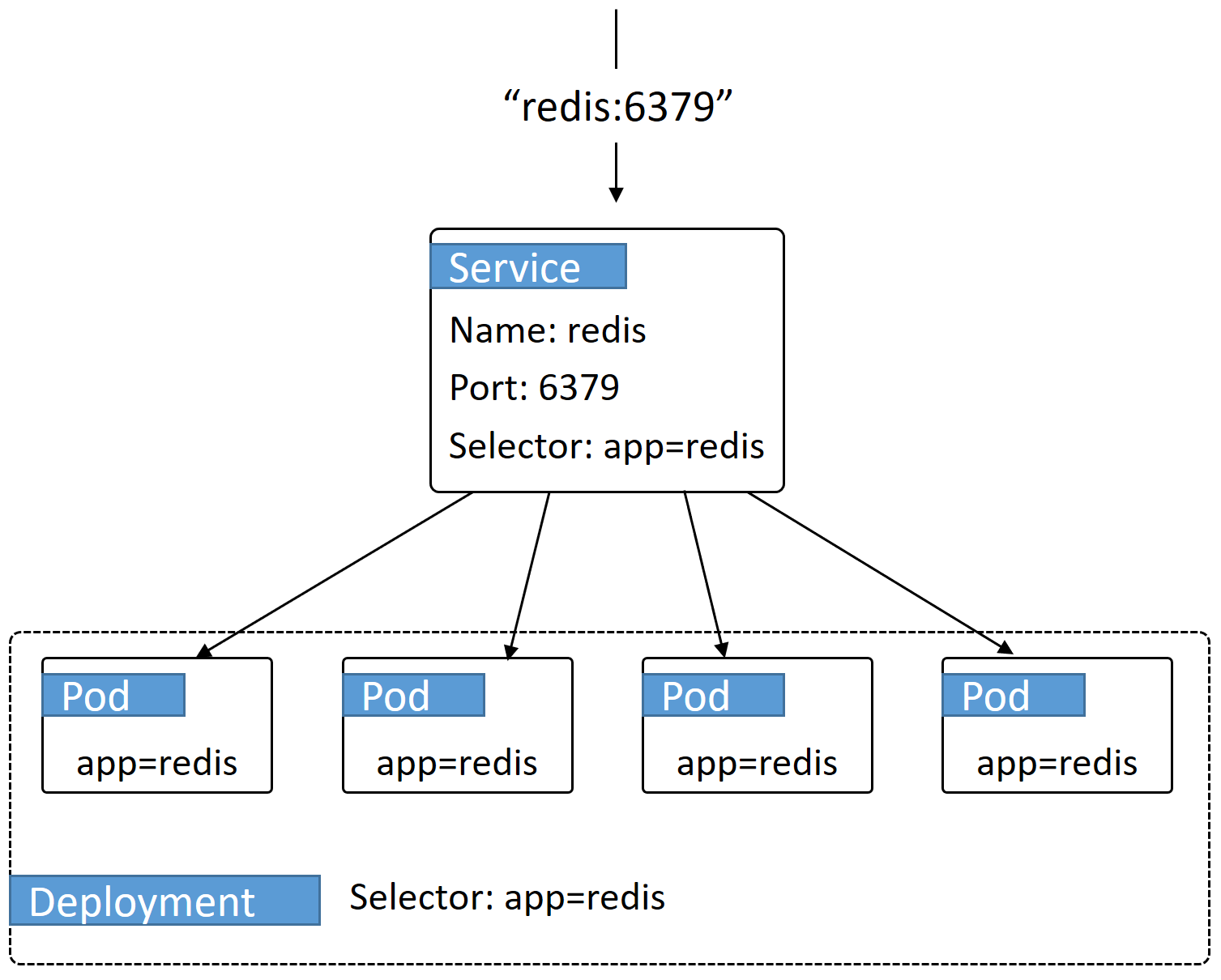

The diagram below shows a Service object providing a DNS name and stable IP for a Deployment of 4 Pods.

Voting app redis Kube pods{:width="500px"}

Managing Kubernetes apps

Docker apps are usually managed with the docker command line utility. Docker Cloud apps can be managed with the Docker Cloud CLI. Kubernetes apps are managed with the kubectl command line utility.

Common commands

This command deploys a Docker application, named test-app, from a YAML configuration file called app1.yml:

$ docker stack deploy -c app1.yml test-app

This command deploys a Kubernetes application from a YAML manifest file called k8s-app1.yml:

$ kubectl create -f k8s-app.yml

Some other useful kubectl commands include:

  • kubectl get prints a short description about an object. For Deployments, run: kubectl get deploy.
  • kubectl describe prints detailed information about an object. For a Deployment named "app1", run: kubectl describe deploy app1
  • kubectl delete deletes a resource on the cluster. To delete a Deployment created with the app1.yml manifest file, run: kubectl delete -f app1.yml.

Sample manifest

Below is a simple Kubernetes manifest file containing a Deployment and a Service.

  • The Deployment lists everything about the app, including how many Pod replicas to deploy, and the spec of the Pods to be deployed.
  • The Service defines an external load balancer that listens on port 80 and load-balances traffic across all ports with the "app=vote" label.

Everything in Kubernetes is loosely connected with labels. The three blue boxes show the labels and label selectors{: target="blank" class=""} that connect the service to the Pods, and the Pods to the Deployment.

Indentation is important in Kubernetes manifests, and you should indent with two spaces.

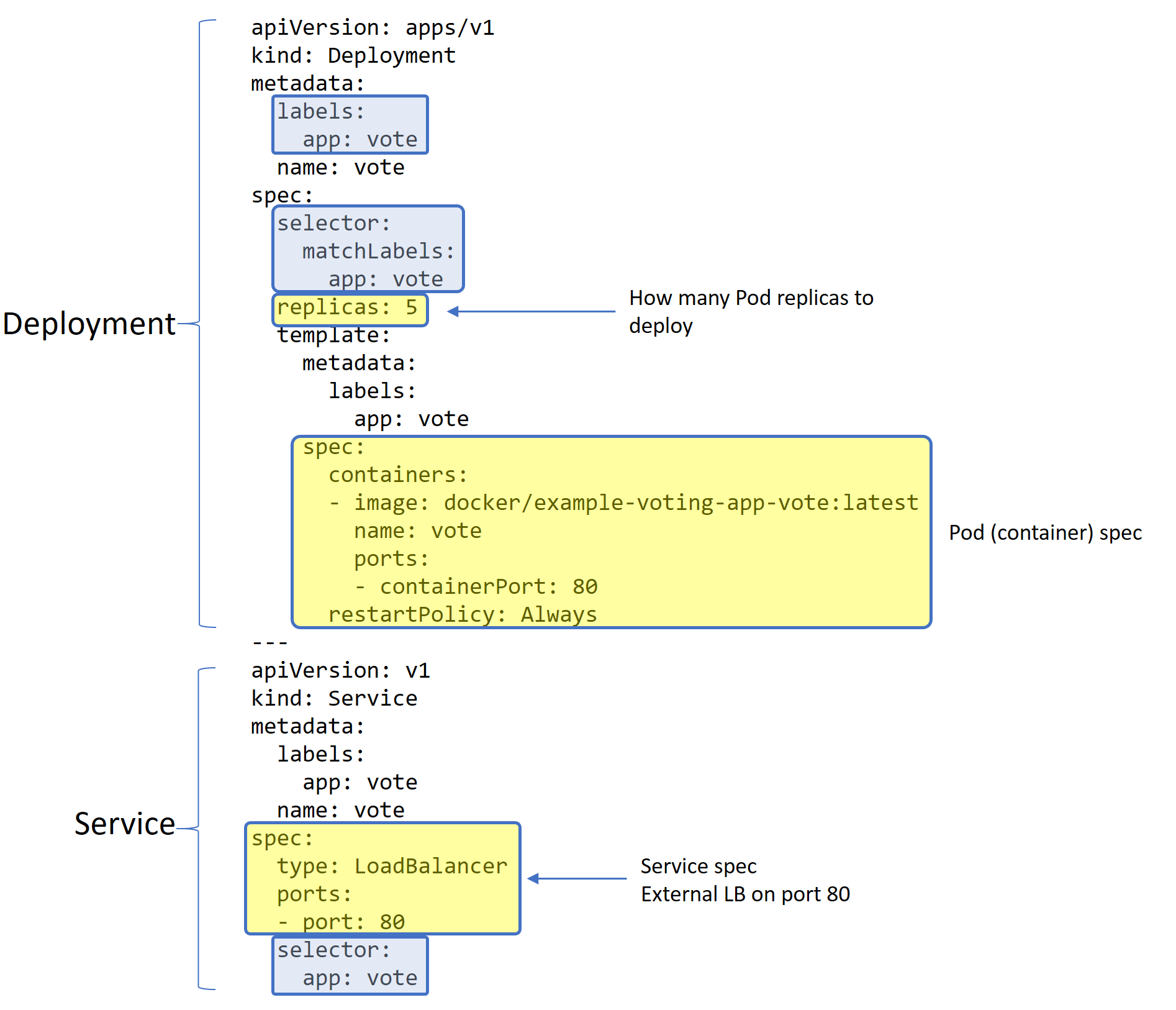

Kubernetes YAML manifest{:width="650px"}
