Docker Universal Control Plane allows you to use the tools you already know, like docker stack deploy to deploy multi-service applications. You can also deploy your applications from the UCP web UI.

In this example we'll deploy a multi-service application that allows users to vote on whether they prefer cats or dogs.

version: "3"
services:

  # A Redis key-value store to serve as message queue
  redis:
    image: redis:alpine
    ports:
      - "6379"
    networks:
      - frontend

  # A PostgreSQL database for persistent storage
  db:
    image: postgres:9.4
    volumes:
      - db-data:/var/lib/postgresql/data
    networks:
      - backend

  # Web UI for voting
  vote:
    image: dockersamples/examplevotingapp_vote:before
    ports:
      - 5000:80
    networks:
      - frontend
    depends_on:
      - redis

  # Web UI to count voting results
  result:
    image: dockersamples/examplevotingapp_result:before
    ports:
      - 5001:80
    networks:
      - backend
    depends_on:
      - db

  # Worker service to read from message queue
  worker:
    image: dockersamples/examplevotingapp_worker
    networks:
      - frontend
      - backend

networks:
  frontend:
  backend:

volumes:
  db-data:

From the web UI

To deploy your applications from the UCP web UI, on the left navigation bar expand Shared resources, choose Stacks, and click Create stack.

{: .with-border}

Choose the name you want for your stack, and choose Swarm services as the deployment mode.

When you choose this option, UCP deploys your app using the Docker swarm built-in orchestrator. If you choose 'Basic containers' as the deployment mode, UCP deploys your app using the classic Swarm orchestrator.

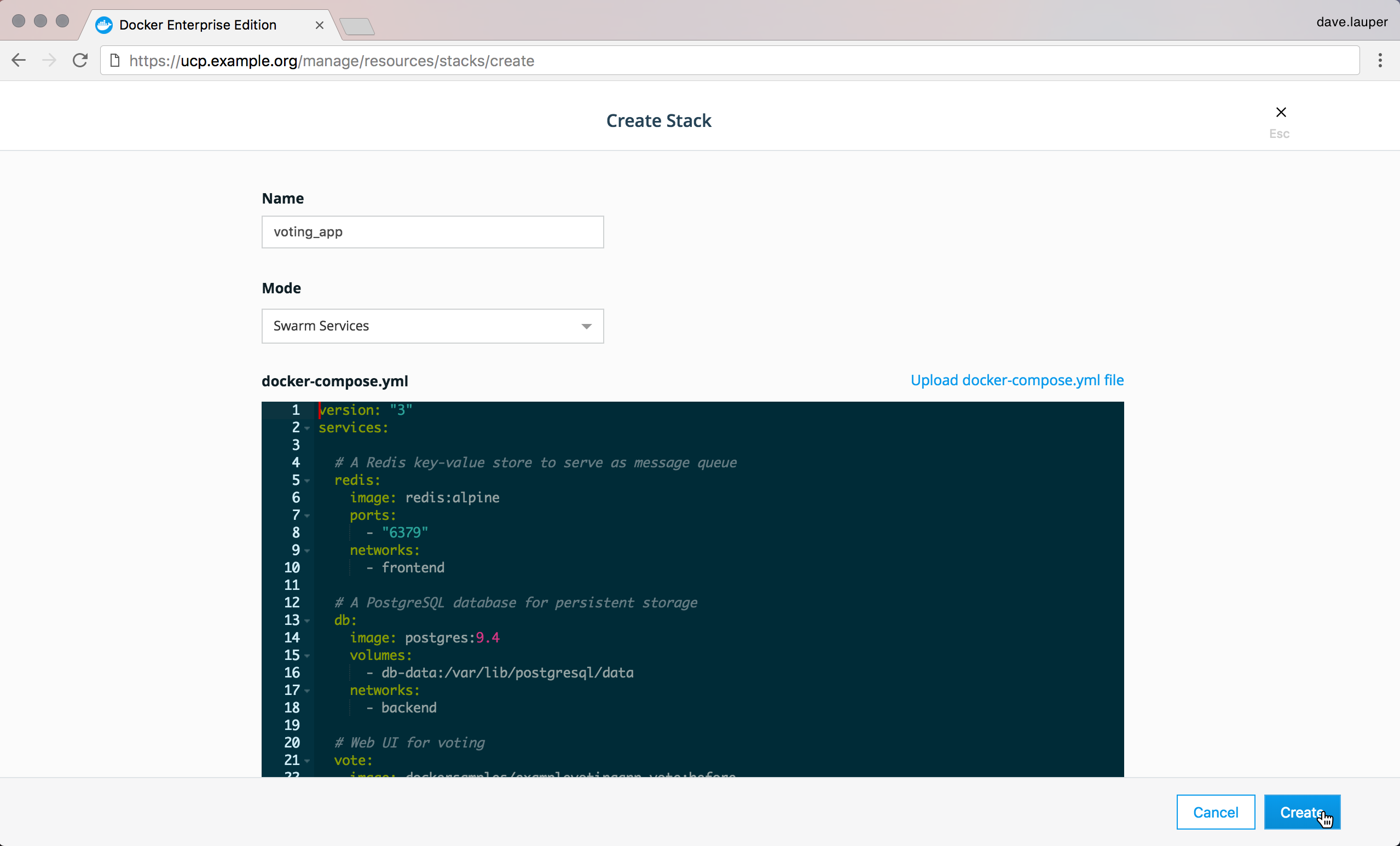

Then copy-paste the application definition in docker-compose.yml format.

{: .with-border}

Once you're done click Create to deploy the stack.

From the CLI

To deploy the application from the CLI, start by configuring your Docker CLI using a UCP client bundle.

Then, create a file named docker-stack.yml with the content of the yaml above, and run:

• Swarm orchestrator
• Classic Swarm orchestrator

``` docker stack deploy --compose-file voting_app ```

``` docker-compose --file docker-compose.yml --project-name voting_app up -d ```

Check your app

Once the multi-service application is deployed, it shows up in the UCP web UI. The 'Stacks' page shows that you've deployed the voting app.

{: .with-border}

You can also inspect the individual services of the app you deployed. For that, click the voting_app to open the details pane, open Inspect resources and choose Services, since this app was deployed with the built-in Docker swarm orchestrator.

{: .with-border}

You can also use the Docker CLI to check the status of your app:

docker stack ps voting_app

Great! The app is deployed so we can cast votes by accessing the service that's listening on port 5000. You don't need to know the ports a service listens to. You can click the voting_app_vote service and click on the Published endpoints link.

{: .with-border}

Limitations

When deploying applications from the web UI, you can't reference any external files, no matter if you're using the built-in swarm orchestrator or classic Swarm. For that reason, the following keywords are not supported:

• build
• dockerfile
• env_file

Also, UCP doesn't store the stack definition you've used to deploy the stack. You can use a version control system for this.
