title description keywords redirect_from
Audit logging on UCP Learn how to enable audit logging of all activity in UCP. logs, ucp, swarm, kubernetes, audits /ee/ucp/admin/configure/create-audit-logs/

{% include enterprise_label_shortform.md %}

Audit logs are a chronological record of security-relevant activities by individual users, administrators, or software components that have affected the system. They are focused on external user/agent actions and security rather than understanding state or events of the system itself.

Audit logs capture all HTTP actions (GET, PUT, POST, PATCH, DELETE) to all UCP API, Swarm API, and Kubernetes API endpoints that are invoked (except for the ignored list) and sent to Docker Engine through standard output (stdout). Creating audit logs is a UCP component that integrates with Swarm, Kubernetes, and UCP APIs.

Logging levels

Three audit logging levels are provided to give administrators more control:

  • None: Audit logging is disabled.
  • Metadata: Includes the following:
    • Method and API endpoint for the request
    • UCP user who made the request
    • Response Status (success or failure)
    • Timestamp of the call
    • Object ID of any created or updated resource (for create or update API calls). The names of created or updated resources are not included.
    • License Key
    • Remote Address
  • Request: Includes all fields from the Metadata level as well as the request payload.

Note

Once UCP audit logging has been enabled, audit logs can be found within the container logs of the ucp-controller container on each UCP manager node. Ensure that you have a logging driver configured appropriately with log rotation set, as audit logging can generate a large amount of data.

Benefits of audit logging

Audit logs can be of help with historical troubleshooting, security analysis and auditing, generating chargeback information, and creating useful alerts.

Enabling UCP audit logging

Enable audit logging using either the UCP UI, the UCP API, or the UCP configuration file.

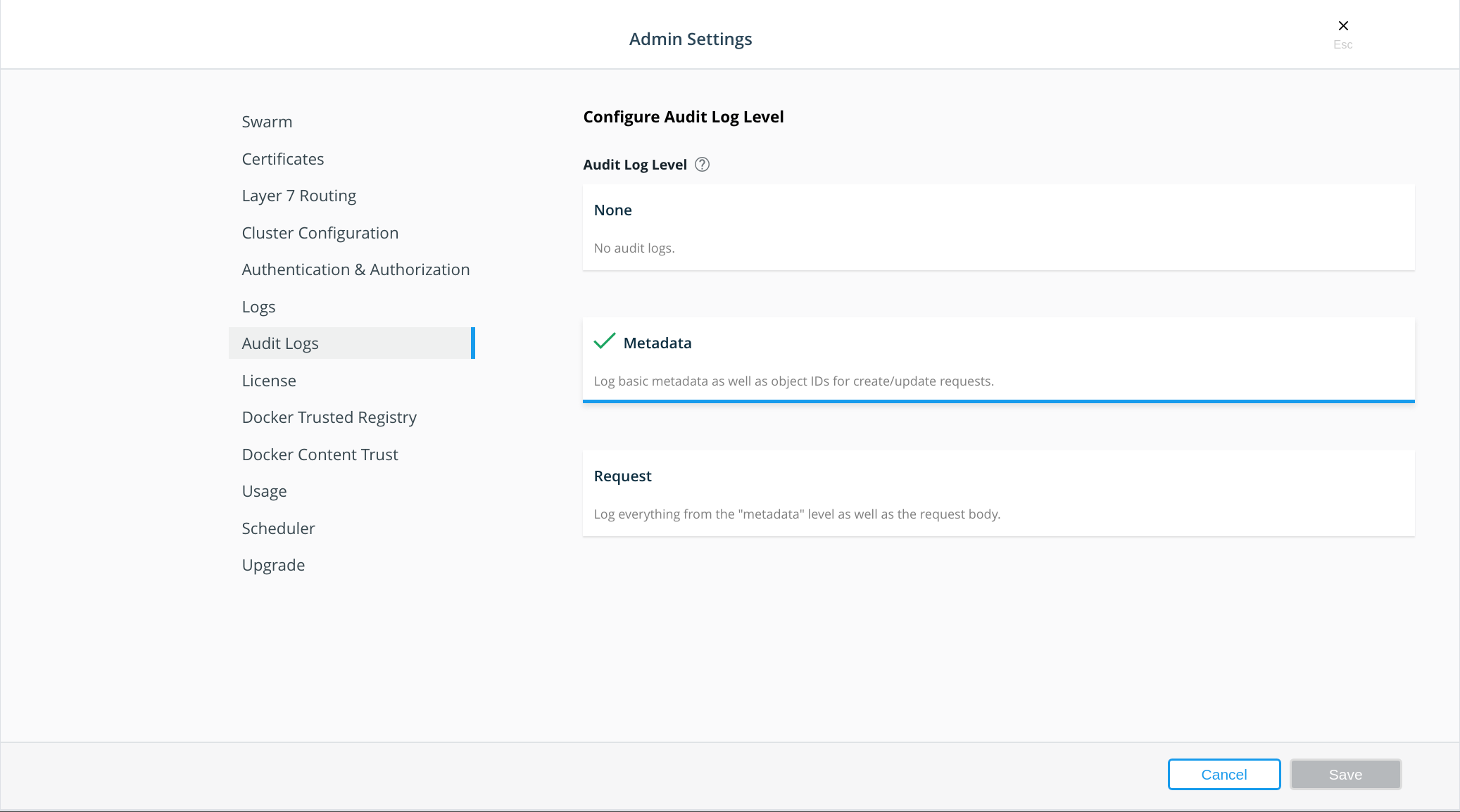

Enabling UCP audit logging through the UI

  1. Access the UCP UI and browse to the Admin Settings page.

  2. Select Audit Logs.

  3. In the Configure Audit Log Level section, select the relevant logging level.

    Enabling Audit Logging in UCP{: .with-border}

  4. Click Save.

Enabling UCP audit logging using the API

  1. Download the UCP Client bundle from the command line.

  2. Retrieve the JSON file for the current audit log configuration.

    export DOCKER_CERT_PATH=~/ucp-bundle-dir/
curl --cert ${DOCKER_CERT_PATH}/cert.pem --key ${DOCKER_CERT_PATH}/key.pem --cacert ${DOCKER_CERT_PATH}/ca.pem -k -X GET https://ucp-domain/api/ucp/config/logging > auditlog.json

  3. Open auditlog.json to modify the auditlevel field to metadata or request.

    {
	"logLevel": "INFO",
	"auditLevel": "metadata",
	"supportDumpIncludeAuditLogs": false
}

  4. Send the JSON request for the auditlog config with the same API path but with the PUT method.

    curl --cert ${DOCKER_CERT_PATH}/cert.pem --key ${DOCKER_CERT_PATH}/key.pem --cacert ${DOCKER_CERT_PATH}/ca.pem -k -H "Content-Type: application/json" -X PUT --data $(cat auditlog.json) https://ucp-domain/api/ucp/config/logging

Enabling UCP audit logging using the configuration file

Enabling UCP audit logging through the UCP configuration file can be done before or after a UCP installation. Refer to the UCP configuration file topic for more information.

The section of the UCP configuration file that controls UCP auditing logging is:

[audit_log_configuration]
  level = "metadata"
  support_dump_include_audit_logs = false

The supported variables for level are "", "metadata" or "request".

Important

The support_dump_include_audit_logs flag specifies whether user identification information from the ucp-controller container logs is included in the support dump. To prevent this information from being sent with the support dump, make sure that support_dump_include_audit_logs is set to false. When disabled, the support dump collection tool filters out any lines from the ucp-controller container logs that contain the substring auditID. {: .important}

Accessing audit logs

The audit logs are exposed through the ucp-controller logs. You can access these logs locally through the Docker CLI or through an external container logging solution, such as ELK.

Accessing audit logs using the Docker CLI

  1. Source a UCP client bundle.
  2. Run docker logs to obtain audit logs. In the following example, we are tailing the command to show the last log entry.
$ docker logs ucp-controller --tail 1
{"audit":{"auditID":"f8ce4684-cb55-4c88-652c-d2ebd2e9365e","kind":"docker-swarm","level":"metadata","metadata":{"creationTimestamp":null},"requestReceivedTimestamp":"2019-01-30T17:21:45.316157Z","requestURI":"/metricsservice/query?query=(%20(sum%20by%20(instance)%20(ucp_engine_container_memory_usage_bytes%7Bmanager%3D%22true%22%7D))%20%2F%20(sum%20by%20(instance)%20(ucp_engine_memory_total_bytes%7Bmanager%3D%22true%22%7D))%20)%20*%20100\u0026time=2019-01-30T17%3A21%3A45.286Z","sourceIPs":["172.31.45.250:48516"],"stage":"RequestReceived","stageTimestamp":null,"timestamp":null,"user":{"extra":{"licenseKey":["FHy6u1SSg_U_Fbo24yYUmtbH-ixRlwrpEQpdO_ntmkoz"],"username":["admin"]},"uid":"4ec3c2fc-312b-4e66-bb4f-b64b8f0ee42a","username":"4ec3c2fc-312b-4e66-bb4f-b64b8f0ee42a"},"verb":"GET"},"level":"info","msg":"audit","time":"2019-01-30T17:21:45Z"}

Sample logs

Here is a sample audit log for a Kubernetes cluster.

{"audit"; {
      "metadata": {...},
      "level": "Metadata",
      "timestamp": "2018-08-07T22:10:35Z",
      "auditID": "7559d301-fa6b-4ad6-901c-b587fab75277",
      "stage": "RequestReceived",
      "requestURI": "/api/v1/namespaces/default/pods",
      "verb": "list",
      "user": {"username": "alice",...},
      "sourceIPs": ["127.0.0.1"],
      ...,
      "requestReceivedTimestamp": "2018-08-07T22:10:35.428850Z"}}

Here is a sample audit log for a Swarm cluster.

{"audit"; {
      "metadata": {...},
      "level": "Metadata",
      "timestamp": "2018-08-07T22:10:35Z",
      "auditID": "7559d301-94e7-4ad6-901c-b587fab31512",
      "stage": "RequestReceived",
      "requestURI": "/v1.30/configs/create",
      "verb": "post",
      "user": {"username": "alice",...},
      "sourceIPs": ["127.0.0.1"],
      ...,
      "requestReceivedTimestamp": "2018-08-07T22:10:35.428850Z"}}

API endpoints ignored

The following API endpoints are ignored since they are not considered security events and may create a large amount of log entries.

  • /_ping
  • /ca
  • /auth
  • /trustedregistryca
  • /kubeauth
  • /metrics
  • /info
  • /version*
  • /debug
  • /openid_keys
  • /apidocs
  • /kubernetesdocs
  • /manage

API endpoint information redacted

Information for the following API endpoints is redacted from the audit logs for security purposes.

  • /secrets/create (POST)
  • /secrets/{id}/update (POST)
  • /swarm/join (POST)
  • /swarm/update (POST) -/auth/login (POST)
  • Kubernetes secrete create/update endpoints
