Sample API Usage

Following are several normative sample scenarios utilizing the Elafros API. These scenarios are arranged to provide a flavor of the API and building from the smallest, most frequent operations.

Examples in this section illustrate:

Note that these API operations are identical for both app and function based services. (to see the full resource definitions, see the Resource YAML Definitions).

CLI samples are for illustrative purposes, and not intended to represent final CLI design.

1) Automatic rollout of a new Revision to existing Service - pre-built container

Scenario: User deploys a new revision to an existing service with a new container image, rolling out automatically to 100%

$ elafros deploy --service my-service
  Deploying app to service [my-service]:
✓ Starting
✓ Promoting
  Done.
  Deployed to https://my-service.default.mydomain.com

Steps:

  • Update the Service with the config change

Results:

  • The Configuration associated with the Service is updated, and a new Revision is created, and automatically rolled out to 100% once ready.

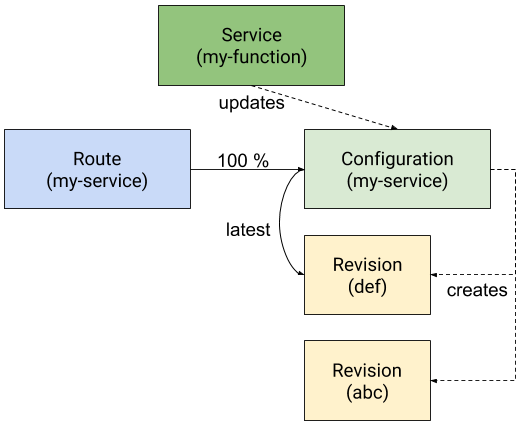

Automatic Rollout

After the initial Route and Configuration have been created (which is shown in the second example), the typical interaction is to update the revision configuration, resulting in the creation of a new revision, which will be automatically rolled out by the route. Revision configuration updates can be handled as either a PUT or PATCH operation:

  • Optimistic concurrency controls for PUT operations in a read/modify/write routine work as expected in kubernetes.

  • PATCH semantics should work as expected in kubernetes, but may have some limitations imposed by CRDs at the moment.

In this and following examples PATCH is used. Revisions can be built from source, which results in a container image, or by directly supplying a pre-built container, which this first scenario illustrates. The example demonstrates the PATCH issued by the client, followed by several GET calls to illustrate each step in the reconciliation process as the system materializes the new revision, and begins shifting traffic from the old revision to the new revision.

The client PATCHes the service's configuration with new container image, inheriting previous environment values from the configuration spec:

PATCH /apis/elafros.dev/v1alpha1/namespaces/default/services/my-service

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-service
spec:
  runLatest:
    configuration:
      revisionTemplate:  # template for building Revision
        spec:
          container:
            image: gcr.io/...  # new image

This causes the controller to PATCH the configuration's template revision with the new container image:

PATCH /apis/elafros.dev/v1alpha1/namespaces/default/configurations/my-service

apiVersion: elafros.dev/v1alpha1
kind: Configuration
metadata:
  name: my-service  # Named the same as the Service
spec:
  revisionTemplate:  # template for building Revision
    spec:
      container:
        image: gcr.io/...  # new image

The update to the Configuration triggers a new Revision being created, and the Configuration and Service are updated to reflect the new Revision:

GET /apis/elafros.dev/v1alpha1/namespaces/default/configurations/my-service

apiVersion: elafros.dev/v1alpha1
kind: Configuration
metadata:
  name: my-service
  generation: 1235
 ...

spec:
  ... # same as before, except new container.image
status:
  latestReadyRevisionName: abc
  latestCreatedRevisionName: def # new revision created, but not ready yet
  observedGeneration: 1235

GET /apis/elafros.dev/v1alpha1/namespaces/default/service/my-service

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-service
  generation: 1452
 ...

spec:
  ... # same as before, except new container.image
status:
  latestReadyRevisionName: abc
  latestCreatedRevisionName: def # new revision created, but not ready yet
  observedGeneration: 1452

The newly created revision has the same config as the previous revision, but different code. Note the generation label reflects the new generation of the configuration (1235), indicating the provenance of the revision:

GET /apis/elafros.dev/v1alpha1/namespaces/default/revisions/def

apiVersion: elafros.dev/v1alpha1
kind: Revision
metadata:
  name: def
  labels:
    elafros.dev/configuration: my-service
  annotations:
    elafros.dev/configurationGeneration: 1235
  ...
spec:
  container:  # k8s core.v1.Container
    image: gcr.io/...  # new container
    # same config as previous revision
    env:
    - name: FOO
      value: bar
    - name: HELLO
      value: blurg
  ...
status:
  conditions:
   - type: Ready
     status: True

When the new revision is Ready, i.e. underlying resources are materialized and ready to serve, the configuration (and service) updates their status.latestReadyRevisionName to reflect the new revision. The route, which is configured to automatically rollout new revisions from the configuration, watches the configuration and is notified of the latestReadyRevisionName, and begins migrating traffic to it. During reconciliation, traffic may be routed to both existing revision abc and new revision def:

GET /apis/elafros.dev/v1alpha1/namespaces/default/routes/my-service

apiVersion: elafros.dev/v1alpha1
kind: Route
metadata:
  name: my-service
  ...
spec:
  rollout:
    traffic:
    - configurationName: my-service
      percent: 100

status:
  # domain:
  # oss: my-service.namespace.mydomain.com
  domain: my-service.namespace.mydomain.com
  # percentages add to 100
  traffic:  # in status, all configurationName refs are dereferenced
  - revisionName: abc
    percent: 75
  - revisionName: def
    percent: 25
  conditions:
  - type: Ready
    status: False

And once reconciled, revision def serves 100% of the traffic :

GET /apis/elafros.dev/v1alpha1/namespaces/default/routes/my-service

apiVersion: elafros.dev/v1alpha1
kind: Route
metadata:
  name: my-service
  ...
spec:
  rollout:
    traffic:
    - configurationName: my-service
      percent: 100
status:
  domain: my-service.default.mydomain.com
  traffic:
  - revisionName: def
    percent: 100
  conditions:
  - type: Ready
    status: True
  ...

2) Creating a new Service with a pre-built container

Scenario: User creates a new Service and deploys their first Revision based on a pre-built container

$ elafros deploy --service my-service --region us-central1
✓ Creating service [my-service] in region [us-central1]
  Deploying app to service [my-service]:
✓ Uploading     [=================]
✓ Starting
✓ Promoting
  Done.
  Deployed to https://my-service.default.mydomain.com

Steps:

  • Create a new Service. That Service will trigger creation of a new Configuration and a Route that references that configuration.

Results:

  • A new Configuration is created, and generates a new Revision based on the configuration

  • A new Route is created, referencing the configuration

  • The route begins serving traffic to the Revision that was created by the configuration

Initial Creation

The previous example assumed an existing Service with a Route and Configuration to illustrate the common scenario of updating the configuration to deploy a new revision to the service.

In this getting started example, deploying a first Revision is accomplished by creating a new Service, which will create both a Configuration and a new Route referring to that configuration. In turn, the Configuration will generate a new Revision. Note that these steps may occur in in parallel.

In the runLatest style of Service, the Route always references the latest ready revision of a Configuration, as this example illustrates. This is the most straightforward scenario that many Elafros customers are expected to use, and is consistent with the experience of deploying code that is rolled out immediately. A Route may also directly reference a Revision, which is shown in example 3.

The example shows the POST calls issued by the client, followed by several GET calls to illustrate each step in the reconciliation process as the system materializes and begins routing traffic to the revision.

The client creates the service in runLatest mode:

POST /apis/elafros.dev/v1alpha1/namespaces/default/services

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-service
spec:
  runLatest:
    configuration:
      revisionTemplate:  # template for building Revision
        metadata: ...
        spec:
          container: # k8s core.v1.Container
            image: gcr.io/...
            env:
            - name: FOO
              value: bar
            - name: HELLO
              value: world
          ...

This causes the service controller to create route and configuration objects with the same name as the Service:

GET /apis/elafros.dev/v1alpha1/namespaces/default/routes

apiVersion: elafros.dev/v1alpha1
kind: Route
metadata:
  name: my-service
spec:
  rollout:
    traffic:
    - configurationName: my-service  # named reference to Configuration
      percent: 100  # automatically activate new Revisions from the configuration

GET /apis/elafros.dev/v1alpha1/namespaces/default/configurations

apiVersion: elafros.dev/v1alpha1
kind: Configuration
metadata:
  name: my-service  # By convention (not req'd), same name as the service.
                    # This will also be set as the "elafros.dev/configuration"
                    # label on the created Revision.
spec:  # Contents from service's spec.runLatest.configuration
  revisionTemplate:
    metadata: ...
    spec:
      container: # k8s core.v1.Container
        image: gcr.io/...
        env:
        - name: FOO
          value: bar
        - name: HELLO
          value: world
      ...

Upon the creation of the configuration, the configuration controller will create a new Revision, generating its name, and applying the spec and metadata from the configuration, as well as new metadata labels:

GET /apis/elafros.dev/v1alpha1/namespaces/default/revisions/abc

apiVersion: elafros.dev/v1alpha1
kind: Revision
metadata:
  name: abc  # generated name
  labels:
    # name and generation of the configuration that created the revision
    elafros.dev/configuration: my-service
  annotations:
    elafros.dev/configurationGeneration: 1234
  ...  # uid, resourceVersion, creationTimestamp, generation, selfLink, etc
spec:
  ...  # spec from the configuration
status:
  conditions:
   - type: Ready
     status: False
     message: "Starting Instances"

Immediately after the revision is created, i.e. before underlying resources have been fully materialized, the configuration is updated with latestCreatedRevisionName:

GET /apis/elafros.dev/v1alpha1/namespaces/default/configurations/my-service

apiVersion: elafros.dev/v1alpha1
kind: Configuration
metadata:
  name: my-service
  generation: 1234
  ...  # uid, resourceVersion, creationTimestamp, selfLink, etc
spec:
  ...  # same as before
status:
  # latest created revision, may not have materialized yet
  latestCreatedRevisionName: abc
  observedGeneration: 1234

The configuration watches the revision, and when the revision is updated as Ready (to serve), the latestReadyRevisionName is updated:

GET /apis/elafros.dev/v1alpha1/namespaces/default/configurations/my-service

apiVersion: elafros.dev/v1alpha1
kind: Configuration
metadata:
  name: my-service
  generation: 1234
  ...
spec:
  ...  # same as before
status:
  # the latest created and ready to serve. Watched by route
  latestReadyRevisionName: abc
  # latest created revision
  latestCreatedRevisionName: abc
  observedGeneration: 1234

The route, which watches the configuration my-service, observes the change to latestReadyRevisionName and begins routing traffic to the new revision abc, addressable as my-service.default.mydomain.com. Once reconciled:

GET /apis/elafros.dev/v1alpha1/namespaces/default/routes/my-service

apiVersion: elafros.dev/v1alpha1
kind: Route
metadata:
  name: my-service
  generation: 2145
  ...
spec:
  rollout:
    traffic:
    - configurationName: my-service
      percent: 100

status:
  domain: my-service.default.mydomain.com

  traffic:  # in status, all configurationName refs are dereferenced to latest revision
  - revisionName: abc  # latestReadyRevisionName from configurationName in spec
    percent: 100

  conditions:
  - type: Ready
    status: True

  observedGeneration: 2145

The Service also watches the Configuration (and Route) and mirrors their status for convenience:

GET /apis/elafros.dev/v1alpha1/namespaces/default/services/my-service

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-service
  generation: 1
  ...
spec:
  ...  # same as before
status:
  # the latest created and ready to serve.
  latestReadyRevisionName: abc
  # latest created revision
  latestCreatedRevisionName: abc
  observedGeneration: 1

3) Manual rollout of a new Revision - config change only

Scenario: User updates configuration with new runtime arguments (env var change) to an existing service, tests the revision, then proceeds with a manually controlled rollout to 100%

$ elafros rollout --service my-service strategy manual

$ elafros deploy --service my-service --env HELLO="blurg"
[...]

$ elafros revisions list --service my-service
Name     Traffic  Id   Date                Deployer     Git SHA
next     0%       v3   2018-01-19 12:16    user1        a6f92d1
current  100%     v2   2018-01-18 20:34    user1        a6f92d1
                  v1   2018-01-17 10:32    user1        33643fc

$ elafros rollout next percent 5
[...]
$ elafros rollout next percent 50
[...]
$ elafros rollout finish
[...]

$ elafros revisions list --service my-service
Name          Traffic  Id   Date                Deployer      Git SHA
current,next  100%     v3   2018-01-19 12:16    user1         a6f92d1
                       v2   2018-01-18 20:34    user1         a6f92d1
                       v1   2018-01-17 10:32    user1         33643fc

Steps:

  • Update the Service to switch from runLatest to pinned strategy.

  • Update the Service with the new configuration (env var).

  • Update the Service to address the new Revision.

Results:

  • The system creates the new revision from the configuration, addressable at next.my-service... (by convention), but traffic is not routed to it until the percentage is manually ramped up. Upon completing the rollout, the next revision is now the current revision.

Manual rollout

In the previous examples, the Service automatically made changes to the configuration (newly created Revision) routable when they became ready. While this pattern is useful for many scenarios such as functions-as-a-service and simple development flows, the Service can also reference Revisions directly in pinned mode to route traffic to a specific Revision, which is suitable for rolling back a service to a known-good state. manually controlling rollouts, i.e. testing a new revision prior to serving traffic. (Note: see Appendix B for a semi-automatic variation of manual rollouts).

The client updates the service to pin the current revision:

PUT /apis/elafros.dev/v1alpha1/namespaces/default/services/my-service

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-service
spec:
  pinned:
    revisionName: def
    configuration:  # Copied from spec.runLatest.configuration
      revisionTemplate:  # template for building Revision
        spec:
          container:
            image: gcr.io/...  # new image

This causes the Route to be updated to pin traffic the specified revision (note that the Configuration between the two is equivalent, and therefore unchanged).

PATCH /apis/elafros.dev/v1alpha1/namespaces/default/routes/my-service

apiVersion: elafros.dev/v1alpha1
kind: Route
metadata:
  name: my-service
spec:
  rollout:
    traffic:
    - revisionName: def
      name: current  # addressable as current.my-service.default.mydomain.com
      percent: 100
    - configurationName: my-service  # LatestReadyRevision of my-service
      name: next  # addressable as next.my-service.default.mydomain.com
      percent: 0 # no traffic yet

Next, the service is updated with the new variables, which causes the service controller to update the Configuration, in this case updating the environment but keeping the same container image:

PATCH /apis/elafros.dev/v1alpha1/namespaces/default/services/my-service

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-service
spec:
  pinned:
    configuration:  # Copied from spec.runLatest.configuration
      revisionTemplate:  # template for building Revision
        spec:
          container:
            env:  # k8s-style strategic merge patch, updating a single list value
            - name: HELLO
              value: blurg  # changed value

As in the previous example, the configuration is updated to trigger the creation of a new revision:

PATCH /apis/elafros.dev/v1alpha1/namespaces/default/configurations/my-service

apiVersion: elafros.dev/v1alpha1
kind: Configuration
metadata:
  name: my-service
spec:
  revisionTemplate:
    spec:
      container:
        env: # k8s-style strategic merge patch, updating a single list value
        - name: HELLO
          value: blurg # changed value

A new revision ghi is created that has the same code as the previous revision def, but different config:

GET /apis/elafros.dev/v1alpha1/namespaces/default/revisions/ghi

apiVersion: elafros.dev/v1alpha1
kind: Revision
metadata:
  name: ghi
   ...
spec:
  container:
    image: gcr.io/...  # same container as previous revision abc
    env:
    - name: FOO
      value: bar
    - name: HELLO
      value: blurg # changed value
  ...
status:
  conditions:
   - type: Ready
     status: True

Even when ready, the new revision does not automatically start serving traffic, as the route was pinned to revision def.

Once the new revision is ready, the route will update the next name to point to the revision ghi. The new revision will still not receive any traffic by default, but can be accessed for testing, verification, etc.

GET /apis/elafros.dev/v1alpha1/namespaces/default/routes/my-service

apiVersion: elafros.dev/v1alpha1
kind: Route
metadata:
  name: my-service
spec:
  rollout:
    traffic:
    - revisionName: def
      name: current  # addressable as current.my-service.default.mydomain.com
      percent: 100
    - configurationName: my-service  # LatestReadyRevision of my-service
      name: next  # addressable as next.my-service.default.mydomain.com
      percent: 0 # no traffic yet
status:
  domain: my-service.default.mydomain.com
  traffic:
  - revisionName: def
    name: current  # addressable as current.my-service.default.mydomain.com
    percent: 100
  - revisionName: ghi
    name: next # addressable as next.my-service.default.mydomain.com
    percent: 0
  conditions:
  - type: Ready
    status: True

After testing the new revision at next.my-service.default.mydomain.com, it can be promoted to live by updating the service to pin ghi as the new revision.

PATCH /apis/elafros.dev/v1alpha1/namespaces/default/services/my-service

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-service
spec:
  pinned:
    revisionname: ghi

This causes the service to update the route to assign

PATCH /apis/elafros.dev/v1alpha1/namespaces/default/routes/my-service

apiVersion: elafros.dev/v1alpha1
kind: route
metadata:
  name: my-service
spec:
  rollout:
    traffic:
    - revisionName: ghi
      name: current
      percent: 100
    - configurationName: my-service  # LatestReadyRevision of my-service
      name: next
      percent: 0

Once the update has been completed, if the latest ready revision is the same as the pinned revision, the names current and next will point to the same revision. Both names are left in place so that next.my-service.default.mydomain.com is always addressable.

GET /apis/elafros.dev/v1alpha1/namespaces/default/routes/my-service

apiVersion: elafros.dev/v1alpha1
kind: Route
metadata:
  name: my-service
spec:
  rollout:
    traffic:
    - revisionName: ghi # update for the next rollout, current = next
      name: current
      percent: 100
    - revisionName: ghi # optional: leave next as also referring to ghi
      name: next
      percent: 0
status:
  domain: my-service.default.mydomain.com
  traffic:
  - revisionName: ghi
    name: current  # addressable as current.my-service.default.mydomain.com
    percent: 100
  - revisionName: ghi
    name: next # addressable as next.my-service.default.mydomain.com
    percent: 0
  conditions:
  - type: Ready
    status: True

4) Deploy a Revision from source

Scenario: User deploys a revision to an existing service from source rather than a pre-built container

$ elafros deploy --service my-service
  Deploying app to service [my-service]:
✓ Uploading     [=================]
✓ Detected [node-8-9-4] runtime
✓ Building
✓ Starting
✓ Promoting
  Done.
  Deployed to https://my-service.default.mydomain.com

Steps:

  • Create/Update the service, updating build source information and using a new container label.

Results:

  • The Configuration is created/updated, which generates a container build and a new Revision based on the template, and can be rolled out per earlier examples

Build Example

Previous examples demonstrated services created with pre-built containers. Revisions can also be created by providing build information to the service, which results in a container image built by the system. The build information is supplied by inlining the BuildSpec of a Build resource in the Configuration. This describes:

  • What to build (build.source): Source can be provided as an archive, manifest file, or repository.

  • How to build (build.template): a BuildTemplate is referenced, which describes how to build the container via a builder with arguments to the build process.

  • Where to publish (build.template.arguments): Image registry url and other information specific to this build invocation.

The client updates the configuration in the service inlining a build spec for an git based source build, and referencing a nodejs build template:

PATCH /apis/elafros.dev/v1alpha1/namespaces/default/service

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-service
spec:
  runLatest:
    configuration:
      build:  # elafros.dev/v1alpha1.BuildTemplateSpec
        source:
          # oneof git|gcs|custom:
          git:
            url: https://...
            commit: ...
        template:  # defines build template
          name: nodejs_8_9_4 # builder name
          namespace: build-templates
          arguments:
          - name: _IMAGE
            value: gcr.io/...  # destination for image

      revisionTemplate:  # template for building Revision
        metadata: ...
        spec:
          container:  # k8s core.v1.Container
            image: gcr.io/...  # Promise of a future build. Same as supplied in
                               # build.template.arguments[_IMAGE]
            env:  # Updated environment variables to go live with new source.
            - name: FOO
              value: bar
            - name: HELLO
              value: world

Note the revisionTemplate.spec.container.image above is supplied with the destination of the build. This enables one-step changes to both environment and source code. If the build step were responsible for updating the revisionTemplate.spec.container.image at the completion of the build, an update to both source and config could result in the creation of two Revisions, one with the config change, and the other with the new code deployment. It is expected that Revision will wait for the buildName to be complete and the revisionTemplate.spec.container.image to be live before marking the Revision as "ready".

Upon creating/updating the service's configuration, the contents are copied into the corresponding Configuration object. Once updated, the configuration controller creates a new revision. The configuration controller will also create a build, populating the revision’s buildName with a reference to the underlying Build resource. The revision controller watches status updates on the build reference, and the high-level state of the build is mirrored into conditions in the Revision’s status for convenience:

GET /apis/elafros.dev/v1alpha1/namespaces/default/revisions/abc

apiVersion: elafros.dev/v1alpha1
kind: Revision
metadata:
  name: abc
  labels:
    elafros.dev/configuration: my-service
  annotations:
    elafros.dev/configurationGeneration: 1234
  ...
spec:
  # name of the elafros.dev/v1alpha1.Build, if built from source.
  # Set by Configuration.
  buildName: ...

  # spec from the configuration, with container.image containing the
  # newly built container
  container: # k8s core.v1.Container
    image: gcr.io/...
    env:
    - name: FOO
      value: bar
    - name: HELLO
      value: world
status:
  # This is a copy of metadata from the container image or grafeas, indicating
  # the provenance of the revision, annotated on the container
  imageSource:
    archive|manifest|repository: ...
    context: ...
  conditions:
  - type: Ready
    status: True
  - type: BuildComplete
    status: True
  # other conditions indicating build failure details, if applicable

Rollout operations in the route are identical to the pre-built container examples.

Also analogous is creating the service from scratch with source files - in this case, the source would be provided to the configuration's inlined build spec, which would initiate a new container build, and the creation of a new revision. If the first build fails LatestReadyRevisionName will be entirely unset until a Revision is created which can become ready.

5) Deploy a Function

Scenario: User deploys a new function revision to an existing service

$ elafros deploy --function index --service my-function
  Deploying function to service [my-function]:
✓ Uploading     [=================]
✓ Detected [node-8-9-4] runtime
✓ Building
✓ Starting
✓ Promoting
  Done.
  Deployed to https://my-function.default.mydomain.com

Steps:

  • Create/Update a service, specifying source code and function details.

Results:

  • The Configuration is created/updated, which generates a new revision based on the template build and spec which can be rolled out per previous examples

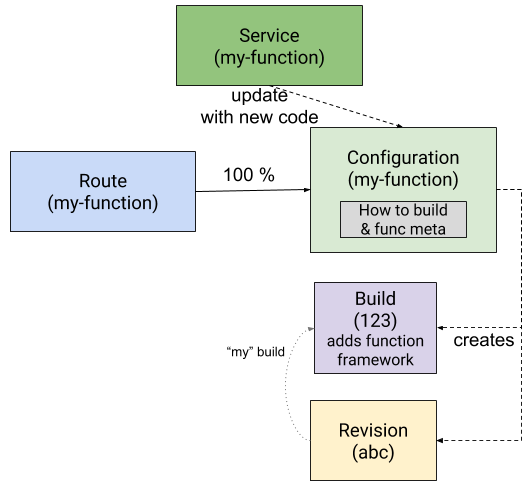

Build Function

Previous examples illustrated creating and deploying revisions in the context of application containers. Functions are created and deployed in the same manner (in particular, as containers which respond to HTTP). In the build phase of the deployment, additional function metadata may be taken into account in order to wrap the supplied code in a language-specific functions framework which translates from HTTP to language-native constructs.

Functions are configured with a language-specific entryPoint. The entryPoint may be provided as an argument to the build template, if language-native autodetection is insufficient. By convention, a type metadata label may also be added that designates revisions as a function, supporting listing revisions by type; there is no change to the system behavior based on type.

Note that a function may be connected to one or more event sources via Bindings in the Eventing API; the binding of events to functions is not a core function of the compute API.

Creating the service with build and function metadata:

POST /apis/elafros.dev/v1alpha1/namespaces/default/services

apiVersion: elafros.dev/v1alpha1
kind: Service
metadata:
  name: my-function
spec:
  runLatest:
    configuration:
      build:  # elafros.dev/v1alpha1.BuildTemplateSpec
        source:
          # oneof git|gcs|custom
          git:
            url: https://...
            commit: ...
        template:  # defines build template
          name: go_1_9_fn  # function builder
          namespace: build-templates
          arguments:
          - name: _IMAGE
            value: gcr.io/...  # destination for image
          - name: _ENTRY_POINT
            value: index  # language dependent, function-only entrypoint

      revisionTemplate:  # template for building Revision
        metadata:
          labels:
            # One-of "function" or "app", convention for CLI/UI clients to list/select
            elafros.dev/type: "function"
        spec:
          container:  # k8s core.v1.Container
            image: gcr.io/...  # Promise of a future build. Same as supplied in
                               # build.template.arguments[_IMAGE]
            env:
            - name: FOO
              value: bar
            - name: HELLO
              value: world

          # serializes requests for function. Default value for functions
          concurrencyModel: SingleThreaded
          # max time allowed to respond to request
          timeoutSeconds: 20

Upon creating or updating the service, values are copied to the configuration, which causes a new Revision to be created per the previous examples. Rollout operations are also identical to the previous examples.
