Introduction

  • It causes chaos to disrupt state of node by restarting it.
  • It tests deployment sanity (replica availability & uninterrupted service) and recovery workflows of the application pod

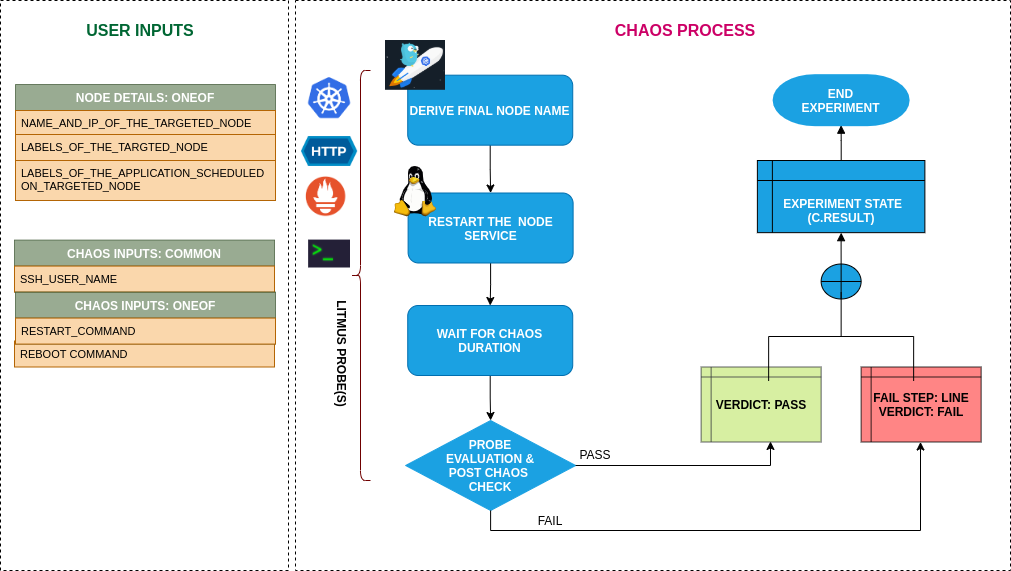

!!! tip "Scenario: Restart the node"
Node Restart

Uses

??? info "View the uses of the experiment" coming soon

Prerequisites

??? info "Verify the prerequisites" - Ensure that Kubernetes Version > 1.16 - Ensure that the Litmus Chaos Operator is running by executing kubectl get pods in operator namespace (typically, litmus).If not, install from here - Ensure that the node-restart experiment resource is available in the cluster by executing kubectl get chaosexperiments in the desired namespace. If not, install from here - Create a Kubernetes secret named id-rsa where the experiment will run, where its contents will be the private SSH key for SSH_USER used to connect to the node that hosts the target pod in the secret field ssh-privatekey. A sample secret is shown below:

    ```yaml
    apiVersion: v1
    kind: Secret
    metadata:
      name: id-rsa
    type: kubernetes.io/ssh-auth
    stringData:
      ssh-privatekey: |-
        # SSH private key for ssh contained here
    ```

Creating the RSA key pair for remote SSH access should be a trivial exercise for those who are already familiar with an ssh client, which entails the following actions:

1. Create a new key pair and store the keys in a file named `my-id-rsa-key` and `my-id-rsa-key.pub` for the private and public keys respectively:
    ```
    ssh-keygen -f ~/my-id-rsa-key -t rsa -b 4096
    ```
2. For each node available, run this following command to copy the public key of `my-id-rsa-key`:
    ```
    ssh-copy-id -i my-id-rsa-key user@node
    ```

For further details, please check this [documentation](https://www.ssh.com/ssh/keygen/). Once you have copied the public key to all nodes and created the secret described earlier, you are ready to start your experiment.

Default Validations

??? info "View the default validations" The target nodes should be in ready state before and after chaos injection.

Minimal RBAC configuration example (optional)

!!! tip "NOTE"
If you are using this experiment as part of a litmus workflow scheduled constructed & executed from chaos-center, then you may be making use of the litmus-admin RBAC, which is pre installed in the cluster as part of the agent setup.

??? note "View the Minimal RBAC permissions"

    [embedmd]:# (https://raw.githubusercontent.com/litmuschaos/chaos-charts/master/charts/generic/node-restart/rbac.yaml yaml)
    ```yaml
    ---
    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: node-restart-sa
      namespace: default
      labels:
        name: node-restart-sa
        app.kubernetes.io/part-of: litmus
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRole
    metadata:
      name: node-restart-sa
      labels:
        name: node-restart-sa
        app.kubernetes.io/part-of: litmus
    rules:
    - apiGroups: [""]
      resources: ["pods","events","secrets"]
      verbs: ["create","list","get","patch","update","delete","deletecollection"]
    - apiGroups: [""]
      resources: ["pods/exec","pods/log"]
      verbs: ["create","list","get"]
    - apiGroups: ["batch"]
      resources: ["jobs"]
      verbs: ["create","list","get","delete","deletecollection"]
    - apiGroups: ["litmuschaos.io"]
      resources: ["chaosengines","chaosexperiments","chaosresults"]
      verbs: ["create","list","get","patch","update"]
    - apiGroups: [""]
      resources: ["nodes"]
      verbs: ["get","list"]
    ---
    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRoleBinding
    metadata:
      name: node-restart-sa
      labels:
        name: node-restart-sa
        app.kubernetes.io/part-of: litmus
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: ClusterRole
      name: node-restart-sa
    subjects:
    - kind: ServiceAccount
      name: node-restart-sa
      namespace: default
    ```

    Use this sample RBAC manifest to create a chaosServiceAccount in the desired (app) namespace. This example consists of the minimum necessary role permissions to execute the experiment.

Experiment tunables

??? info "check the experiment tunables"

Mandatory Fields

<table>
  <tr>
    <th> Variables </th>
    <th> Description </th>
    <th> Notes </th>
  </tr>
  <tr>
    <td> TARGET_NODE </td>
    <td> Name of target node, subjected to chaos. If not provided it will select the random node</td>
    <td> </td>
  </tr>
  <tr>
    <td> NODE_LABEL </td>
    <td> It contains node label, which will be used to filter the target node if TARGET_NODE ENV is not set </td>
    <td>It is mutually exclusive with the TARGET_NODE ENV. If both are provided then it will use the TARGET_NODE</td>
  </tr>
</table>

<h2>Optional Fields</h2>

<table>
  <tr>
    <th> Variables </th>
    <th> Description </th>
    <th> Notes </th>
  </tr>
   <tr>
    <td> LIB_IMAGE  </td>
    <td> The image used to restart the node </td>
    <td> Defaults to <code>litmuschaos/go-runner:latest</code> </td>
  </tr>
  <tr>
    <td> SSH_USER  </td>
    <td> name of ssh user </td>
    <td> Defaults to <code>root</code> </td>
  </tr>
  <tr>
    <td> TARGET_NODE_IP </td>
    <td> Internal IP of the target node, subjected to chaos. If not provided, the experiment will lookup the node IP of the <code>TARGET_NODE</code> node</td>
    <td> Defaults to empty </td>
  </tr>
  <tr>
    <td> REBOOT_COMMAND  </td>
    <td> Command used for reboot </td>
    <td> Defaults to <code>sudo systemctl reboot</code> </td>
  </tr>
  <tr>
    <td> TOTAL_CHAOS_DURATION </td>
    <td> The time duration for chaos insertion (sec) </td>
    <td> Defaults to 30s </td>
  </tr>
  <tr>
    <td> RAMP_TIME </td>
    <td> Period to wait before and after injection of chaos in sec </td>
    <td> </td>
  </tr>
  <tr>
    <td> LIB  </td>
    <td> The chaos lib used to inject the chaos </td>
    <td> Defaults to </code>litmus</code> supported litmus only </td>
  </tr>
</table>

Experiment Examples

Common and Node specific tunables

Refer the common attributes and Node specific tunable to tune the common tunables for all experiments and node specific tunables.

Reboot Command

It defines the command used to restart the targeted node. It can be tuned via REBOOT_COMMAND ENV.

Use the following example to tune this:

# provide the reboot command
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  chaosServiceAccount: node-restart-sa
  experiments:
  - name: node-restart
    spec:
      components:
        env:
        # command used for the reboot
        - name: REBOOT_COMMAND
          value: 'sudo systemctl reboot'
        # name of the target node
        - name: TARGET_NODE
          value: 'node01'
        - name: TOTAL_CHAOS_DURATION
          VALUE: '60'

SSH User

It defines the name of the SSH user for the targeted node. It can be tuned via SSH_USER ENV.

Use the following example to tune this:

# name of the ssh user used to ssh into targeted node
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  chaosServiceAccount: node-restart-sa
  experiments:
  - name: node-restart
    spec:
      components:
        env:
        # name of the ssh user
        - name: SSH_USER
          value: 'root'
        # name of the target node
        - name: TARGET_NODE
          value: 'node01'
        - name: TOTAL_CHAOS_DURATION
          VALUE: '60'

Target Node Internal IP

It defines the internal IP of the targeted node. It is an optional field, if internal IP is not provided then it will derive the internal IP of the targeted node. It can be tuned via TARGET_NODE_IP ENV.

Use the following example to tune this:

# internal ip of the targeted node
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  chaosServiceAccount: node-restart-sa
  experiments:
  - name: node-restart
    spec:
      components:
        env:
        # internal ip of the targeted node
        - name: TARGET_NODE_IP
          value: '<ip of node01>'
        # name of the target node
        - name: TARGET_NODE
          value: 'node01'
        - name: TOTAL_CHAOS_DURATION
          VALUE: '60'
